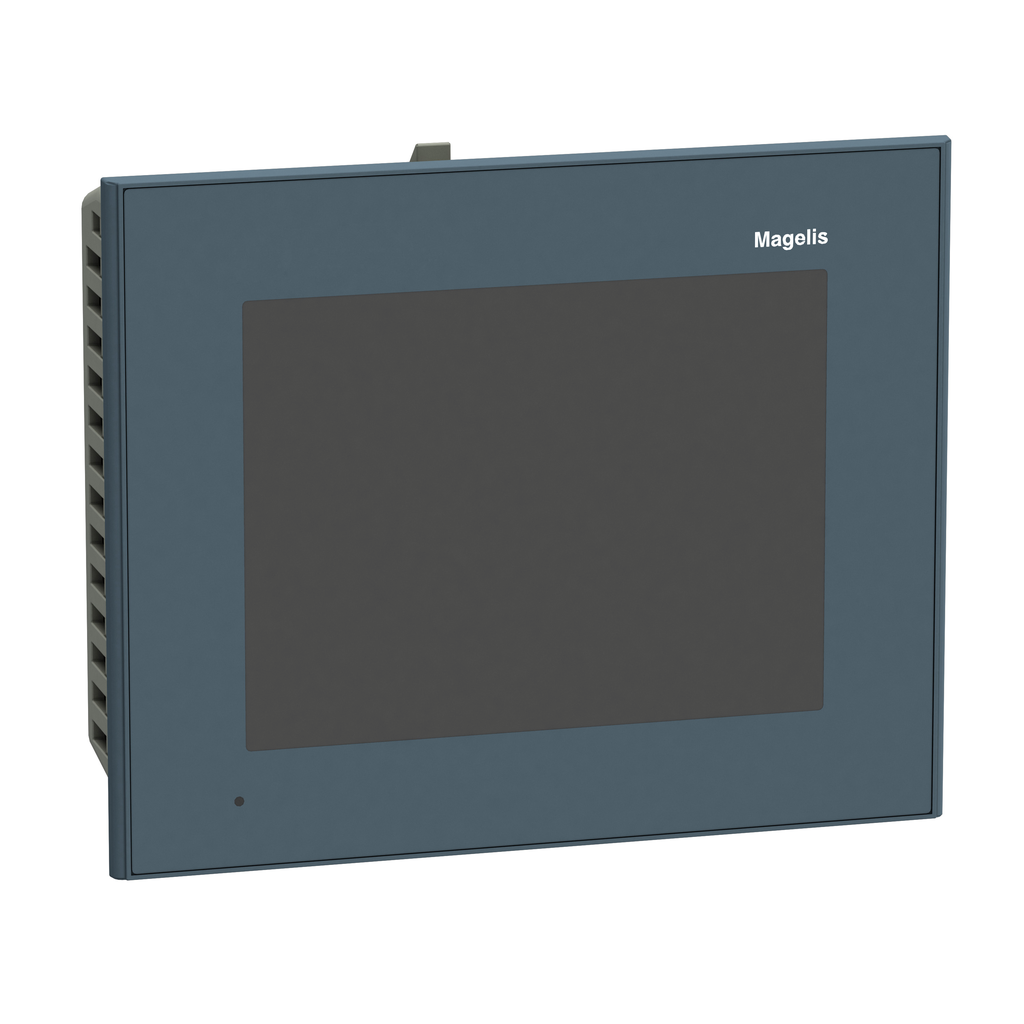

HMIGTO2310FCW - Advanced touchscreen panel, Harmony GTO, 5.7 Color Touch QVGA TFT, coated display without logo

HMIGTO2310FCW

Advanced touchscreen panel, Harmony GTO, 5.7 Color Touch QVGA TFT, coated display without logo

Add to Quote Catalogue

Specifications

Range Of Product	Harmony GTO
Display Size	5.7 inch
Supply	external source
Battery Type	lithium internal RAM 100 days 5 day(s) 10 year(s)
Display Colour	65536 colours
Product Or Component Type	advanced touchscreen panel
Data Backed Up	512 kB internal RAM SRAM)
Height	137 mm
Local Signalling	status LED green, steady offline status LED green, steady operating status LED orange, flashing software starting up status LED red, steady power supply (ON) status LED clear, faded power supply (OFF) COM2 LED yellow, steady data is being transmitted COM2 LED yellow, faded no data transmission SD card LED green, steady card is inserted SD card LED green, faded card is not inserted or is not being accessed
Supply Voltage Limits	19.2-28.8 V
Touch Sensitive Zone	1024 x 1024
Type Of Cooling	natural convection
Inrush Current	30 A
Integrated Connection Type	COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB 2.0 type mini B
Touch Panel	resistive film, 1000000 cycles
Software Designation	Vijeo Designer configuration software >= V6.1
Product Mounting	flush mounting
Brightness	16 levels by touch panel 16 levels by software
Enclosure Material	PPT
Display Resolution	320 x 240 pixels QVGA
Width	169.5 mm
Display Type	backlit colour TFT LCD
Front Material	PPT
Depth	59.5 mm
Maximum Power Consumption In W	6.5 W when power is not supplied to external devices 4.5 W when backlight is OFF 5 W when backlight is dimmed 10.5 W
Downloadable Protocols	Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Schneider Electric Modicon Modbus TCP
Terminal Type	touchscreen display
[Us] Rated Supply Voltage	24 V DC
Net Weight	0.8 kg
Data Storage Equipment	SD card, <= 32 GB SDHC card, <= 32 GB
Fixing Mode	by 4 screw clamps
Character Font	Japanese (ANK, Kanji) Chinese (simplified Chinese) Taiwanese (traditional Chinese) ASCII (European characters) Korean
Memory Description	flash EPROM, 96 MB
Backlight Lifespan	50000 hours white 25 °C
Eu Rohs Directive	Not applicable, out of EU RoHS legal scope
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications	C-tick KCC CE cULus UKCA UKEX
Ambient Air Temperature For Operation	0-55 °C
Ambient Air Temperature For Storage	-20-60 °C
Standards	EN 61131-2 UL 508 IEC 61000-6-2
Nema Degree Of Protection	NEMA 4X front panel (indoor use)
Relative Humidity	10-90 % without condensation
Resistance To Electrostatic Discharge	6 kV contact discharge IEC 61000-4-2 level 3
Operating Altitude	< 6561.68 ft (2000 m)
Shock Resistance	147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
Vibration Resistance	3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
Ip Degree Of Protection	IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel)
