HMIGK2310

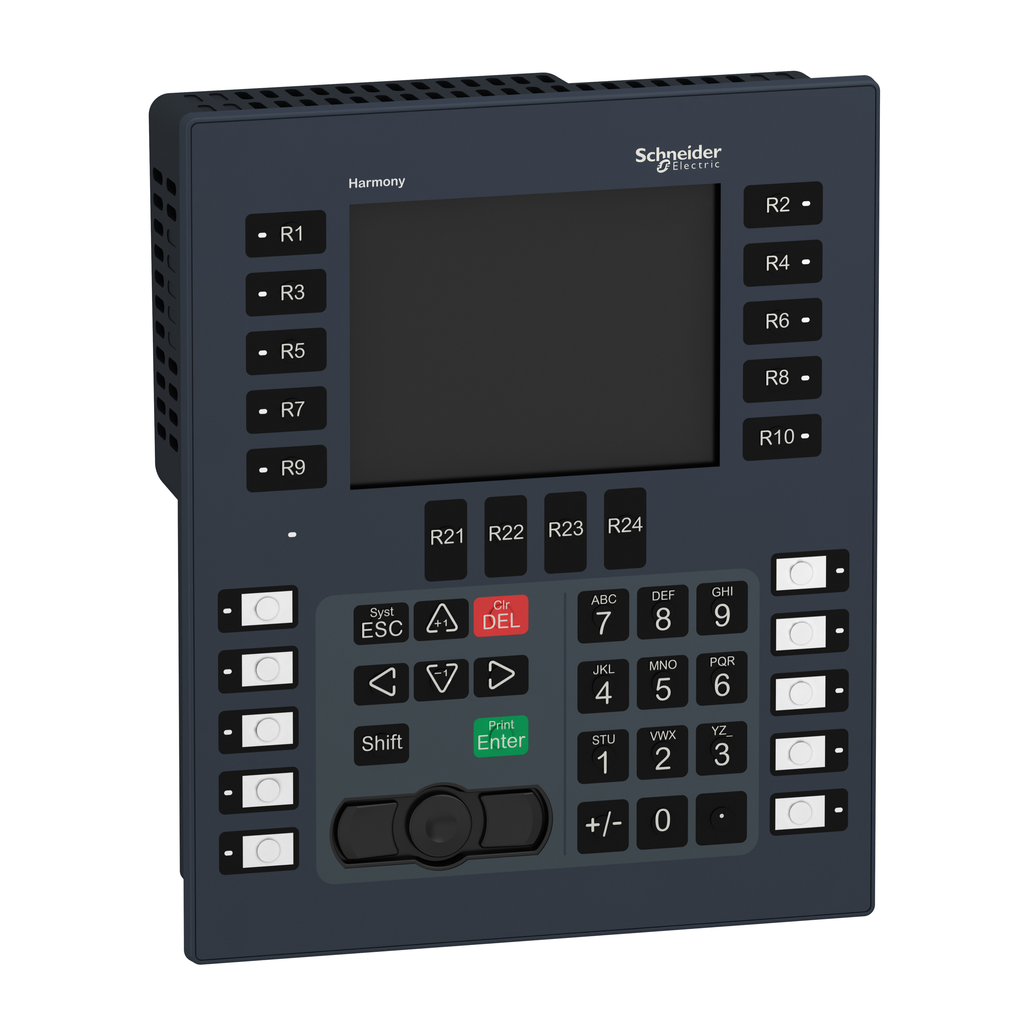

Keypad-touchscreen panel color - 320 x 240 pixels QVGA- 5.7" - TFT LCD
This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 14 dynamic function keys, 10 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony GK |
|---|---|
| Supply | external source |
| Product Or Component Type | touchscreen panel with keypad |
| Operating System | Harmony |
| Processor Name | CPU RISC |
| Display Size | 5.7 inch |
| Display Colour | 65536 colours |
| Front Material | aluminium alloy |
| Number Of Pages | limited by internal memory capacity |
| Brightness | 16 levels via touch panel |
| Height | 265 mm |
| Touch Sensitive Zone | 1024 x 1024 |
| Inrush Current | 30 A |
| Number Of Service Keys | 8 |
| Fixing Mode | by 10 spring clips |
| Power Consumption In W | 7.7 W |
| Display Resolution | 320 x 240 pixels QVGA |
| Marking | CE |
| Processor Frequency | 333 MHz |
| Net Weight | 1.8 kg |
| Number Of Dynamic Function Keys Symb | 14 with LED |
| Backlight Lifespan | 50000 hours |
| Software Type | configuration software |
| [Us] Rated Supply Voltage | 24 V DC |
| Touch Panel | analogue |
| Mounting Mode | flush mounting |
| Supply Voltage Limits | 19.2-28.8 V |
| Cut-Out Dimensions | 209 (+/- 0.4) x 243 (+/- 0.4) mm |
| Software Designation | Vijeo Designer |
| Memory Type |
|
| Integrated Connection Type |
|
| Local Signalling | for normal operation or backlighting faulty 1 LED (green or orange) |
| Number Of Alphanumeric Keys | 12 |
| Realtime Clock | built-in |
| Enclosure Material | PPT |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Width | 220.3 mm |
| Display Type | backlit colour TFT LCD |
| Depth | 70 mm |
| Number Of Static Function Keys | 10 with LED and labels |
| Downloadable Protocols |
|
| Character Font |
|
| Memory Description |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-55 °C |
| Standards |
|
| Immunity To Microbreaks | 5 ms |
| Electromagnetic Compatibility |
|
| Vibration Resistance |
|
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -20-60 °C |
| Nema Degree Of Protection | NEMA 4X front panel (indoor use) |
| Relative Humidity | 10-90 % without condensation |
| Operating Altitude | < 6561.68 ft (2000 m) |
