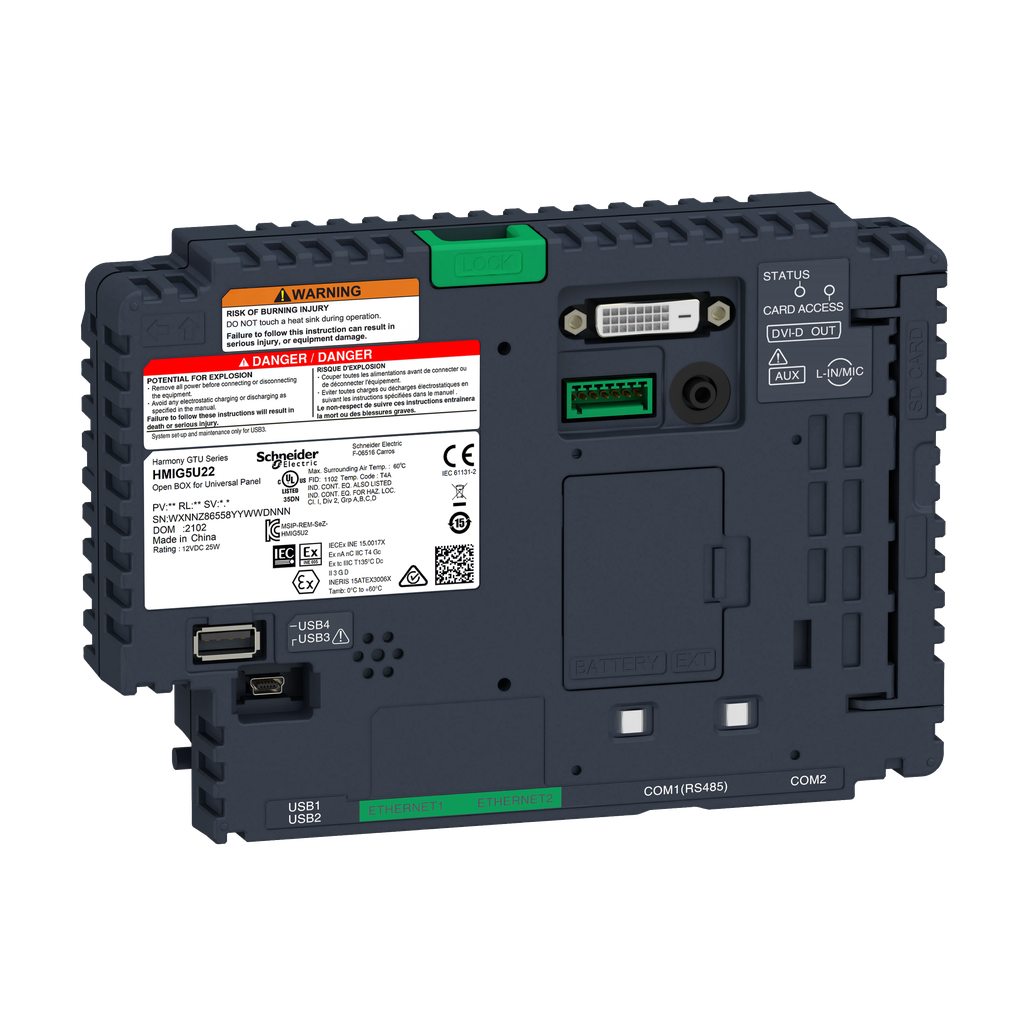

base unit, Harmony GTU, Open BOX Windows 10, Universal Panel, with HMI software installed
This product is part of the Pro-face SP5000 range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is not installed with HMI software. This product is certified by ATEX, IECEx, Ex CCC, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. As a flagship model, SP5000 series, "Smart Portal", is available. SP5000 series offers unprecedented solutions for utilization of increasingly sophisticated information.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony GTU |
|---|---|
| [Us] Rated Supply Voltage | 12...24 V DC power supply |
| Product Or Component Type | base unit |
| Range Compatibility | Harmony GTU |
| Device Short Name | Open Box |
| Height | 131 mm |
| Software Package |
|
| Communication Port Protocol |
|
| Number Of Slots |
|
| Local Signalling | , multi-colour LEDstatus |
| Net Weight | 0.9 kg |
| Depth | 45 mm |
| Memory Description |
|
| Processor Name | Intel X86 1.33 GHz |
| Integrated Connection Type |
|
| Realtime Clock | built-in |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Width | 188 mm |
| Type Of Cooling | natural convection |
| Data Storage Equipment | 32 GB CFast card |
| Operating System | Windows 10 IoT Enterprise 32bit |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards |
|
| Product Certifications |
|
| Electromagnetic Compatibility | electrostatic discharge immunity testlevel 3 EN/IEC 61000-4-2 |
| Vibration Resistance |
|
| Shock Resistance | 147 m/s²EN/IEC 61131-2 |
| Pollution Degree | 2 EN 61131-2 Ed.3 |
| Ambient Air Temperature For Storage | -20-60 °C |
| Relative Humidity | 10-90 % non-condensing |
| Operating Altitude | 2000 |
