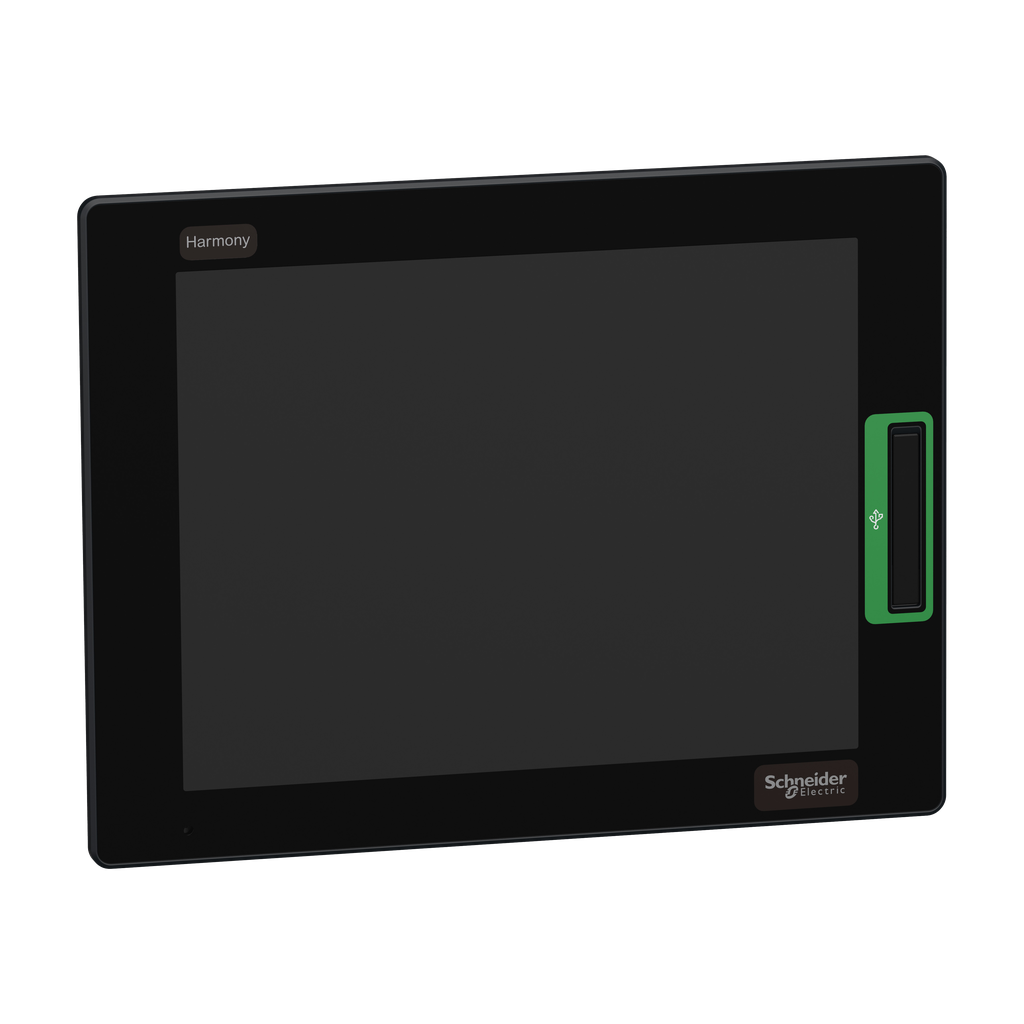

12.1 Industrial FPM, Harmony FP6, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
This industrial flat panel monitor belongs to the Schneider Electric's Harmony HMI FP6 range. This 2 point Analog multi-touch HMIFP6 display has a glass-top surface design with backlight service life of 50,000 hours. HMIFP6600TMD is a 12.1 inch screen of 16 million colors and 1,024 × 768 pixel resolution (XGA). The modularity of the FP6 display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 12 and Type 13 degree of protection. The power consumption when FP6 display is paired with Modular Boxes is 17.6Wmax. Its dimensions are 315mm (width) x 241mm (height) x 67.5mm (depth) and weighs 3.60Kg. Harmony FP6 industrial Flat Panel Monitor caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201, UL 121201, and CSA C22.2 No. 61010-2-201, CSA C22.2 No. 213, IECEx/ATEX for use in Zone 2 gas/Zone 22 dust. This display when combined with any of the Harmony P6, Harmony iPCs, or third-party Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Harmony FP6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony FP6 |
|---|---|
| Product Or Component Type | touch panel screen |
| Operating System | Windows 10 version 1809) |
| Power Consumption In W | 17.6 W |
| Height | 241 mm |
| Pixel Resolution | 1024 x 768 |
| [Us] Rated Supply Voltage | 24 V DC |
| Inrush Current | 30 A |
| Display Resolution | 1024 x 768 pixels XGA |
| Net Weight | 3.6 kg |
| Backlight Lifespan | 50000 hours at 25 °C |
| Touch Panel | multi touch analogue resistive |
| Cut-Out Dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm |
| Display Size | 12.1 inch |
| Integrated Connection Type |
|
| Display Colour | 16 million colours |
| Width | 315 mm |
| Display Type |
|
| Depth | 67.5 mm |
| Type Of Cooling | natural |
| Aspect Ratio | 4:3 |
| Device Mounting |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Standards |
|
| Ambient Air Temperature For Operation | 0-55 °C |
| Product Certifications |
|
| Vibration Resistance |
|
| Shock Resistance |
|
| Electromagnetic Compatibility |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Storage | -20-60 °C |
| Ip Degree Of Protection |
|
| Operating Altitude | 6561.68 ft (2000 m) |
