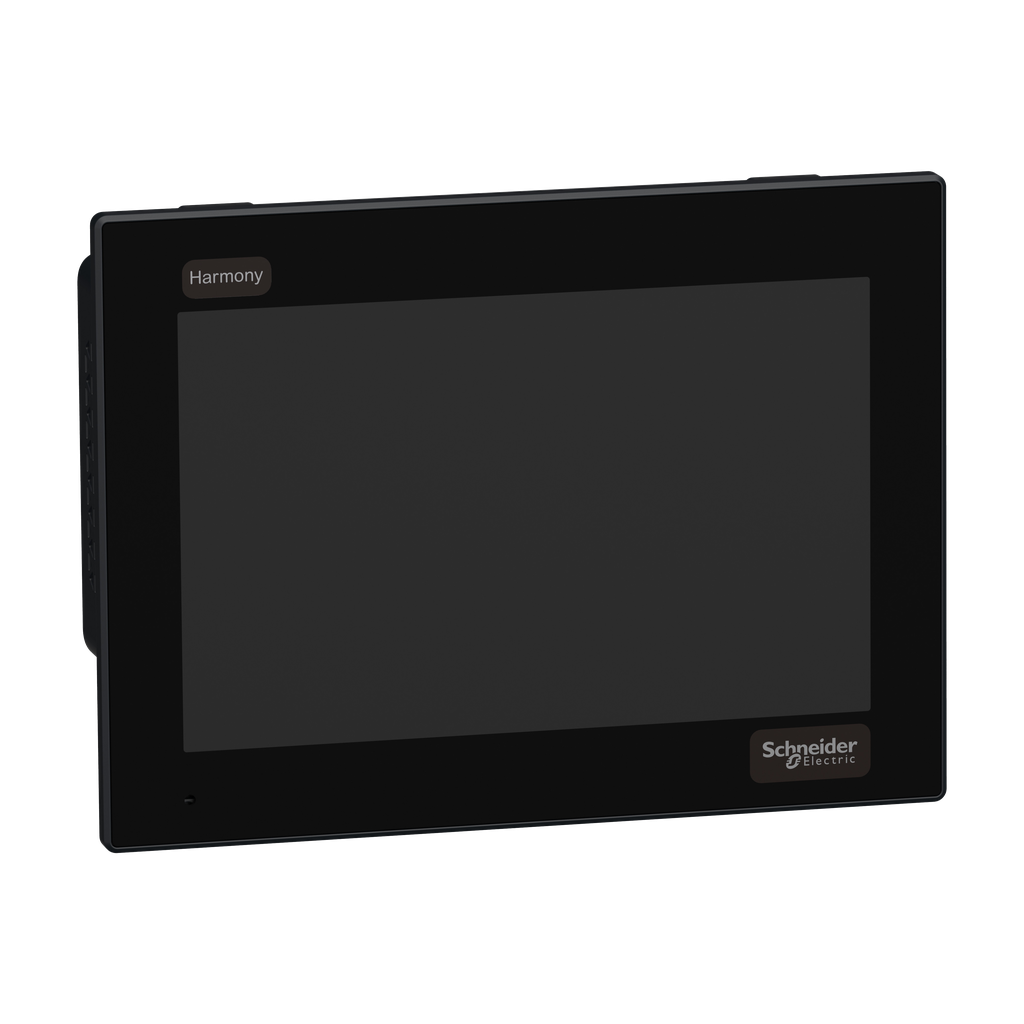

This industrial flat panel monitor belongs to the Schneider Electric's Harmony HMI FP6 range. This 2 point multi-touch projected capacitive HMIFP6 display has a glass-top surface design with backlight service life of 50,000 hours. HMIFP6500WCD is a 10.1 inch wide screen of 16 million colors and 1,280 × 800 pixel resolution (WXGA). Three touch mode configurations are available namely Standard mode, Glove mode, and Water detection mode. The modularity of the FP6 display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 12 and Type 13 degree of protection. The power consumption when this FP6 display is paired with Modular Boxes is 12.4Wmax. Its dimensions are 268.5mm (width) x 198.5mm (height) x 67.5mm (depth) and weighs 3.20Kg. Harmony FP6 industrial Flat Panel Monitor caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201, UL 121201, and CSA C22.2 No. 61010-2-201, CSA C22.2 No. 213, IECEx/ATEX for use in Zone 2 gas/Zone 22 dust. This display when combined with any of the Harmony P6, Harmony iPCs, or third-party Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Harmony FP6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony FP6 |
---|---|
Product Or Component Type | touch panel screen |
Operating System | Windows 10 IoT Enterprise 2019 LTSC) |
Power Consumption In W | 12.4 W |
Height | 198.5 mm |
Touch Panel | multi-touch projected capactive technology (PCT) |
Pixel Resolution | 1280 x 800 |
Cut-Out Dimensions | 255 (+ 1/- 0) x 185 (+ 1/- 0) mm |
[Us] Rated Supply Voltage | 24 V DC |
Inrush Current | 30 A |
Display Size | 10.1 inch |
Integrated Connection Type |
|
Display Colour | 16 million colours |
Display Resolution | 1280 x 800 pixels WXGA |
Width | 268.5 mm |
Display Type |
|
Depth | 67.5 mm |
Type Of Cooling | natural |
Aspect Ratio | 16:9 |
Net Weight | 3.2 kg |
Device Mounting |
|
Backlight Lifespan | 50000 hours at 25 °C |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Electromagnetic Compatibility |
|
Pollution Degree | 2 |
Ambient Air Temperature For Storage | -20-60 °C |
Standards |
|
Ambient Air Temperature For Operation | 0-55 °C |
Relative Humidity | 10-90 % without condensation |
Ip Degree Of Protection |
|
Product Certifications |
|
Operating Altitude | 6561.68 ft (2000 m) |
Vibration Resistance |
|
Shock Resistance |
|
