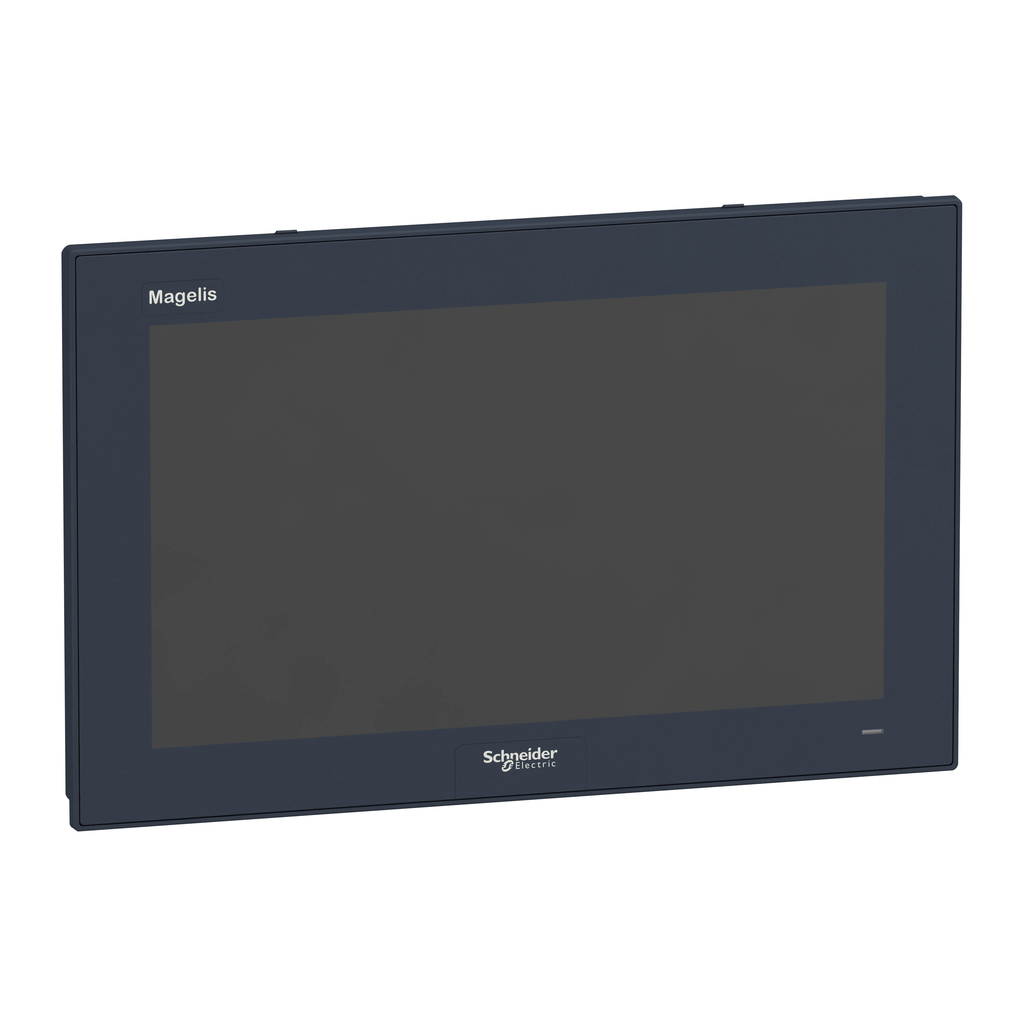

flat screen, Harmony iPC, 15inch wide display, multi touch, for modular box pc
The touch screen display features 15.6inch color TFT LCD display, supports 1366 x 768 pixels WHD FWXGA resolution. It offers horizontal and vertical viewing angle of 150° x 140° and 500 is to 1 contrast ratio. The touch screen display is designed with multi-touch projected capacitive technology (PCT). This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66 and NEMA 4X rated product. Its dimensions are 419.7mm (width) x 28mm (depth) x 269mm (height). It weighs 4.3kg. It is suitable for digital plants and infrastructure operations, performance and repetitive machine applications. This product is certified by IEC-Ex, C-Tick, EAC, Marine GL Bridge, ATEX and CE. It meets CSA C22.2 No 142, UL 6110-2-201 and Class I div. 2 ANSI/ISA 12-12-01 standards. This modular display is compatible with HMIBM Box PC and HMIDAD Display Adapter. It supports flush mount for indoor installation. Harmony iPC and edge box provide solutions to IIoT and automation applications that need to run on Windows or Linux operating systems in industrial environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony iPC |
|---|---|
| Product Or Component Type | flat screen |
| Terminal Type | touchscreen display |
| Product Compatibility | Modular Box PC |
| Device Mounting | flush |
| Power Consumption In W |
|
| Height | 269 mm |
| Pixel Resolution | 1366 x 768 |
| [Us] Rated Supply Voltage |
|
| Inrush Current | 8.9 A |
| Touchscreen Resolution | 4096 x 4096 |
| Luminance | 300 cd/m² |
| Net Weight | 4.3 kg |
| Depth |
|
| Backlight Lifespan | 50000 hours 25 °C |
| View Angle Horizontal X Vertical | 150 x 140° |
| Function Available | operate with water on screen |
| Supply Voltage Limits | 18-36 V |
| Display Type |
|
| Contrast Ratio | 500:1 |
| Touch Panel | multi-touch projected capactive technology (PCT) |
| Display Size | 15.6 inch |
| Display Resolution | 1366 x 768 pixels WHD FWXGA |
| Local Signalling | status LED |
| Display Colour | 16777216 colors |
| Width | 419.7 mm |
| Aspect Ratio | 16:9 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-55 °C |
| Standards |
|
| Product Certifications |
|
| Ip Degree Of Protection | IP66 |
| Vibration Resistance |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Storage | -30-70 °C |
| Relative Humidity | 10-95 % non-condensing |
| Nema Degree Of Protection | NEMA 4X |
| Operating Altitude | 6561.68 ft (2000 m) |
