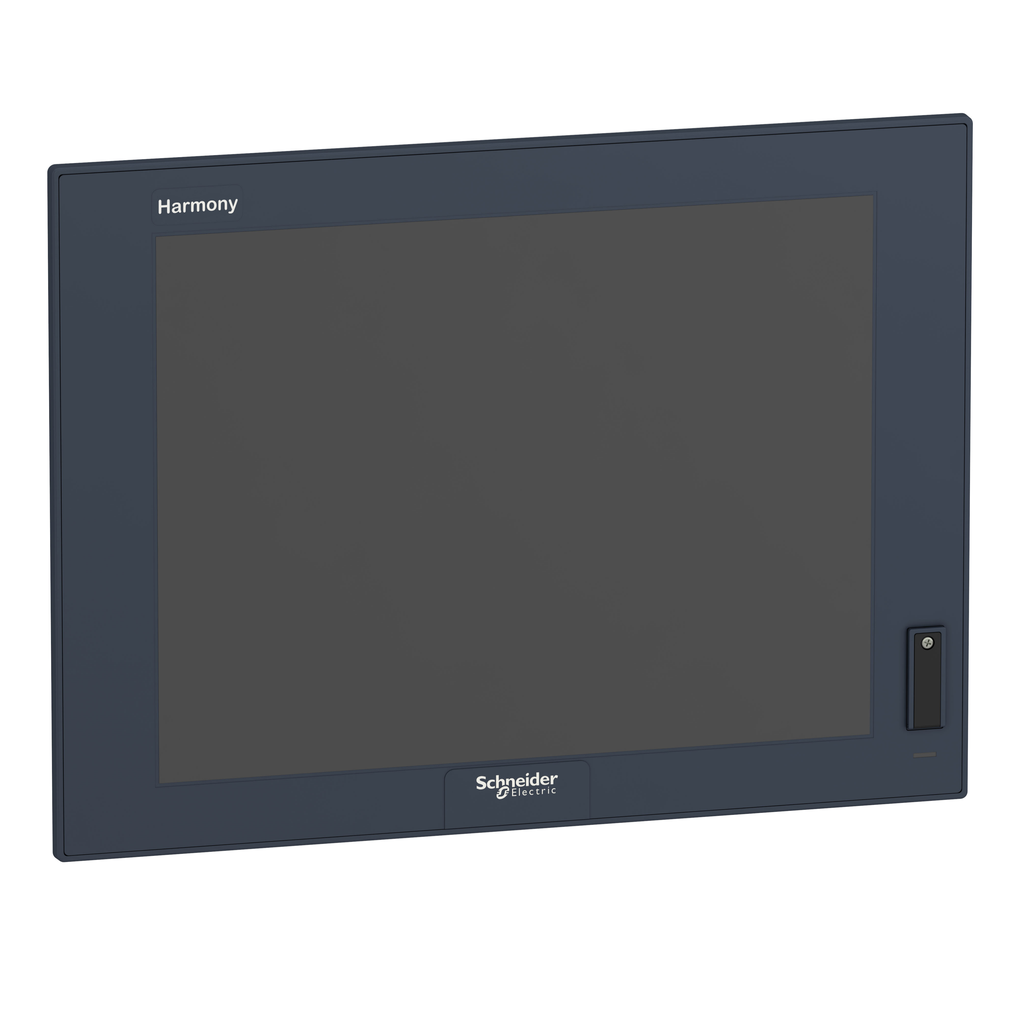

flat screen, Harmony iPC, 15inch wide display, single touch, for modular box pc
This product is part of the Harmony iPC range, an offer of Industrial PC, Edge Box and Display. The touchscreen display features 15inch LED, colour TFT LCD display and supports 1024 x 768 pixels XGA resolution. It is a flat touchscreen display with a contrast ratio of 500/1 and a view angle of 140 x 115°. It supports 16777216 colours and 300cd/m² luminance with 50000 hours of backlight lifespan at 25°C. It is an IP66 and NEMA 4X rated product. Its dimensions are 390.7mm (width) x 28mm (depth) x 290mm (height) and weighs 4.2kg. This product is certified by ATEX, CE, IEC, C-Tick, GL and EAC. It meets Class I division 2 CSA C22.2 No 213, CSA C22.2 No 142, UL 6110-2-201 and Class I division 2 ANSI/ISA 12-12-01 standards. Harmony iPCs (formerly known as Magelis iPC) and Edge Box run at the Edge Control level of EcoStruxure, the Schneider Electric IIoT architecture. They enable secured communication from shop floor to IT. They offer smart application design and engineering to leverage asset performance, with end-to-end cybersecurity.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony iPC |
|---|---|
| Product Or Component Type | flat screen |
| Terminal Type | touchscreen display |
| Product Compatibility | Modular Box PC |
| Device Mounting | flush |
| Power Consumption In W |
|
| Height | 290 mm |
| Pixel Resolution | 2048 x 2048 |
| [Us] Rated Supply Voltage |
|
| Inrush Current | 8.9 A |
| Touchscreen Resolution | 2048 x 2048 |
| Luminance | 300 cd/m² |
| Net Weight | 4.2 kg |
| Depth |
|
| Backlight Lifespan | 50000 hours 25 °C |
| View Angle Horizontal X Vertical | 140 x 115° |
| Function Available | operate with water on screen |
| Supply Voltage Limits | 18-36 V |
| Display Type |
|
| Contrast Ratio | 500:1 |
| Touch Panel | single touch analogue resistive |
| Display Size | 15 inch |
| Integrated Connection Type | USB 2.0 type A |
| Display Resolution | 1024 x 768 pixels XGA |
| Local Signalling | status LED |
| Display Colour | 16777216 colors |
| Width | 390.7 mm |
| Aspect Ratio | 4:3 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-55 °C |
| Standards |
|
| Product Certifications |
|
| Ip Degree Of Protection | IP66 |
| Vibration Resistance |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Storage | -30-70 °C |
| Relative Humidity | 10-95 % non-condensing |
| Nema Degree Of Protection | NEMA 4X |
| Operating Altitude | 6561.68 ft (2000 m) |
