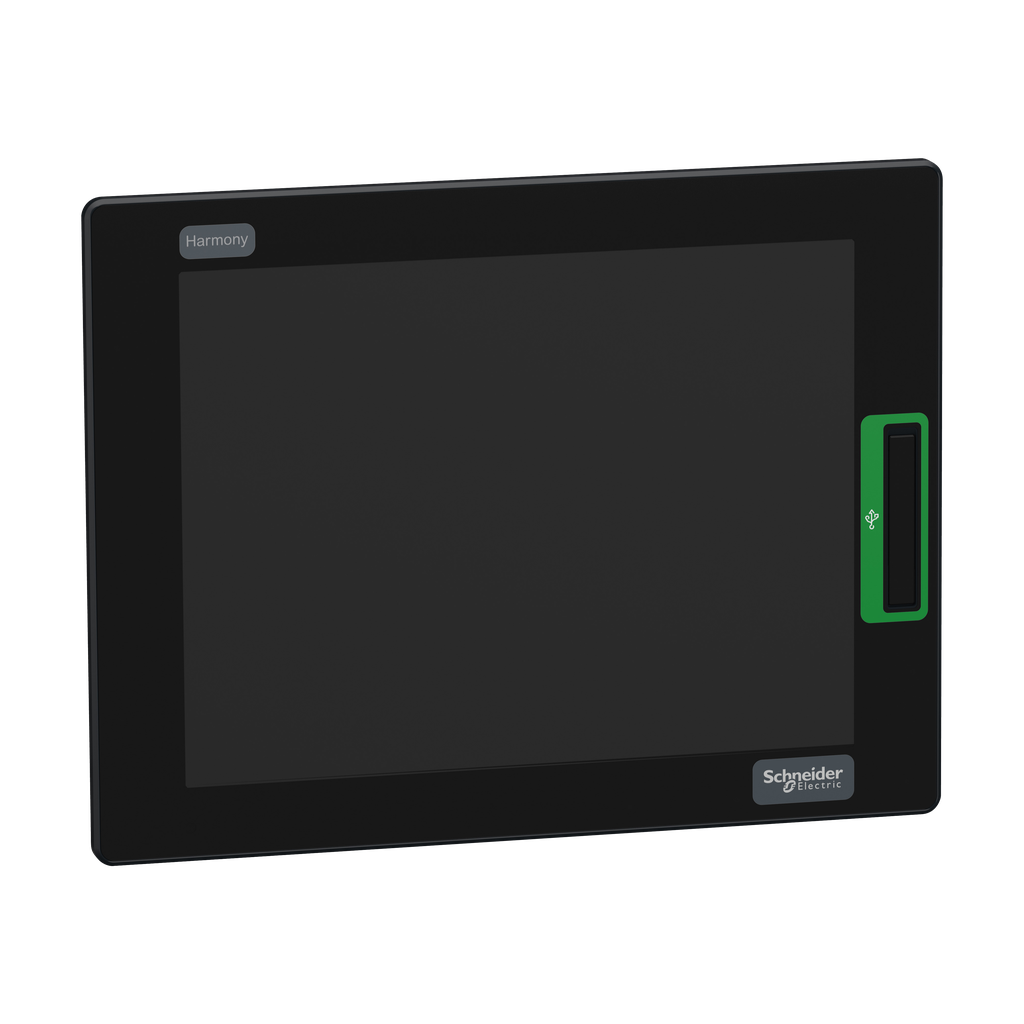

This industrial display belongs to the Schneider Electric's Harmony HMI P6 range. This 2 point multi-touch resistive HMIDM6 display has a plastic overlay surface design with backlight service life of 50,000 hours. This is a 12.1 inch wide screen of 16 million colors and 1024×768 pixel resolution (XGA). There is a 1x USB 2.0 (Type A) port on the front panel with an USB cover. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection. The power consumption when this DM6 display is paired with P6 Advanced Modular Box is 156VAMax. (AC model) and 136WMax. (DC model), with P6 Standard Modular Box is 77VAMax. (AC model) and 68WMax. (DC model). Its dimensions are 315mm (width) x 241mm (height) x 32mm (depth) and weighs 2.40Kg. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. This display when combined with any of the Harmony P6 Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 ]× 100 mount on the rear of Box PC. The stylish Harmony P6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design. The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony P6 |
---|---|
Product Or Component Type | touch panel screen |
Terminal Type | touchscreen display |
Power Consumption In W |
|
Height | 30 mm |
Pixel Resolution | 1024 x 768 |
Inrush Current | 30 A |
Net Weight | 2.4 kg |
Type Of Installation | indoor installation |
Depth | enclosure 32 mm |
Backlight Lifespan | 50000 hours 25 °C |
Cut-Out Dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm |
Display Type |
|
Touch Panel | multi touch analogue resistive |
Display Size | 12.1 inch |
Integrated Connection Type | USB type A USB 2.0 1.5 Mbit/s |
Display Resolution | 1024 x 768 pixels XGA |
Display Colour | 16 million colours |
Width | 241 mm |
Aspect Ratio | 4:3 |
Device Mounting |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Storage Relative Humidity | 10-90 % without condensation |
Ambient Air Temperature For Operation | 0-60 °C |
Standards |
|
Product Certifications |
|
Electromagnetic Compatibility |
|
Shock Resistance |
|
Ip Degree Of Protection |
|
Environmental Characteristic |
|
Vibration Resistance |
|
Pollution Degree | 2 |
Ambient Air Temperature For Storage | -20-60 °C |
Type Of Cooling | natural |
Relative Humidity | 10-90 % without condensation |
Operating Altitude | 6561.68 ft (2000 m) |
