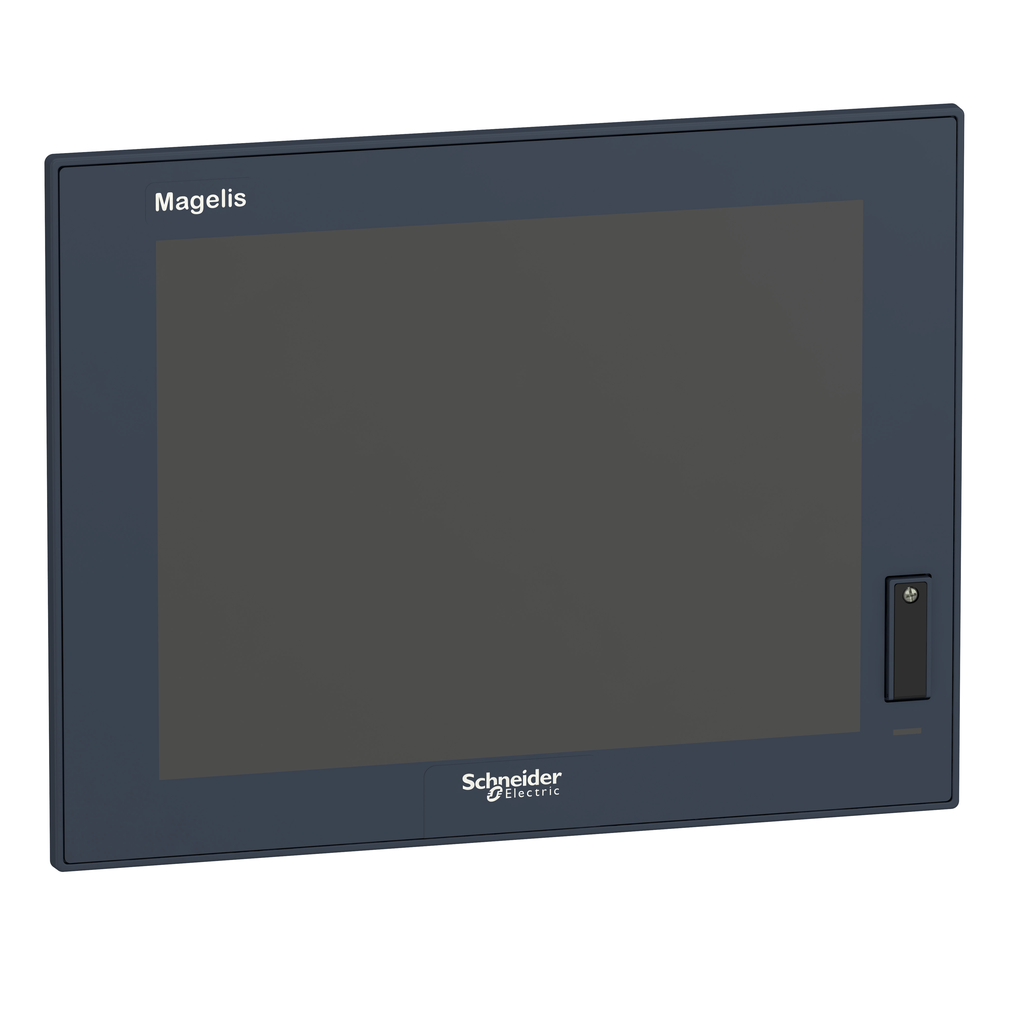

HMIDM6421
Flat screen, Harmony Modular iPC, Display PC 4:3 12" single touch for HMIBM
Specifications
| Range Of Product | Harmony iPC |
|---|---|
| Product Or Component Type | flat screen |
| Terminal Type | touchscreen display |
| Product Compatibility | Modular Box PC |
| Device Mounting | flush |
| Power Consumption In W |
|
| Height | 245.1 mm |
| [Us] Rated Supply Voltage |
|
| Inrush Current | 8.9 A |
| Touchscreen Resolution | 2048 x 2048 |
| Luminance | 300 cd/m² |
| Net Weight | 2.3 kg |
| Depth |
|
| Backlight Lifespan | 50000 hours 25 °C |
| View Angle Horizontal X Vertical | 140 x 115° |
| Function Available | operate with water on screen |
| Supply Voltage Limits | 18-36 V |
| Display Type |
|
| Contrast Ratio | 500:1 |
| Touch Panel | single touch analogue resistive |
| Display Size | 12.1 inch |
| Integrated Connection Type | USB 2.0 type A |
| Display Resolution | 1024 x 768 pixels XGA |
| Local Signalling | status LED |
| Display Colour | 16777216 colors |
| Width | 319.1 mm |
| Aspect Ratio | 4:3 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-55 °C |
| Standards |
|
| Product Certifications |
|
| Ip Degree Of Protection | IP66 |
| Vibration Resistance |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Storage | -30-70 °C |
| Relative Humidity | 10-95 % non-condensing |
| Nema Degree Of Protection | NEMA 4X |
| Operating Altitude | 6561.68 ft (2000 m) |
