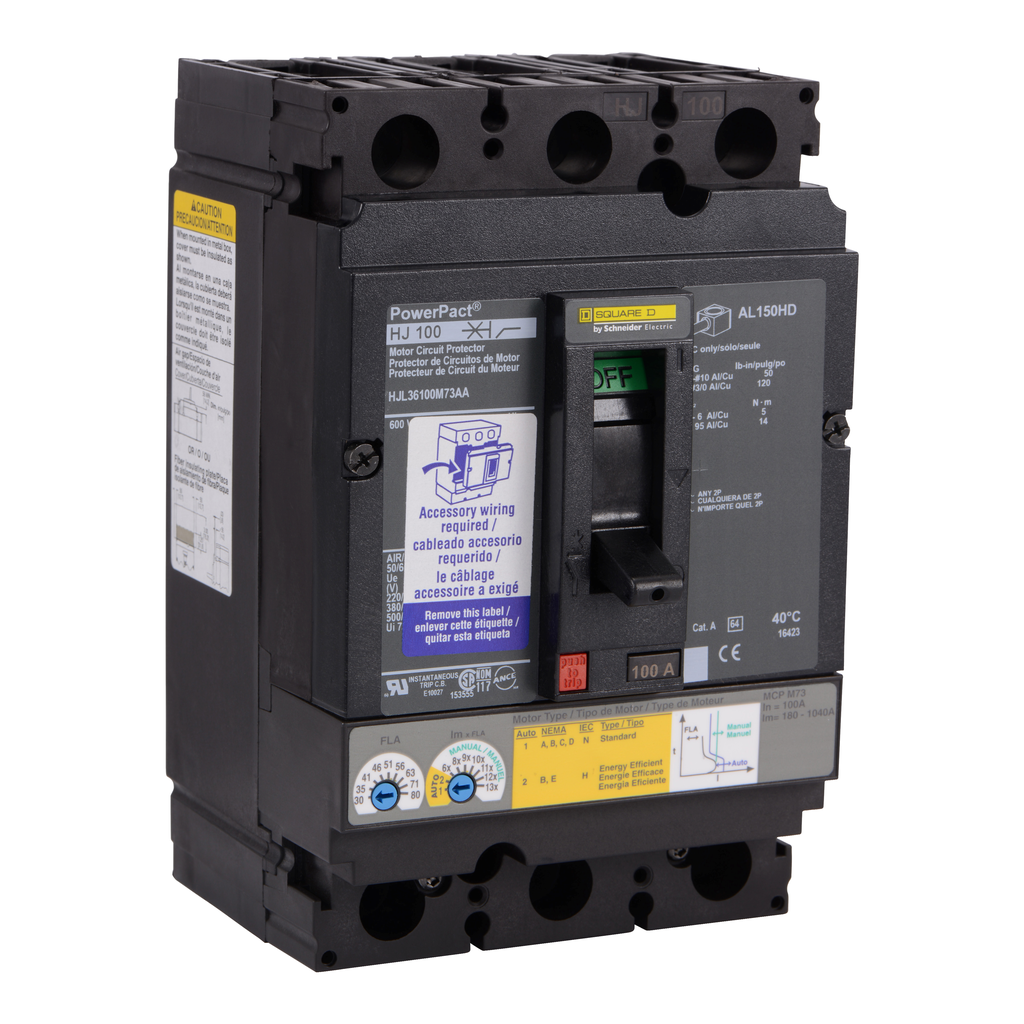

Motor circuit protector, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%, aux switch
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. This unit includes a factory installed 1A/1B auxiliary switch. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | Motor Circuit Protector |
|---|---|
| Product Name | PowerPact H |
| Range | PowerPact |
| Device Application | distribution |
| Warranty | 18 months |
| Mounting Mode | unit mount lug) |
| Network Frequency | 50/60 Hz |
| Terminal Identifier | AL150HD |
| [Ics] Rated Service Breaking Capacity |
|
| Trip Unit Technology | thermal-magnetic |
| [Ith] Conventional Free Air Thermal Current | 30-80 A |
| Height | 163 mm |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| Tightening Torque |
|
| Mounting Support | lug |
| Breaking Capacity Code | J |
| Accessory / Separate Part Type | auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame |
| Magnetic Tripping Current | 180-1040 A |
| Number Of Slots |
|
| Protected Poles Description | 3t |
| Electrical Connection |
|
| Net Weight | 2.2 kg |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Control Type | toggle |
| Wire Stripping Length | 16 mm |
| Utilisation Category | category A |
| Line Rated Current | 100-100 A |
| Continuous Current Rating | 80 % |
| Breaking Capacity |
|
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-2 |
| Communication Interface |
|
| Poles Description | 3P |
| Quantity Per Set | 1 |
| Awg Gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
| Color | Black |
| Width | 104 mm |
| Depth | 86 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2206027EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2206027EN |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -2-70 °C |
| Standards |
|
| Product Certifications |
|
| Ip Degree Of Protection | front cover IP40 IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -50-85 °C |
| Quality Labels | CE |
| Operating Altitude |
|
