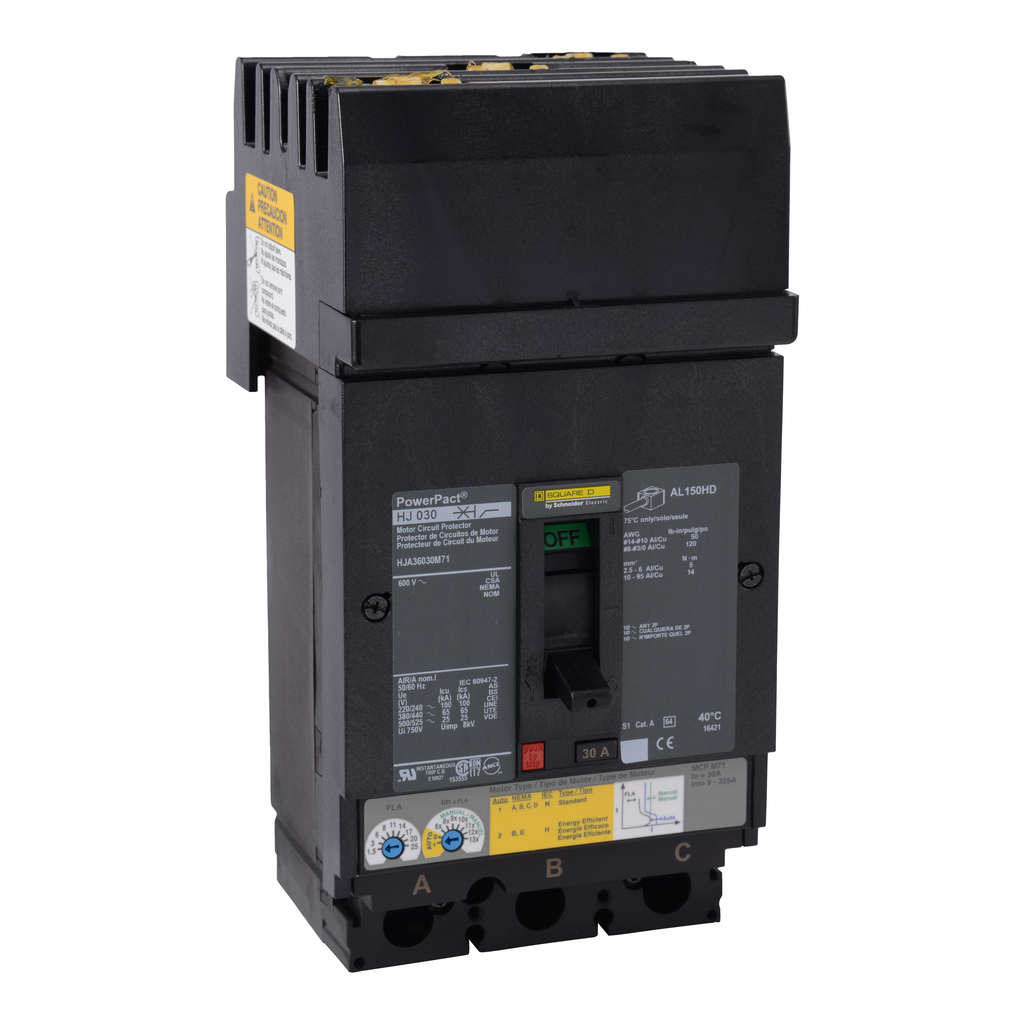

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This I-Line mount circuit breaker ratchets firmly onto the bus stack with captive retaining screws to secure the breaker to the mounting pan. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | Motor Circuit Protector |
---|---|
Product Name | PowerPact H |
Range | PowerPact |
Device Application | distribution |
Warranty | 18 months |
Mounting Mode | I-Line bracket) |
Network Frequency | 50/60 Hz |
Terminal Identifier | AL150HD |
[Ics] Rated Service Breaking Capacity |
|
Trip Unit Technology | thermal-magnetic |
[Ith] Conventional Free Air Thermal Current | 1.5-25 A |
Height | 163 mm |
[Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-3 |
Tightening Torque |
|
Mounting Support | bracket |
Breaking Capacity Code | J |
Magnetic Tripping Current | 9-325 A |
Number Of Slots |
|
Protected Poles Description | 3t |
Electrical Connection |
|
Mounting Height | 4.5 in |
Net Weight | 2.2 kg |
[Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
Control Type | toggle |
Wire Stripping Length | 16 mm |
Utilisation Category | category A |
Line Rated Current | 30-30 A |
Continuous Current Rating | 80 % |
Breaking Capacity |
|
[Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
Suitability For Isolation | yes IEC 60947-2 |
Communication Interface |
|
Poles Description | 3P |
Quantity Per Set | 1 |
Awg Gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
Color | Black |
Width | 104 mm |
Depth | 86 mm |
Phase Connection | ABC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1311006EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1311006EN |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -2-70 °C |
Standards |
|
Product Certifications |
|
Ip Degree Of Protection | front cover IP40 IEC 60529 |
Pollution Degree | 3 IEC 60947-1 |
Ambient Air Temperature For Storage | -50-85 °C |
Quality Labels | CE |
