HGL36000S15LUYE - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, lugs, magnetic, control wire ON end, handle ext

HGL36000S15LUYE

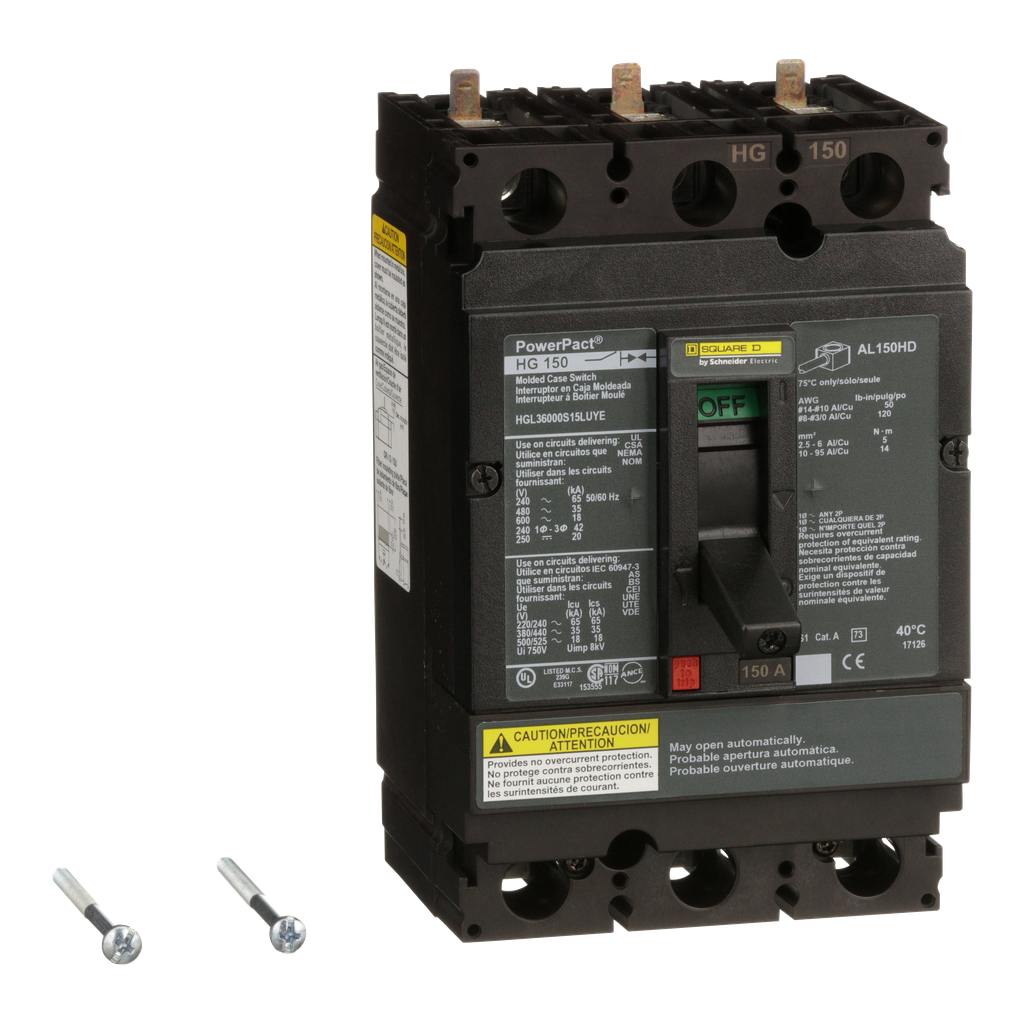

Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, lugs, magnetic, control wire ON end, handle ext

The automatic switches are similar in construction to, use the same accessories, and offer the same connection possibilities as the H-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. PowerPacT H-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch is unit mount and has lugs on both line and load sides. This PowerPacT H, 150A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. This unit includes a control wire terminal on the line end and handle extension. PowerPacT H automatic switches comply to UL and CSA standards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	PowerPact H
Accessory / Separate Part Type	control wire OFF end handle extension
Product Or Component Type	automatic switch
Trip Unit Technology	magnetic
Warranty	18 months
Terminal Identifier	AL150HD
Height	6.4 in
Mounting Mode	unit mount
Short-Circuit Withstand	65 kA 240 V UL 489 35 kA 480 V UL 489 18 kA 600 V UL 489
Tightening Torque	5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0)
Breaking Capacity Code	G
Magnetic Tripping Current	2250-2250 A
Poles Description	3P
Line Rated Current	150 A
Width	4.12 in
Electrical Connection	lugs line lugs load
Depth	4.36 in
[Ue] Rated Operational Voltage	600 V AC
Awg Gauge	x AWG 14...AWG 3/0 ( aluminium/copper )
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI2206027EN
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2206027EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications	CCC NMX IEC CSA CE UL Listed
