HCP36868M

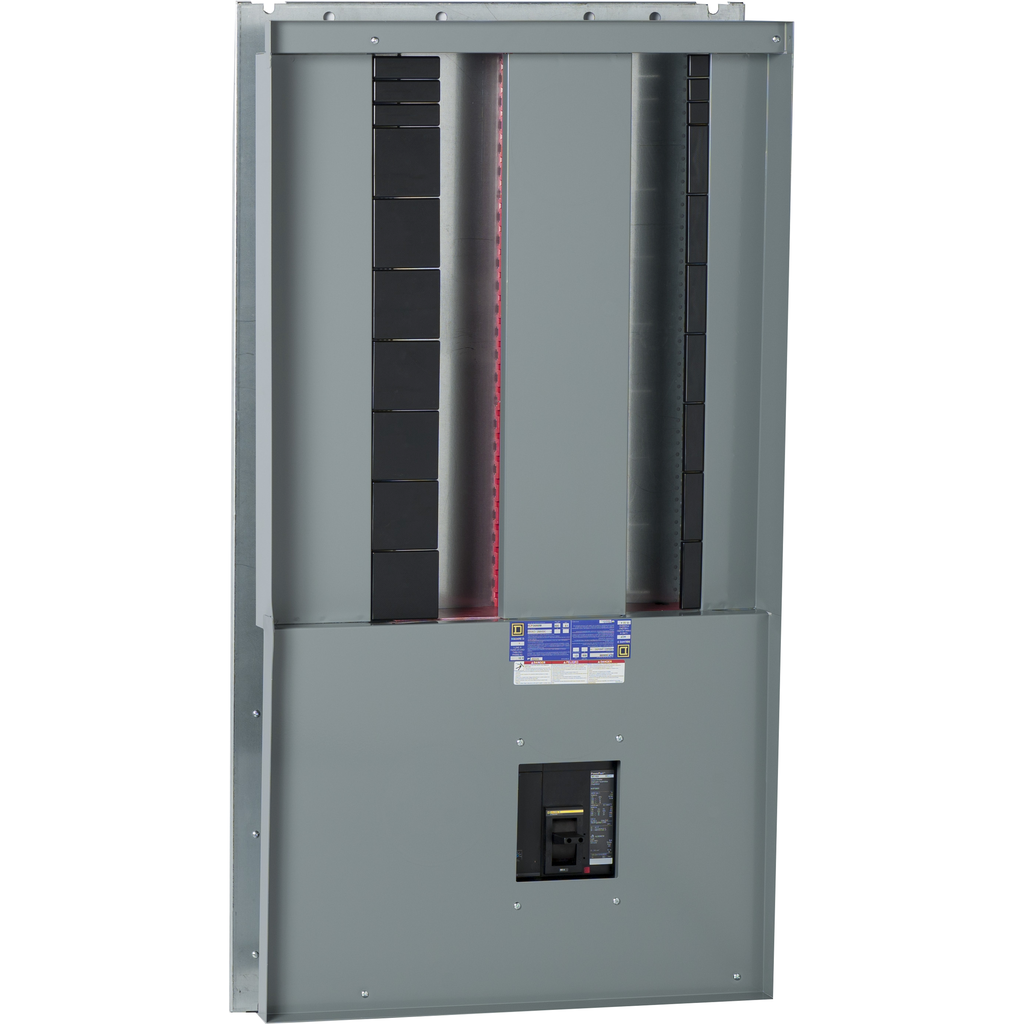

Interior, I-Line Panelboard, HCP, 800A, w/main breaker, 72in CB space, for 42in W x 86in H x 9.5in D box, Cu bus
Specifications
| Range Of Product | I-Line |
|---|---|
| Product Or Component Type | interiors |
| Warranty | 18 months |
| Height | 66 in |
| Product Destination | enclosure HCP 42 in 86 in |
| Line Rated Current | 800 A |
| Bar Length | 72 in |
| Width | 34.38 in |
| Load Center Type | main breaker |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
