HCP326812N

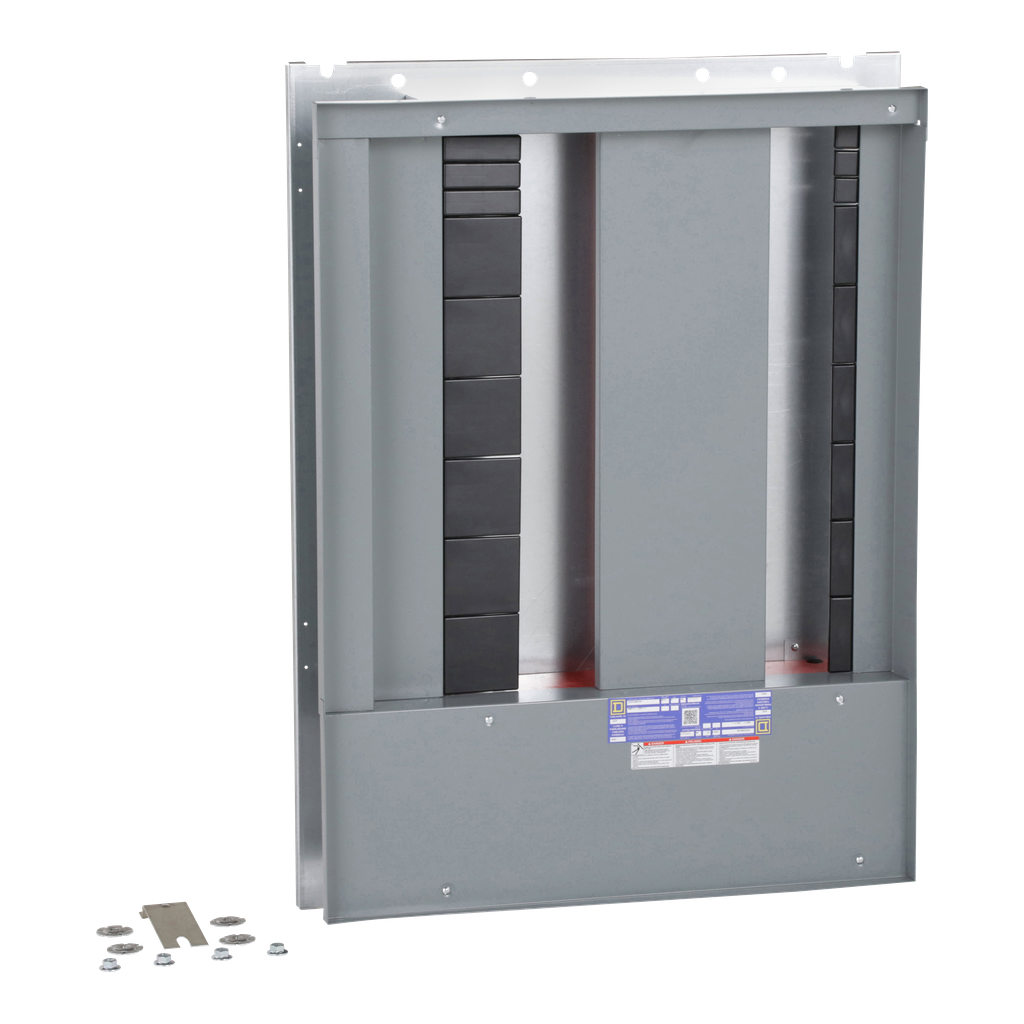

Interior, I-Line Panelboard, HCP, 1200A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus, w/neutral
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | I-Line |
|---|---|
| Product Or Component Type | interiors |
| Warranty | 18 months |
| Height | 48 in |
| Product Destination | enclosure HCP 42 in 68 in |
| Line Rated Current | 1200 A |
| Bar Length | 63 in |
| Width | 35.47 in |
| Load Center Type | main lugs |
| Net Weight | 117.93 kg |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
