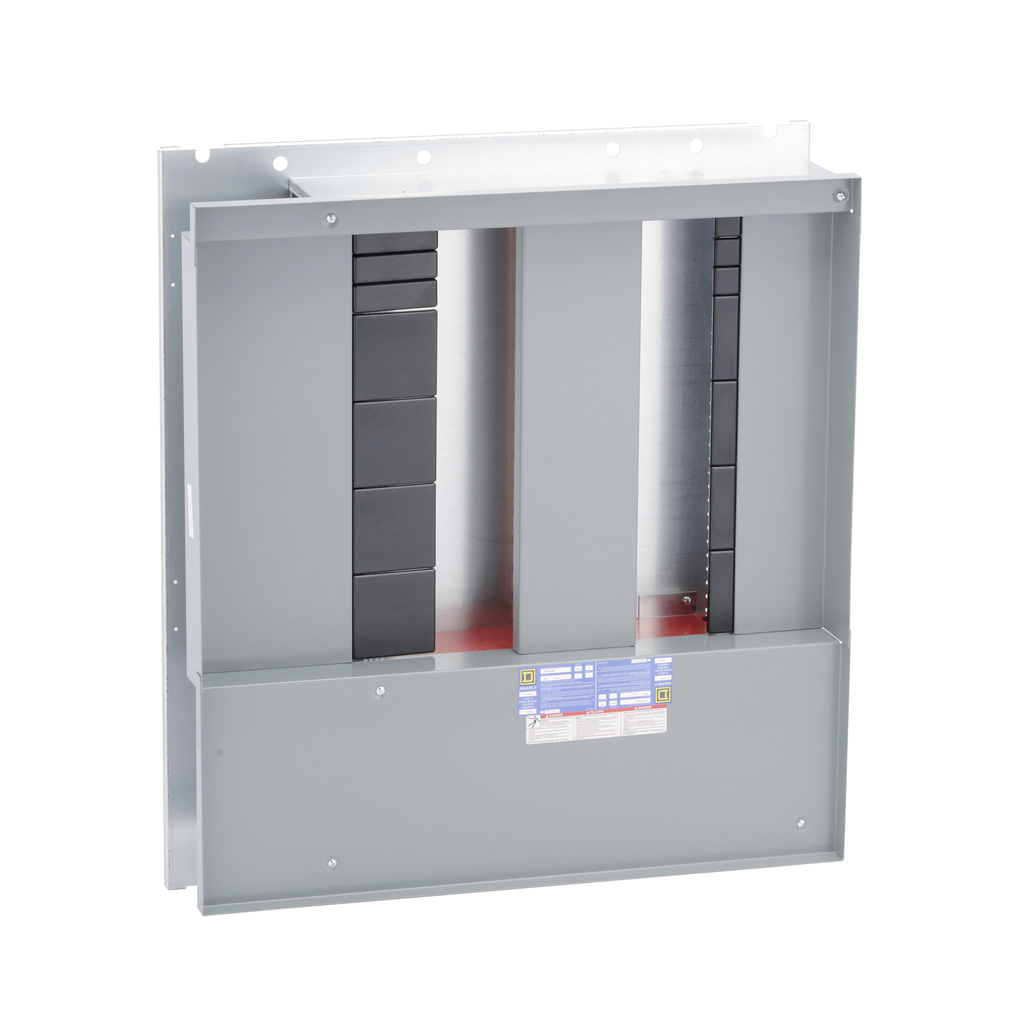

Interior, I-Line Panelboard, HCP, 400A, main lugs, 45in CB space, for 42in W x 59in H x 9.5in D box, Al bus
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCP I-Line panelboard interior is a 400A and has main lugs. The dimesnions are 59 in (H),42 in (W). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | I-Line |
|---|---|
| Product Or Component Type | interiors |
| Warranty | 18 months |
| Height | 39 in |
| Product Destination | enclosure HCP 42 in 59 in |
| Line Rated Current | 400 A |
| Bar Length | 45 in |
| Width | 34.38 in |
| Load Center Type | main lugs |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409018EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
