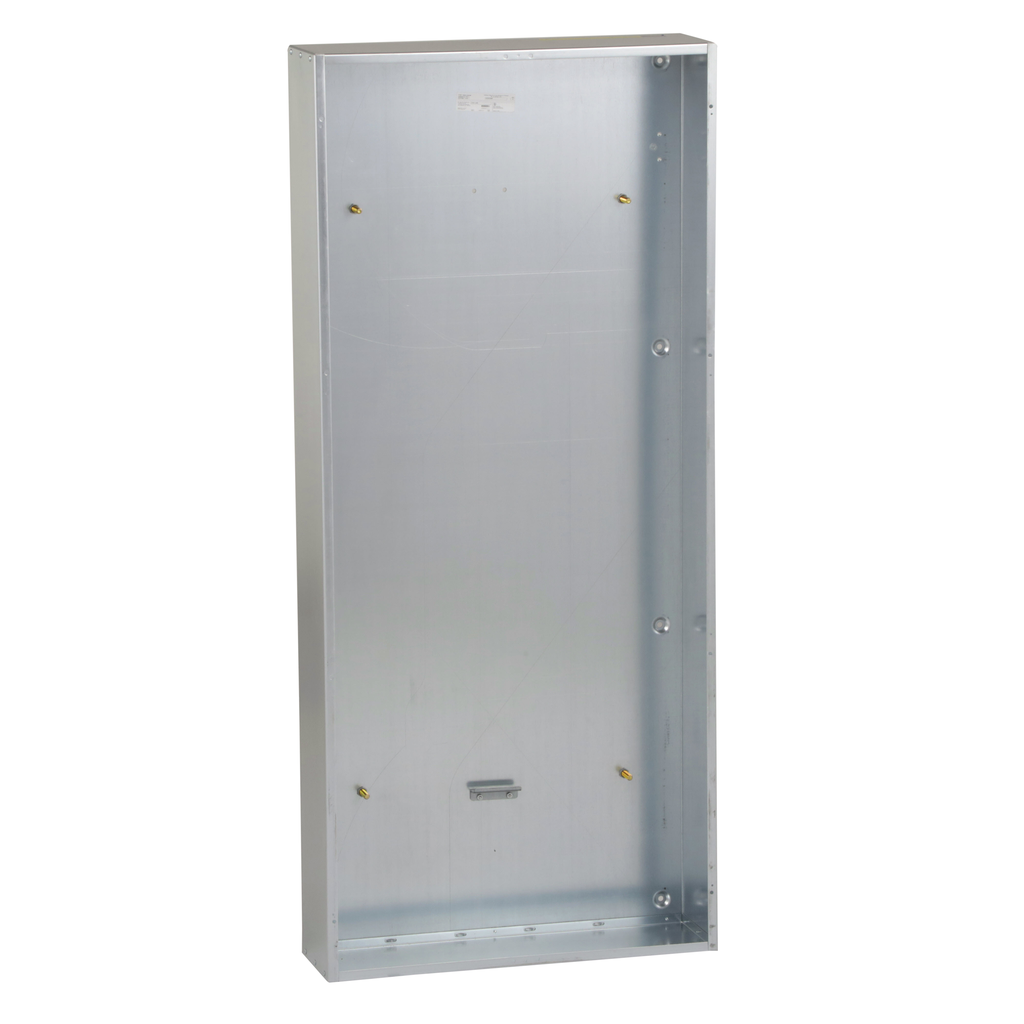

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, panelboard enclosure has a rated current of 600-800A. This enclosure has a NEMA 1 Degree of protection rating. Dimensions for this enclosure are 1854 mm, (H),813 mm (W),241 mm(D) and weighs 54.54 kg. This product complys to UL & CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | I-Line |
---|---|
Product Or Component Type | enclosure |
Device Application | panelboard |
Device Short Name | HCM |
Warranty | 18 months |
Height | 73 in |
Line Rated Current |
|
Depth | 9.5 in |
Enclosure Nominal Height | 1854 mm |
Enclosure Nominal Depth |
|
Net Weight | 54.54 kg |
Enclosure Nominal Width | 813 mm |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407017EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Nema Degree Of Protection | NEMA 1 |
Standards |
|
