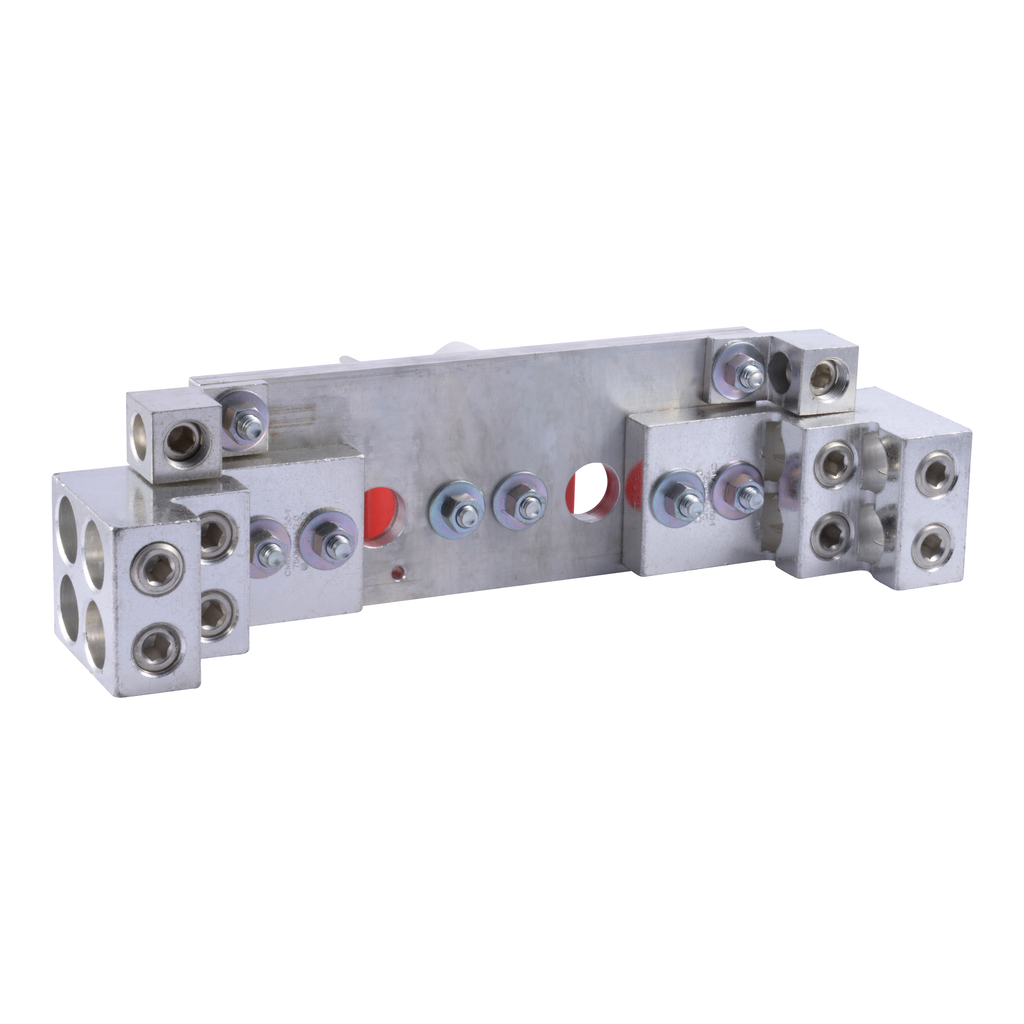

H800SNE4
Solid neutral assembly, Heavy duty safety switches, 800A, series E4
Square D by Schneider Electric brand heavy duty safety switches are UL listed for use with accessories. This Solid neutral assembly is insulated, groundable and isused with E4 Series Heavy duty switches with ampere rating of 800A, could be factory or field installed. Terminal data for this assembly is (8) AWG 3/0-750 kcmil aluminium or copper plus (2) AWG 6-350 kcmil aluminium or copper for service ground
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Series Name | heavy duty |
|---|---|
| Range Of Product | Square D |
| Product Or Component Type | safety switch solid neutral assembly |
| Warranty | 18 months |
| Tightening Torque |
|
| Line Rated Current |
|
| Awg Gauge |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1405016EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
Documents
- Spec Sheet
- Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
- Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
- F Series Safety Switches—Neutral Assembly Replacement Instructions - files (pdf)
- Safety Switch Maintenance Instructions (30-1200 A) - files+(1) (pdf)
- 800A and 1200 A Heavy Duty Safety Switches Installation Instructions - 40271-959-02 (pdf)
- H800SNE4 or H1200SNE4 Solid Neutral Assemblies Installation Instructions - 40272-132-02 (pdf)
