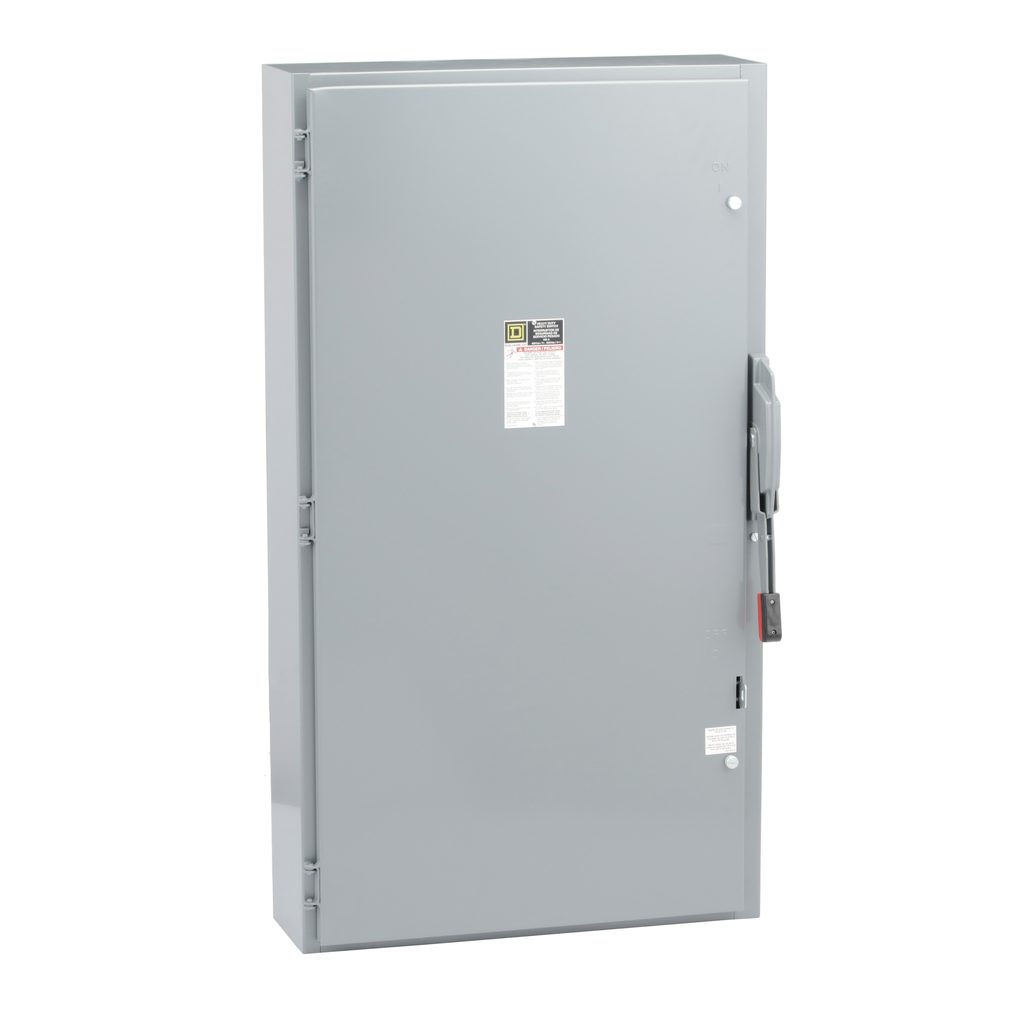

Safety switch, heavy duty, fusible, 400A, 3 wire, 3 pole, 250hp, 600VAC/DC, NEMA 1
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of steel and has no neutral installed. This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Disconnector Device Type | fusible disconnect |
|---|---|
| Product Or Component Type | Single Throw Safety Switch |
| Phase | 3 phase |
| Series Name | heavy duty |
| Nema Degree Of Protection | NEMA 1 steel |
| Line Rated Current | 400 A |
| Device Composition | none |
| Device Application | heavy application |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Warranty | 18 months |
| Height | 50.25 in |
| Device Mounting | surface |
| Tightening Torque | 550-550 lbf.in (AWG 1/0...750 kcmil) |
| Net Weight | 78 kg |
| Short-Circuit Current |
|
| Fuse Type |
|
| Electrical Connection | lugs |
| Awg Gauge | AWG 1/0...750 kcmil copper or aluminium |
| Width | 27.63 in |
| Wiring Configuration | 3-wire |
| Depth | 10.13 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404026EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications | UL listed file E2875 |
