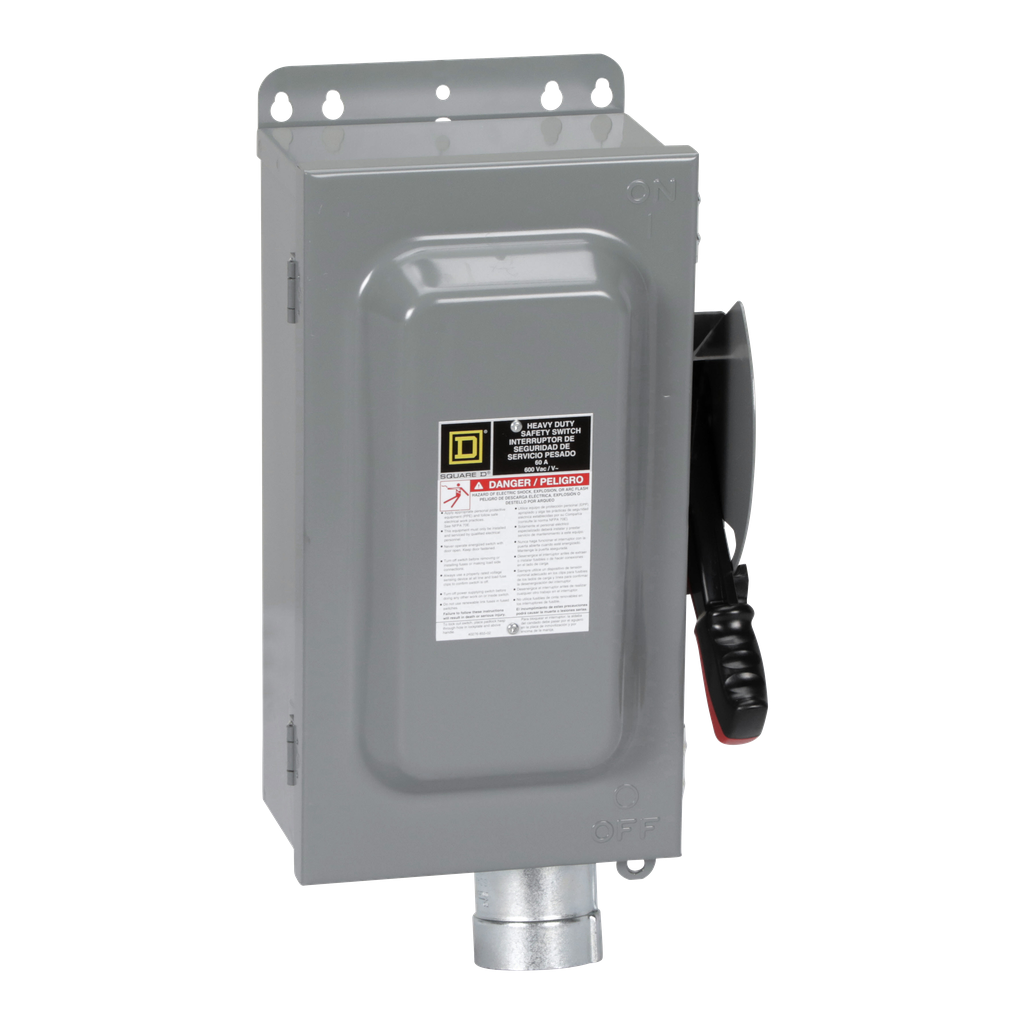

Safety switch, heavy duty, fusible, 60A, 600VAC, 600VDC, 3 poles, 50hp, NEMA 12K, hubbellock receptacle
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 200A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 120 HP at 480 VAC three phase, 150 HP at 600 VAC three phase and 50 HP at 600 VDC. This switch has a 3 wire configuration and is rated for 6 AWG to 250 kcmil aluminum or copper wire. This device has enclosure rating of NEMA 4/4X/5 and it is made of stainless steel. It has a height of 29 in, width of 19.25 in and has a depth of 8.88 in. It is UL listed with the file E2875.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Disconnector Device Type | fusible disconnect switch |
|---|---|
| Product Or Component Type | Receptacle Switch |
| Phase | 3 phase |
| Product Destination | plug SD12781 Hubbellock |
| Nema Degree Of Protection | NEMA 12K |
| Line Rated Current | 60 A |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage |
|
| Warranty | 18 months |
| Height | 16.5 in |
| Device Mounting | surface |
| Tightening Torque |
|
| Net Weight | 8 kg |
| Electrical Connection | receptacle |
| Awg Gauge |
|
| Width | 10.5 in |
| Wiring Configuration | 4-wire |
| Depth | 7 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL Listed |
