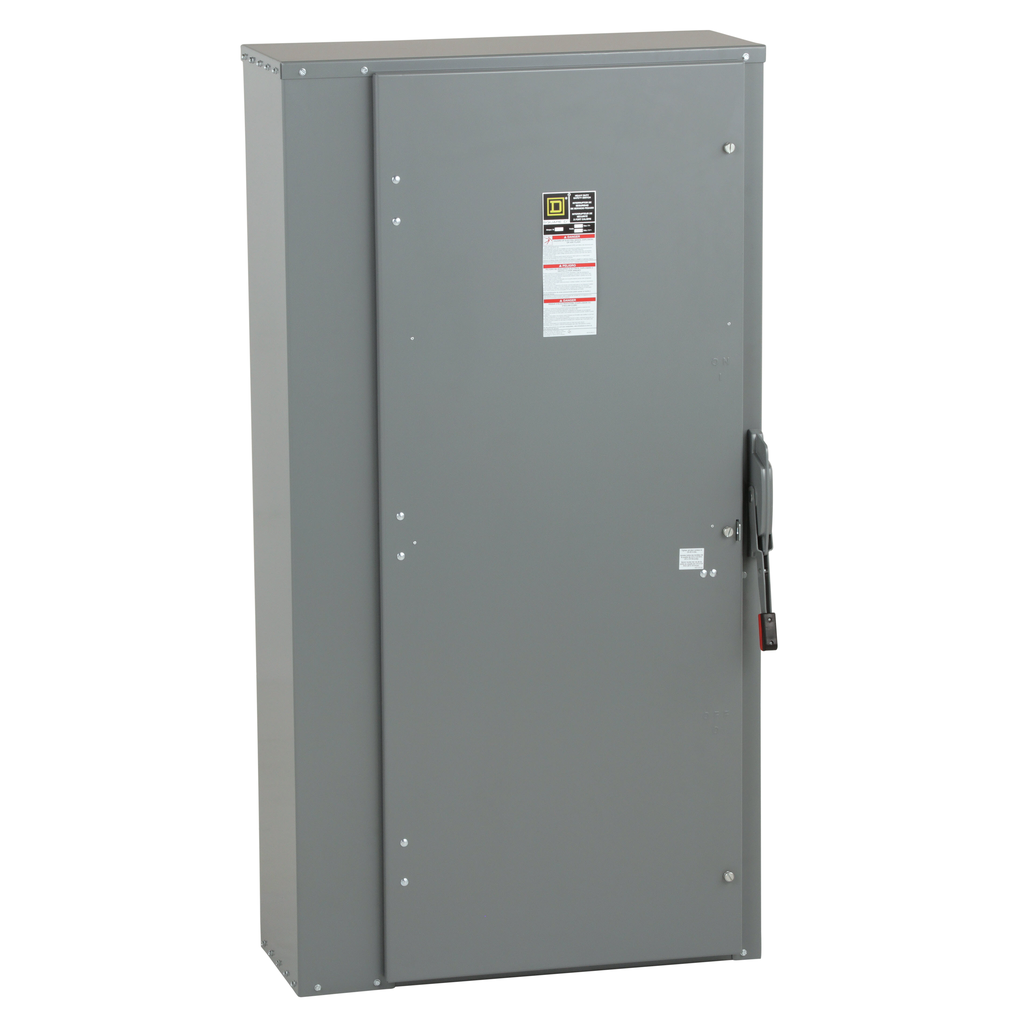

Series Name | heavy duty |
---|---|
Disconnector Device Type | fusible disconnect |
Nema Degree Of Protection | NEMA 1 steel |
Line Rated Current | 1200 A |
Product Or Component Type | Single Throw Safety Switch |
Device Composition | neutral (factory installed) |
Phase | 3 phase |
Device Application | heavy application |
Number Of Poles | 2 |
[Ue] Rated Operational Voltage |
|
Warranty | 18 months |
Height | 69.13 in |
Device Mounting | surface |
Tightening Torque | 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil) |
Fuse Type | L |
Electrical Connection | lugs |
Awg Gauge | AWG 3/0...750 kcmil copper or aluminium |
Wiring Configuration | 3-wire |
Width | 36.62 in |
Depth | 17.75 in |
Net Weight | 161.9 kg |
Short-Circuit Current | 200 kA maximum for L |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1405016EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Halogen Content Performance | Halogen free plastic parts product |
Product Certifications | UL listed file E2875 |
