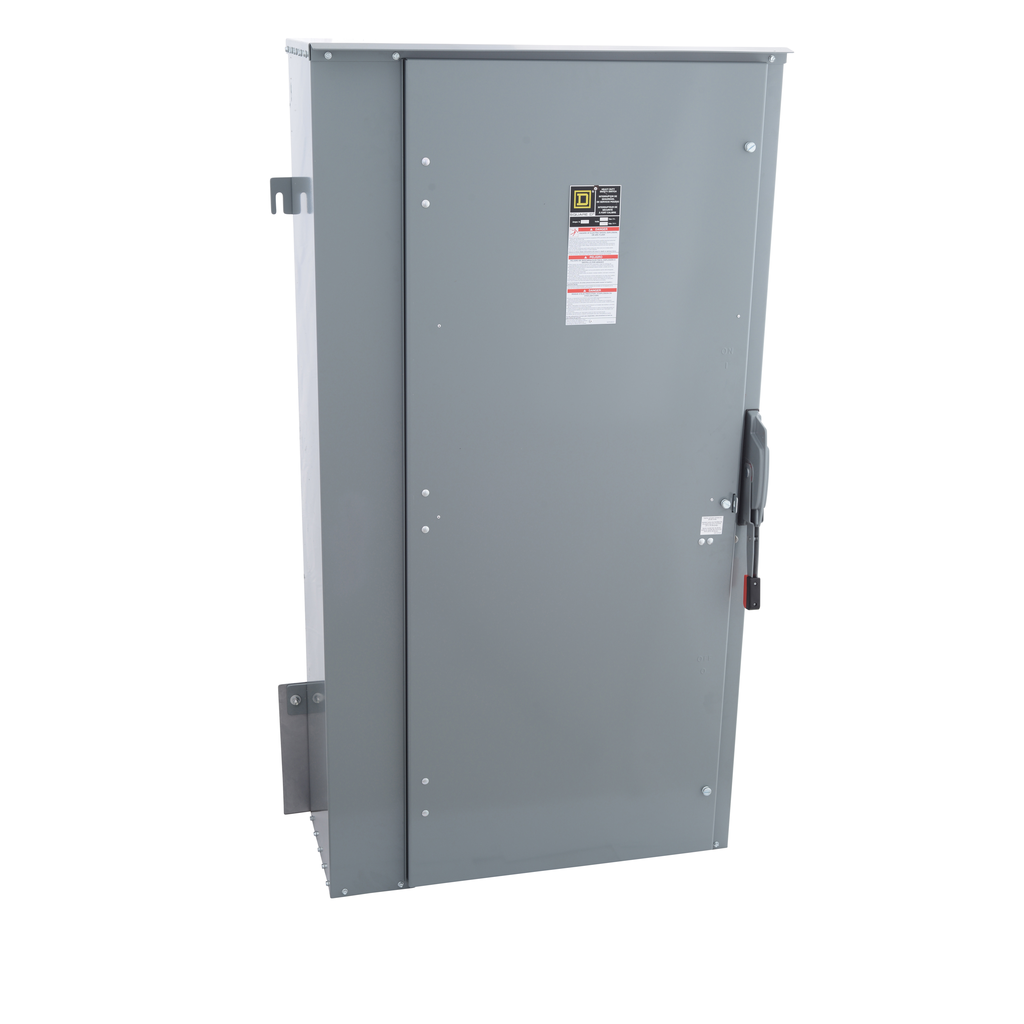

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utilized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 1200A and has a NEMA 3R/12 degree of protection. This fusible disconnect has a short circuit rating of 200kA@240VAC. This safety switch has a galvannealed steel enclosure and is surface mounted. This product is compatible with L, fuses. The acceptable AWG gauge for this product is AWG 3/0 / 750 kcmil, copper or aluminum and has a tightening torque of 375-375 lbf in. This product complies to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 69.13 in (H), 36.62 in (W), 17.75 in (D).
Brand: Schneider Electric
Add to Quote CatalogueSeries Name | heavy duty |
---|---|
Disconnector Device Type | fusible disconnect |
Nema Degree Of Protection | NEMA 3R/12 galvannealed steel |
Line Rated Current | 1200 A |
Product Or Component Type | Single Throw Safety Switch |
Device Composition | none |
Phase | 3 phase |
Device Application | heavy application |
Number Of Poles | 2 |
[Ue] Rated Operational Voltage |
|
Warranty | 18 months |
Height | 69.13 in |
Device Mounting | surface |
Tightening Torque | 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil) |
Fuse Type | L |
Electrical Connection | lugs |
Awg Gauge | AWG 3/0...750 kcmil copper or aluminium |
Wiring Configuration | 2-wire |
Width | 36.62 in |
Depth | 17.75 in |
Net Weight | 162.8 kg |
Short-Circuit Current | 200 kA maximum for L |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1405016EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Halogen Content Performance | Halogen free plastic parts product |
Product Certifications | UL listed file E2875 |
