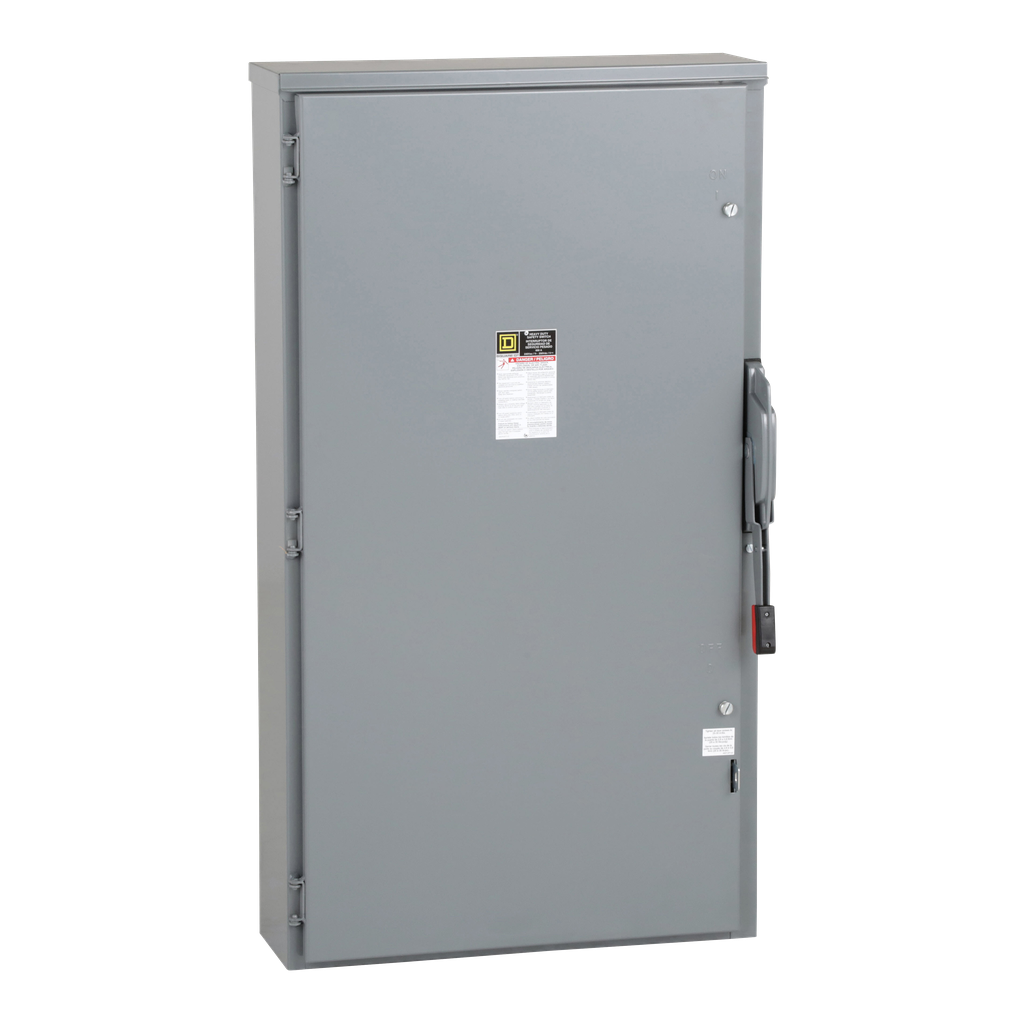

Safety switch, heavy duty, fusible, 600A, 3 wires, 2 pole, 1 neutral, 200hp, 240VAC/250VDC, NEMA 3R
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 30A with voltage of 240 VAC and 250 VDC. It is rated when using time delay fuses of 3 HP at 240 VAC single phase, 7.5 HP at 240 VAC three phase and 5 HP at 250 VDC. This switch has a 3 wire configuration and is rated for 12 to 6 AWG aluminum wire and 14 to 6 AWG copper wire. This device has enclosure rating of NEMA 4, 4X, 5 and it is made of stainless steel. It has a height of 14.93 in, width of 7.22 in and has a depth of 5.11 in. This switch has factory installed neutral. It is UL listed with the file E2875.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Disconnector Device Type | fusible disconnect |
|---|---|
| Product Or Component Type | Single Throw Safety Switch |
| Phase | 3 phase |
| Series Name | heavy duty |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Line Rated Current | 600 A |
| Device Composition | neutral (factory installed) |
| Device Application | heavy application |
| Number Of Poles | 2 |
| [Ue] Rated Operational Voltage |
|
| Warranty | 18 months |
| Height | 50.31 in |
| Device Mounting | surface |
| Tightening Torque | 375-375 lbf.in (AWG 3/0...500 kcmil) |
| Net Weight | 77.1 kg |
| Short-Circuit Current |
|
| Fuse Type |
|
| Electrical Connection | lugs |
| Awg Gauge | AWG 3/0...500 kcmil copper or aluminium |
| Width | 27.88 in |
| Wiring Configuration | 3-wire |
| Depth | 10.13 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404026EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications | UL listed file E2875 |
