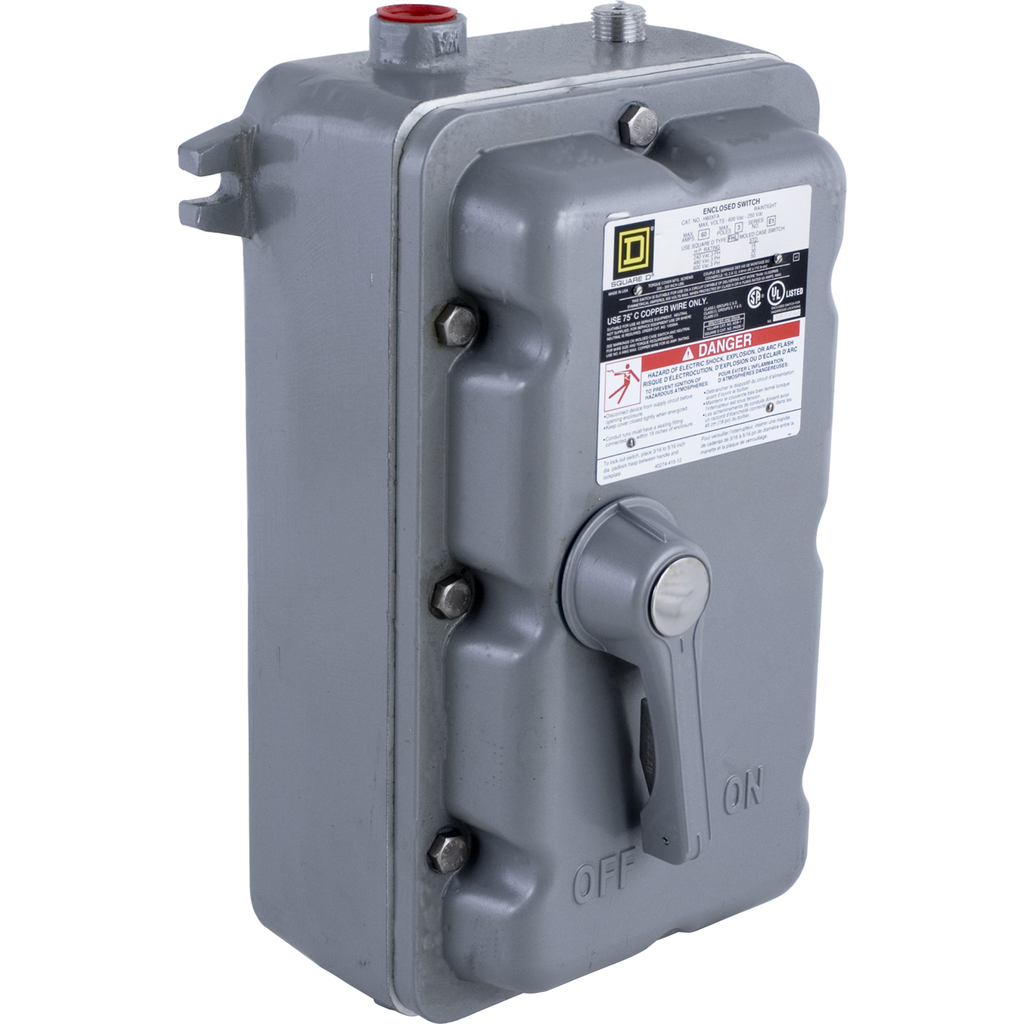

H225XJG - Safety switch, heavy duty, molded case, 225A, 3 pole, 150hp, 600VAC/250VDC, NEMA 7/9

H225XJG

Add to Quote Catalogue

Series Name	heavy duty
Disconnector Device Type	fusible disconnect
Nema Degree Of Protection	NEMA 7/9 Cast Aluminium
Line Rated Current	400 A
Product Or Component Type	Single Throw Safety Switch
Device Composition	none
Phase	3 phase
Device Application	heavy application
Number Of Poles	2
[Ue] Rated Operational Voltage	250 V DC 240 V AC
Warranty	18 months
Height	22.7 in
Device Mounting	surface
Tightening Torque	550-550 lbf.in (AWG 1/0...750 kcmil)
Awg Gauge	AWG 1/0...750 kcmil copper or aluminium
Width	10.93 in
Depth	7.7 in
Net Weight	19.5 kg
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404026EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content Performance	Halogen free plastic parts product
Product Certifications	UL listed file E2875
