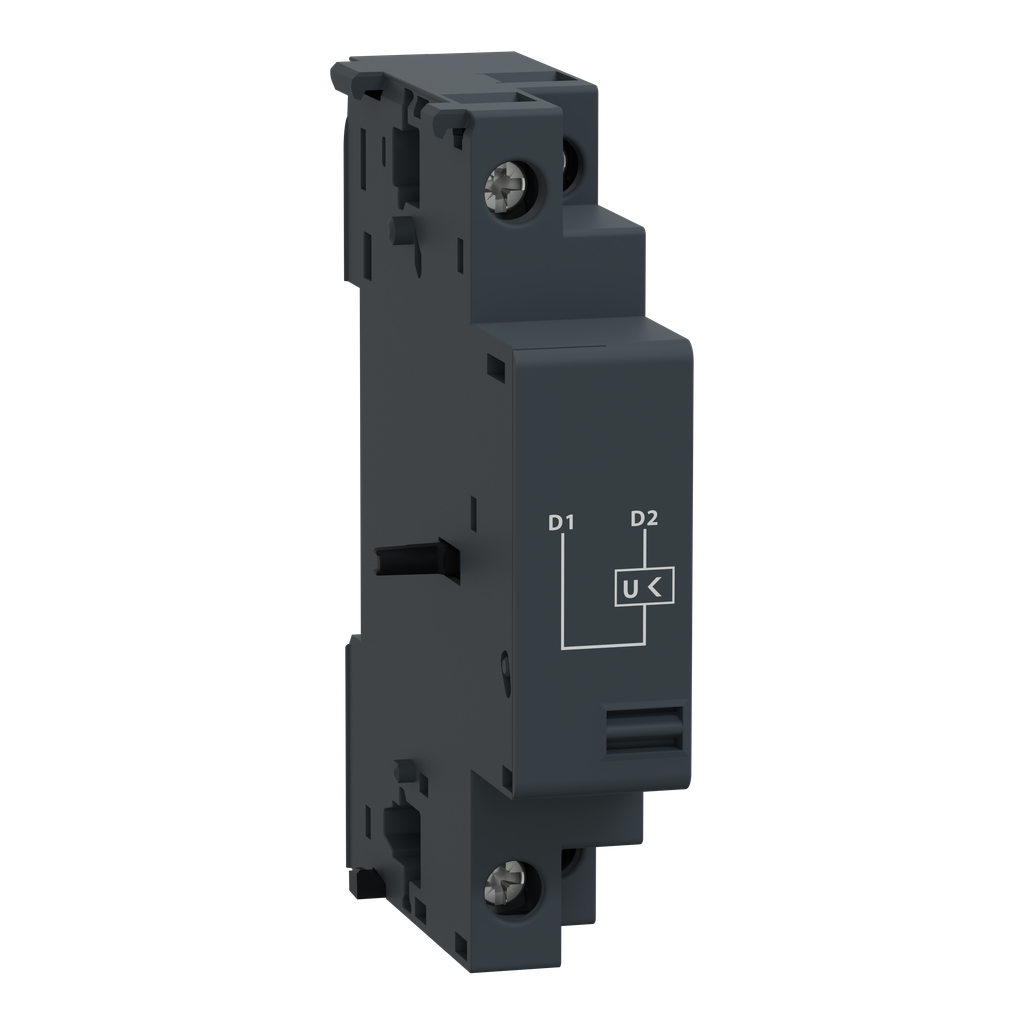

TeSys GV electrical trip, MN undervoltage release, 24V AC 50Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | undervoltage release |
---|---|
Range |
|
Device Short Name | GVAU |
Warranty | 18 months |
[Uc] Control Circuit Voltage | 24 V AC 50 Hz |
Control Circuit Voltage Limits | 0.85...1.1 Un |
Height | 89 mm |
Tightening Torque | < 1.4 N.m screw clamp terminals |
Range Compatibility |
|
Hold-In Power Consumption In W | 1.1-1.1 W |
Net Weight | 0.105 kg |
Inrush Power In Va | 12-12 VA AC |
Connections - Terminals |
|
[Ui] Rated Insulation Voltage |
|
Mechanical Durability |
|
Threshold Tripping Voltage | 0.7...0.35 Un |
Hold-In Power Consumption In Va | 3.5-3.5 VA AC |
On-Load Factor | 100 % |
Quantity Per Set | set of 10 |
Operating Time | 10...15 ms IEC 60947-1 |
Color | dark grey |
Width | 18 mm |
Depth | 66 mm |
Inrush Power In W | 8 W |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2207006 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI2207006 |
Eu Rohs Directive | Compliant |
