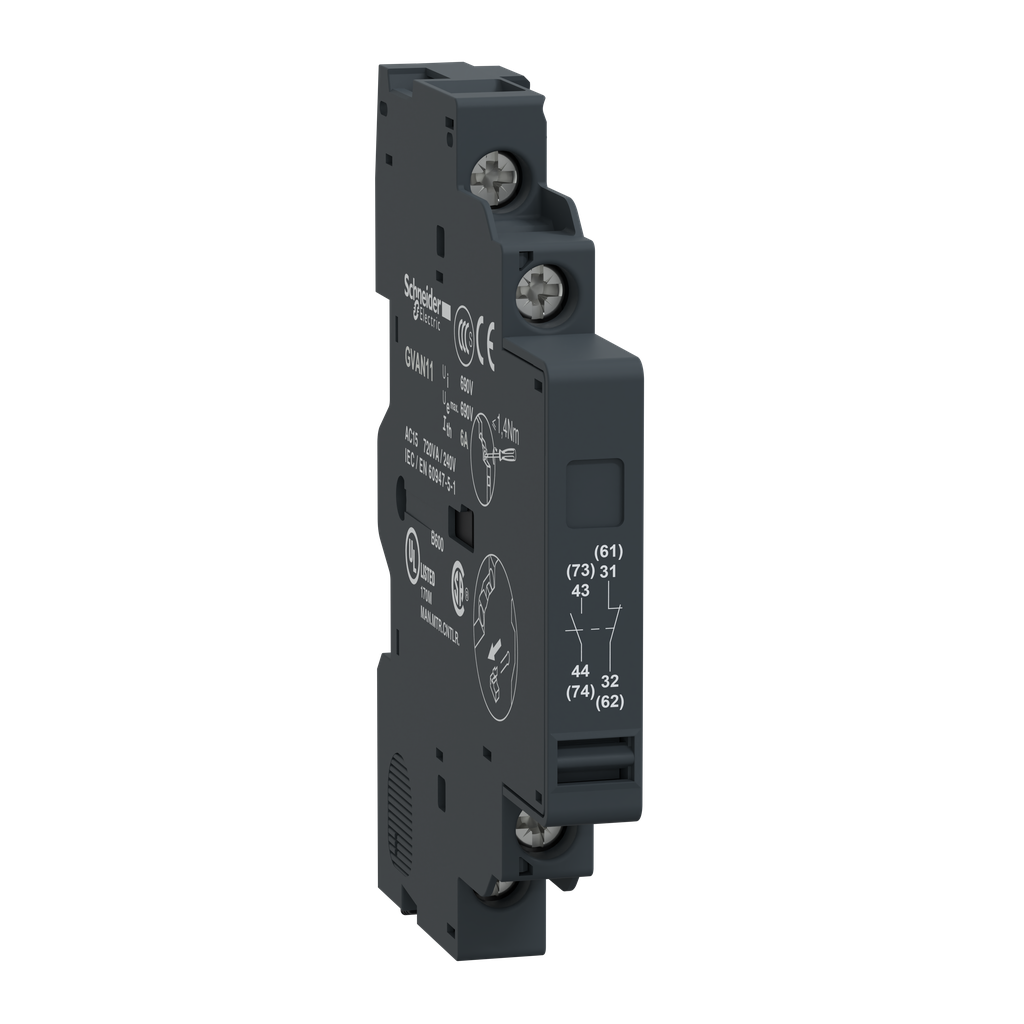

GVAN11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, side mount, screw clamp

GVAN11

TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, side mount, screw clamp

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Or Component Type	auxiliary contact block
Range	TeSys TeSys Deca
Mounting Location	left side
Pole Contact Composition	1 NO + 1 NC
Product Compatibility	GV2ME GV2RT GV2L GV3P GV3L GV2LE GV2P
Device Short Name	GVAN
Warranty	18 months
Minimum Switching Current	5 mA
Height	89 mm
[Ith] Conventional Free Air Thermal Current	6 A
[Ue] Rated Operational Voltage	48...690 V AC 24...240 V DC
Protection Type	GB2CB... circuit breaker gG fuse 10 A
Net Weight	0.05 kg
[Ui] Rated Insulation Voltage	600 V UL 508 690 V IEC 60947-1 600 V CSA C22.2 No 14
Minimum Switching Voltage	17 V
Tightening Torque	1.4 N.m screw clamp terminals
Rated Operational Power In Va	300 VA 48-48 V AC-15 100000 cycles 414 VA 690-690 V AC-15 100000 cycles 500 VA 110-127 V AC-15 100000 cycles 500 VA 500-500 V AC-15 100000 cycles 650 VA 440-440 V AC-15 100000 cycles 720 VA 230-240 V AC-15 100000 cycles 850 VA 380-415 V AC-15 100000 cycles
Mechanical Durability	100000 cycles
Color	dark grey
Width	9.3 mm
Depth	66 mm
Rated Operational Power In W	120 W 240 V DC-13 100000 cycles 140 W 110 V DC-13 100000 cycles 140 W 24 V DC-13 100000 cycles 180 W 60 V DC-13 100000 cycles 240 W 48 V DC-13 100000 cycles
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2207006
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI2207006
Eu Rohs Directive	Compliant
Product Certifications	UKCA
Environmental Characteristic	normal environment

TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, side mount, screw clamp
