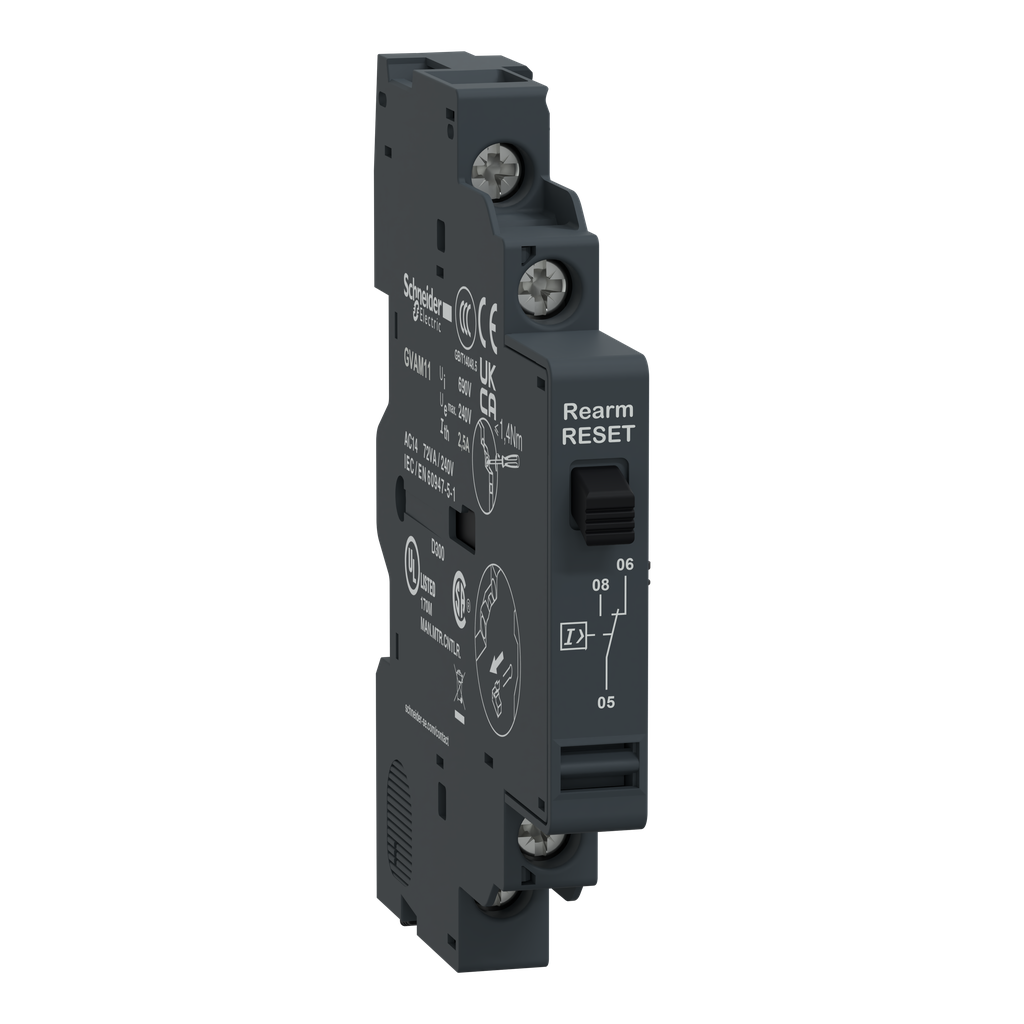

GVAM11

MAN-STARTER SHORT CIR CONTACT 575VAC 1

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1C/O contact for short circuit signaling. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Compatibility	TeSys TeSys (GV3) GV3P circuit breaker TeSys (GV3) GV3L circuit breaker
Product Or Component Type	auxiliary contact block
Range	TeSys TeSys Deca
Mounting Location	left side
Pole Contact Composition	1 C/O
Product Compatibility	GV2L GV2ME GV2RT GV3L GV2P GV3P GV2LE
Auxiliary Contacts Operation	short-circuit signal 1 C/O
Device Short Name	GVAM
Warranty	18 months
Minimum Switching Current	5 mA
Height	89 mm
[Ith] Conventional Free Air Thermal Current	2.5 A fault signalling
[Ue] Rated Operational Voltage	24...240 V AC 24...60 V DC
Protection Type	GB2CB... circuit breaker gG fuse 10 A
Net Weight	0.055 kg
[Ui] Rated Insulation Voltage	690 V IEC 60947-1 300 V UL 508 300 V CSA C22.2 No 14
Minimum Switching Voltage	17 V
Tightening Torque	1.4 N.m screw clamp terminals
Rated Operational Power In Va	36 VA 24-24 V AC-14 1000 cycles 1.5 A 48 VA 48-48 V AC-14 1000 cycles 1 A 72 VA 110-127 V AC-14 1000 cycles 0.5 A 72 VA 230-240 V AC-14 1000 cycles 0.3 A
Mechanical Durability	100000 cycles
Color	dark grey
Width	9.3 mm
Depth	66 mm
Rated Operational Power In W	120 W 240 V DC-13 100000 cycles 140 W 110 V DC-13 100000 cycles 140 W 24 V DC-13 100000 cycles 180 W 60 V DC-13 100000 cycles 240 W 48 V DC-13 100000 cycles 15 W 48 V DC-13 1000 cycles 24 W 24 V DC-13 1000 cycles 9 W 60 V DC-13 1000 cycles
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2207006
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI2207006
Eu Rohs Directive	Compliant
Product Certifications	UKCA
Environmental Characteristic	normal environment
