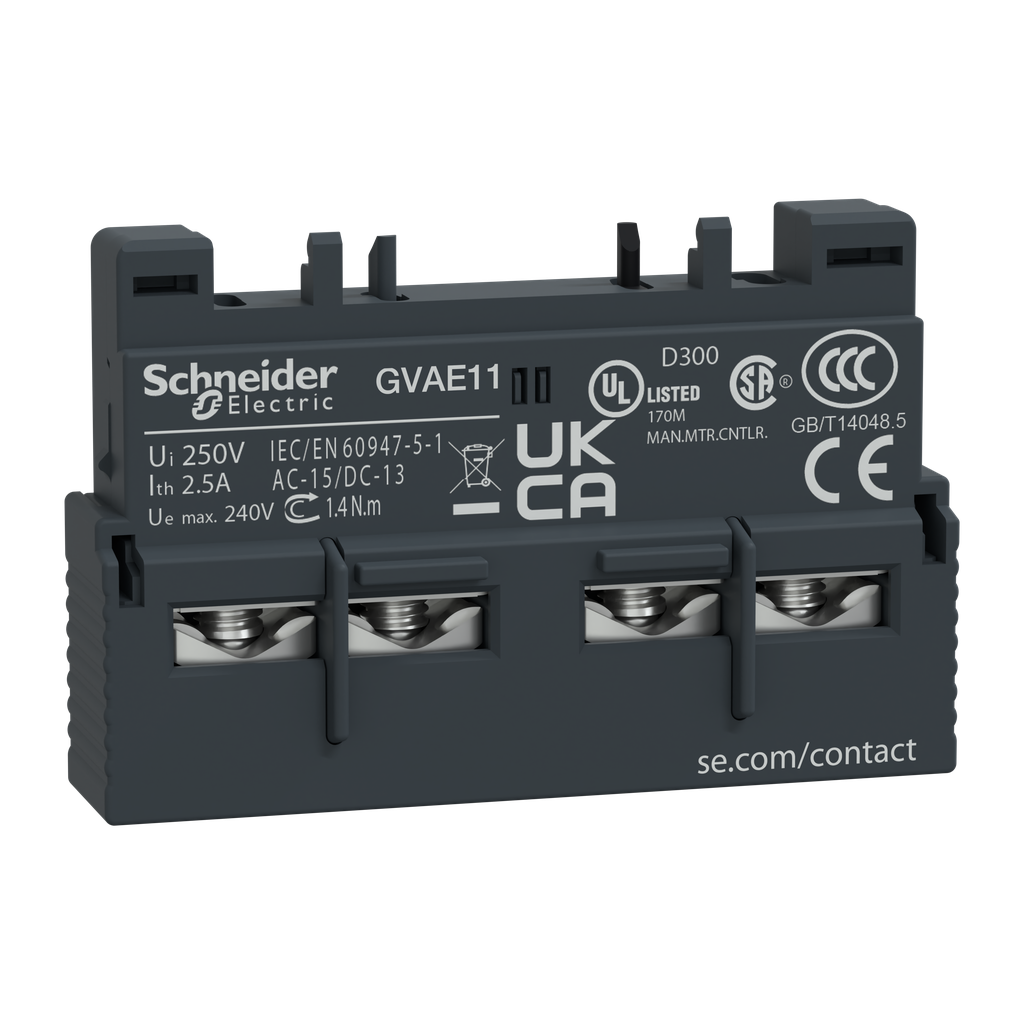

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | auxiliary contact block |
---|---|
Range |
|
Mounting Location | front side |
Pole Contact Composition | 1 NO + 1 NC |
Quantity Per Set | set of 10 |
Product Compatibility |
|
Device Short Name | GVAE |
Warranty | 18 months |
Minimum Switching Current | 5 mA |
Height | 11 mm |
[Ith] Conventional Free Air Thermal Current | 2.5 A |
[Ue] Rated Operational Voltage |
|
Protection Type |
|
Net Weight | 0.02 kg |
[Ui] Rated Insulation Voltage |
|
Minimum Switching Voltage | 17 V |
Tightening Torque | 1.4 N.m screw clamp terminals |
Rated Operational Power In Va |
|
Mechanical Durability | 100000 cycles |
Width | 45 mm |
Depth | 29 mm |
Rated Operational Power In W |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2207006 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI2207006 |
Eu Rohs Directive | Compliant |
Product Certifications | UKCA |
Environmental Characteristic | normal environment |
