GV7AC022

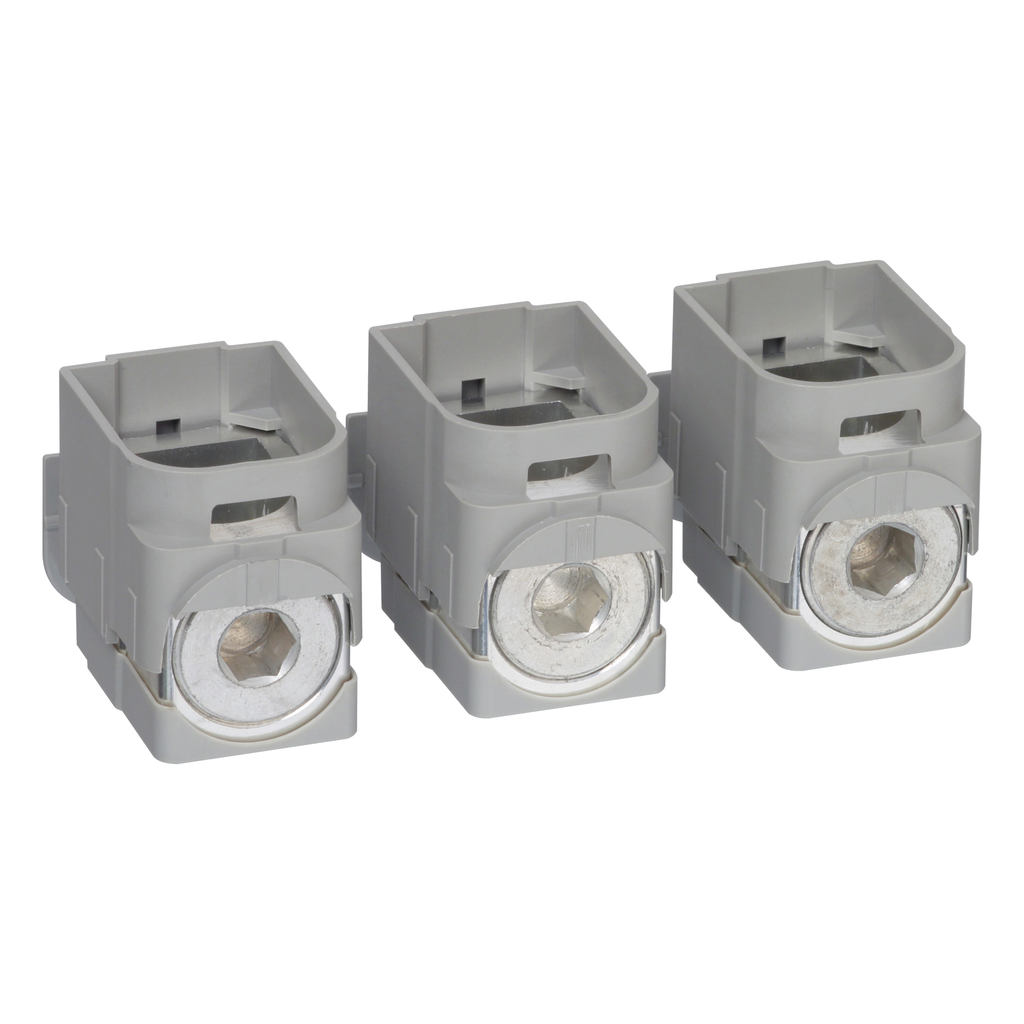

Clip-on connectors, TeSys GV7, 220 A, cable 1.5 to 185mm², set of 3
TeSys GV cable connector, for motor circuit breakers GV5, GV7. To be clipped on a circuit breaker terminal, it allows connection of cables without lugs. Up to 220A, for cables cross-section 1.5-185mm², cable connection by screw terminals. set of 3 units. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | clip-on connector |
| Range | TeSys |
| Device Short Name | GV7AC |
| Warranty | 18 months |
| Net Weight | 0.3 kg |
| Connections - Terminals | screw terminal 1.5-185 mm² |
| [Ie] Rated Operational Current | 220 A |
| Quantity Per Set | set of 3 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111252EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
