GV7AC01

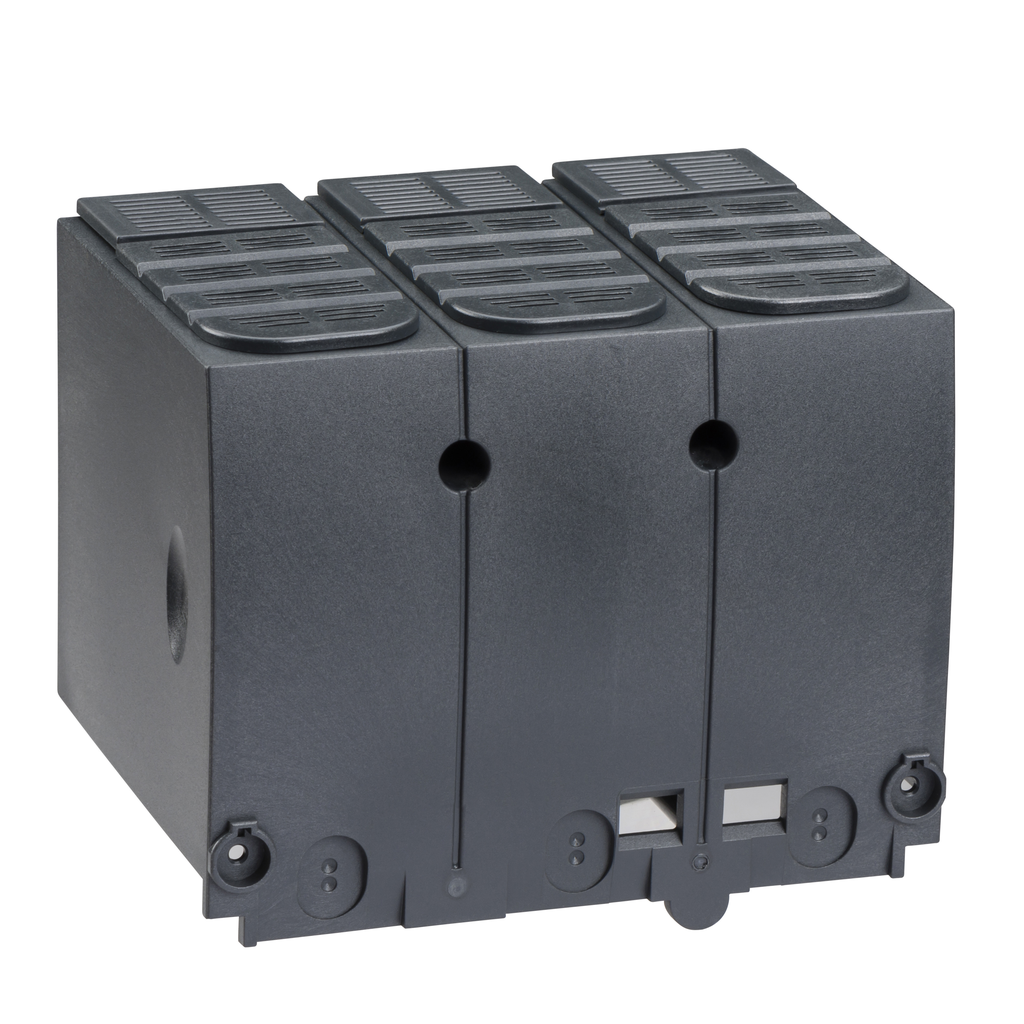

Long terminal shields, TeSys GV5 / GV7, 3P, IP40, pole pitch 35 mm
GV7AC01 is a Schneider Electric 3-poles terminal shield for TeSys GV7 motor circuit breakers. To be used with all GV7 models, it ensures isolation between the connections and protection against direct contact (IP40 front face). It is supplied with sealing accessories. For top and bottom terminals protection 2 units are necessary. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | insulation accessories |
| Product Or Component Type | long terminal shield |
| Range | TeSys |
| Device Short Name | GV7AC |
| Warranty | 18 months |
| Net Weight | 0.145 kg |
| Quantity Per Set | set of 1 |
| Ip Degree Of Protection | IP40 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111252EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
