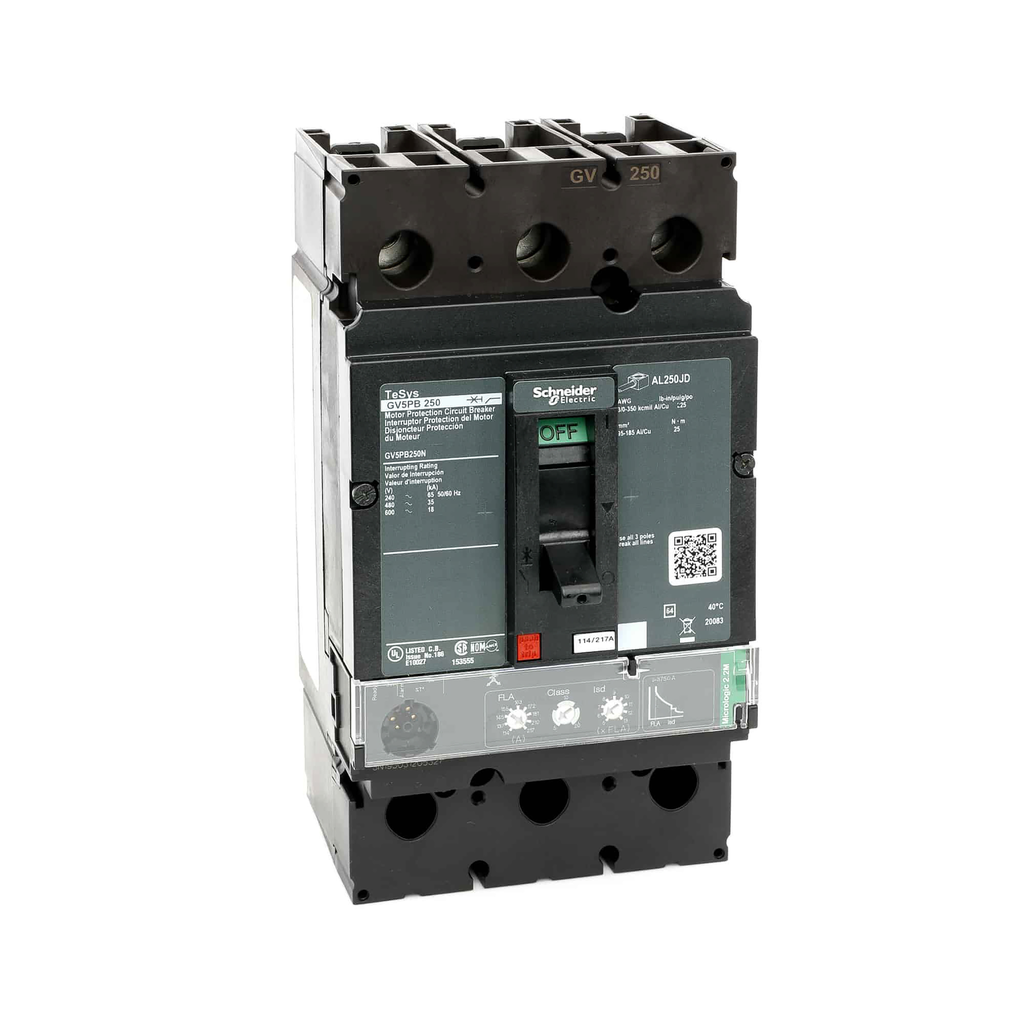

GV5PB250N - TeSys Motor Protection Circuit Breaker, 250A, 3P, 600V, 18kA

GV5PB250N

Add to Quote Catalogue

Trip Unit Technology	electronicMicroLogic 2.2 M,
Line Rated Current	250 A
[Ue] Rated Operational Voltage	600 V AC
Breaking Capacity	65 kA 240 V AC 35 kA 480 V AC 18 kA 600 V AC
Phase Failure Sensitivity	yes
Thermal Protection Adjustment Range	114-217 A
Poles Description	3P
Breaking Capacity Code	N
Product Or Component Type	motor protection circuit breaker
Product Name	TeSys GV5
Height	7.52 in
Mounting Mode	unit mount
Tightening Torque	26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Product Certifications	UL Listed CSA
Awg Gauge	AWG 3/0...350 kcmil aluminium/copper
Width	4.12 in
Electrical Connection	lugs load lugs line
Depth	5 in
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI2206031EN
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2206031EN
Pvc Free	Yes
Eu Rohs Directive	Compliant
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation	40-40 °C
