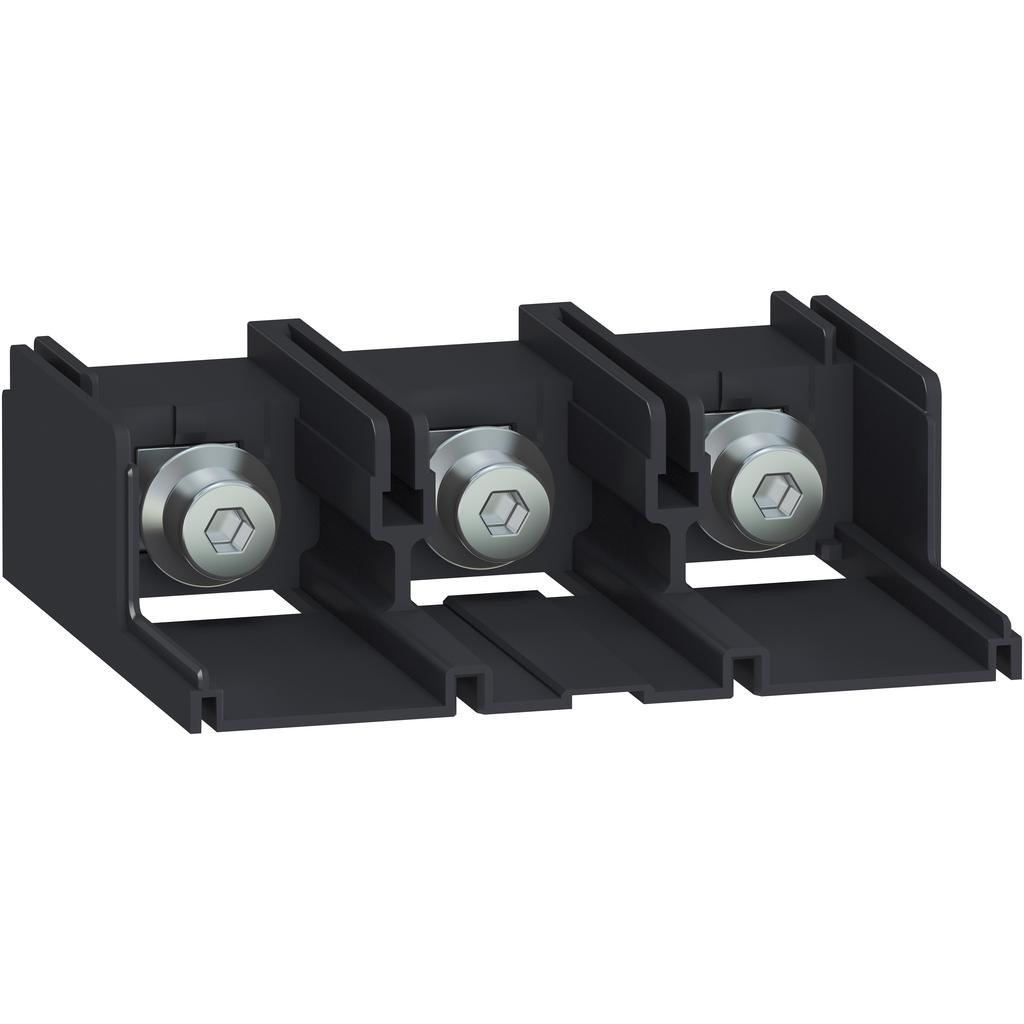

GV4LUG
Lug connector, TeSys GV4, 3P, 2 to 115A, screw terminal
TeSys GV lug connector with screws, for motor circuit breakers GV4. Tu put in place of an EverLink connector, it is used to allow connection of cables with lugs. A terminal shield LAD96590 can complete the lug connections for protection agianst direct contact. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | lug connector |
|---|---|
| Range | TeSys |
| Poles Description | 3P |
| Accessory / Separate Part Type | connection accessories |
| Device Short Name | connectors |
| Connections - Terminals | screw terminal1 |
| Line Rated Current | 2-115 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1704004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1704004EN |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
