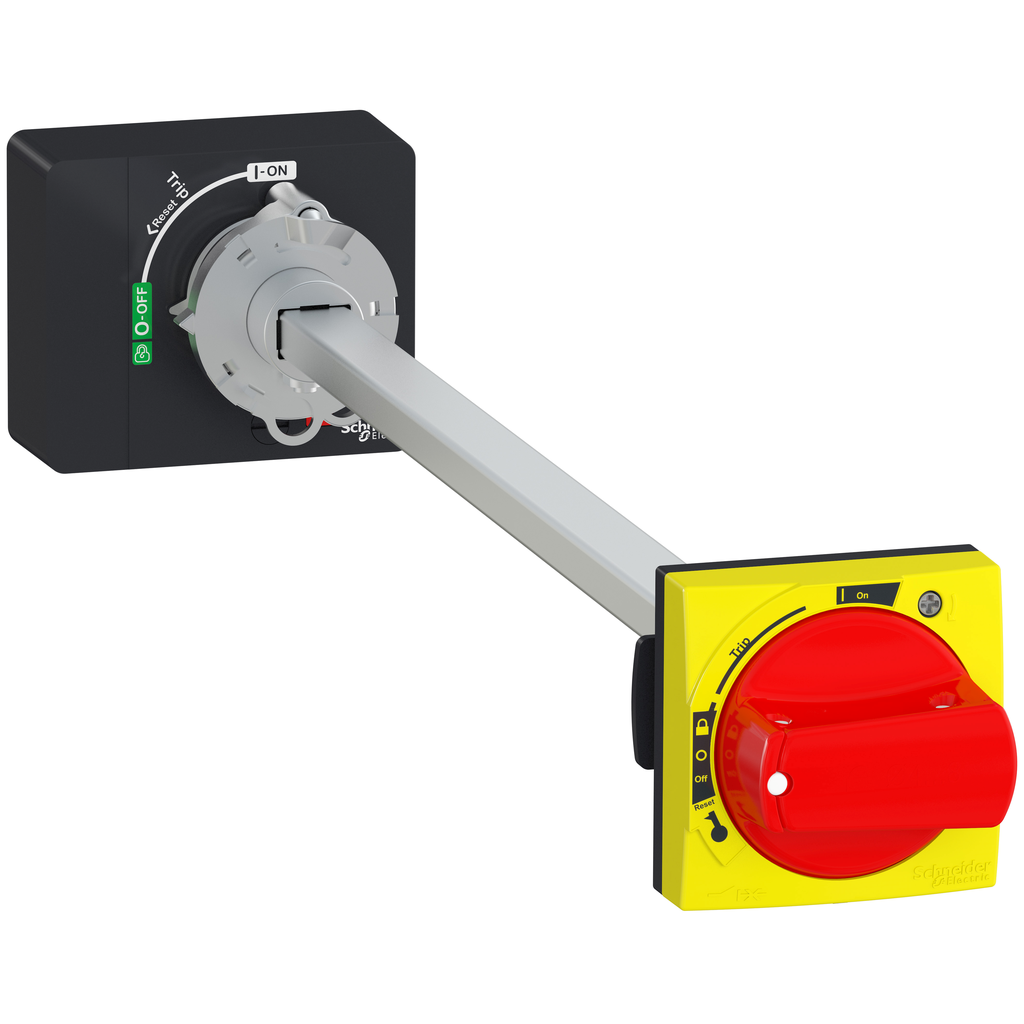

TeSys GV extended rotary handle, for motor circuit breakers GV4 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 214-627mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueRotary Handle Mounting Style | extended |
---|---|
Handle Front Plate Colour | yellow |
Accessory / Separate Part Category | control accessory |
Handle Colour | red |
Product Or Component Type | rotary handle kit |
Marking | OFF - Trip - ON |
Range |
|
Rotary Handle Padlocking |
|
Back/Door Distance | 214-627 mm |
Locking Options Description | 1 to 3 padlocks Ø 4 to Ø 8 |
Range Compatibility |
|
Mounting Location | door of enclosure |
Mounting Mode | fixed |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1905002EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1905002EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ip Degree Of Protection | IP54 |
