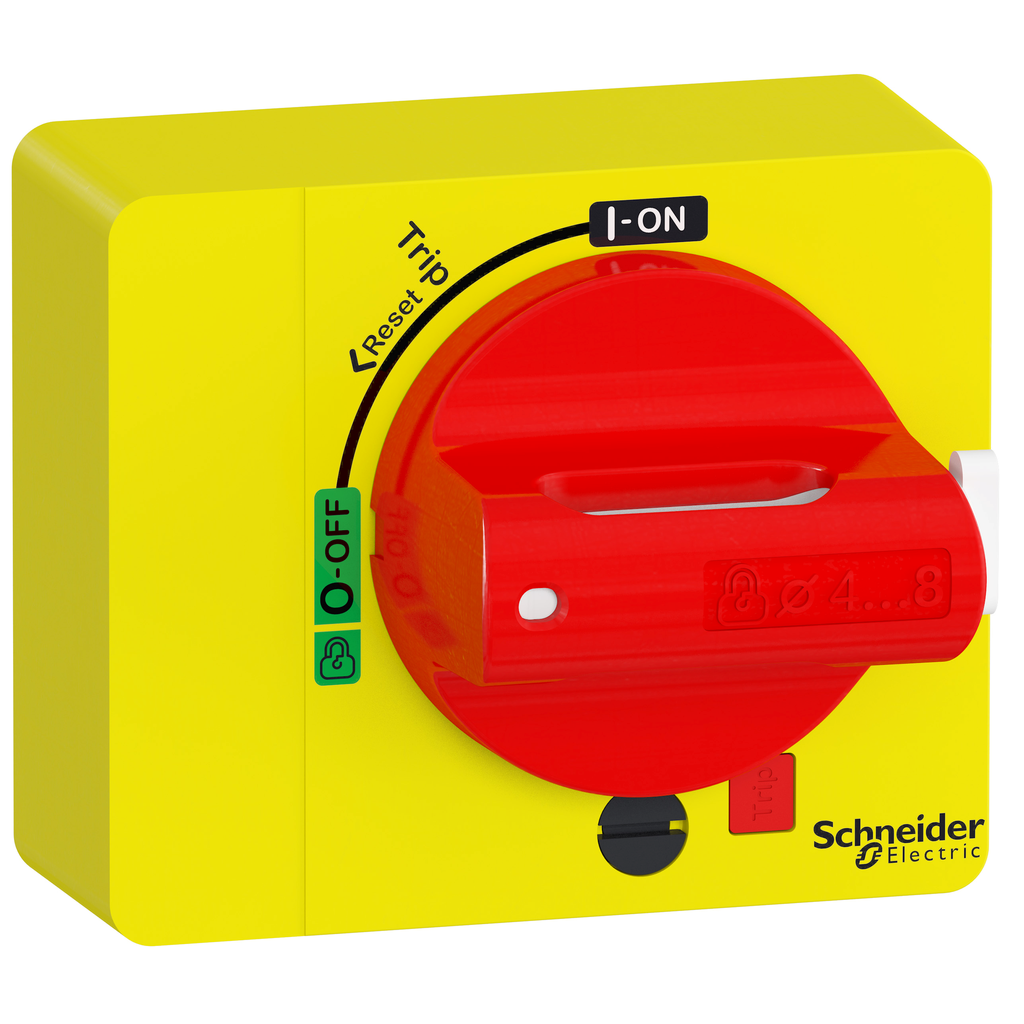

GV4ADN02
Rotary handle, TeSys GV4, direct, fixed, red, IP54
TeSys GV direct rotary handle, for motor circuit breakers GV4PE, LE, PEM, PB. For emergency switch usage, it provides a red handle on a yellow bezel with indication of 3 positions OFF, ON, TRIP. Equipped with a "push to trip" button. Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rotary Handle Mounting Style | direct |
|---|---|
| Handle Front Plate Colour | yellow |
| Accessory / Separate Part Category | control accessory |
| Handle Colour | red |
| Product Or Component Type | rotary handle |
| Marking | OFF - Trip - ON |
| Range | TeSys |
| Rotary Handle Padlocking |
|
| Locking Options Description | 1 to 3 padlocks Ø 4 to Ø 8 |
| Range Compatibility |
|
| Mounting Location | front side |
| Mounting Mode | fixed |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1905002EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1905002EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ip Degree Of Protection | IP40 |
