GV4ADM1111

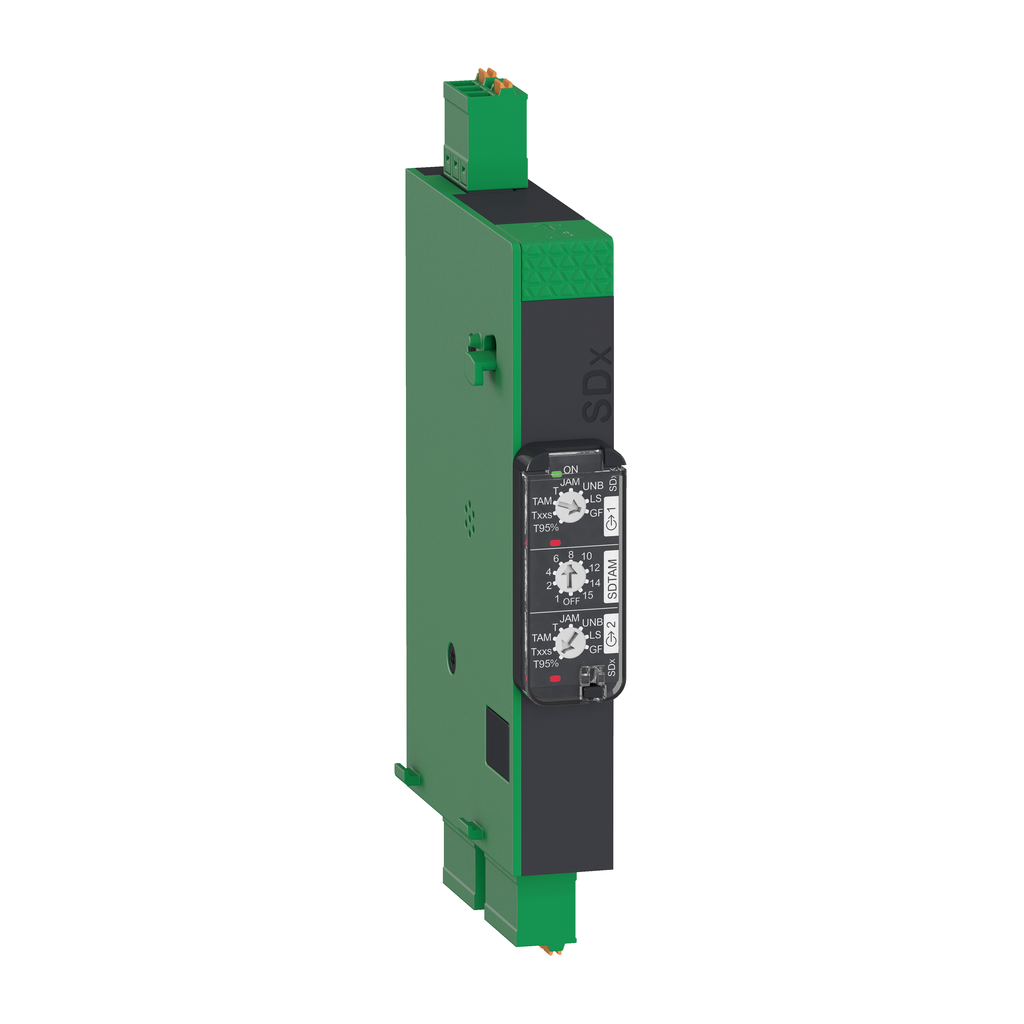

Motor circuit breaker, TeSys Deca, 2 normally open and 2 normally closed contacts, SDx contact module, GV4PEM
TeSys GV4 auxiliary contact block, for multifunction motor circuit breakers GV4PEM, GV4PB. 2NO/NC fault signalling contacts, each NO/NC can perform one of 8 SD alarm or fault status (overload alarms, overload trip, jam, phase unbalance, long start, ground fault). The function of each NO/NC is selectable by a dial, a third dial is available to select the cooling time before automatic restart. Rated for operation up to 5A/250V AC and DC. To be installed on right-hand side of the circuit breaker (2 blocks mounting possible), connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility | TeSys (TeSys GV4) multifunction circuit breaker |
|---|---|
| Product Or Component Type | auxiliary contact block |
| Range | TeSys |
| Mounting Location | right side |
| Pole Contact Composition | 2 NO + 2 NC |
| Mounting Mode | clipped |
| Device Application | signalling |
| Device Short Name | GV4A |
| Minimum Switching Current | 2 mA |
| [Ith] Conventional Free Air Thermal Current | 5 A |
| [Ue] Rated Operational Voltage |
|
| Associated Fuse Rating | 5 A gG IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 250 V IEC 60947-1 |
| Minimum Switching Voltage | 17 V |
| Rated Operational Power In Va | 400 VA 230-240 V AC-12 |
| Mechanical Durability | 100000 cycles |
| Rated Operational Power In W | 50 W 24 V DC-12 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Environmental Characteristic | normal environment |
