TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary knob, 12…18 A, EverLink BTR connectors

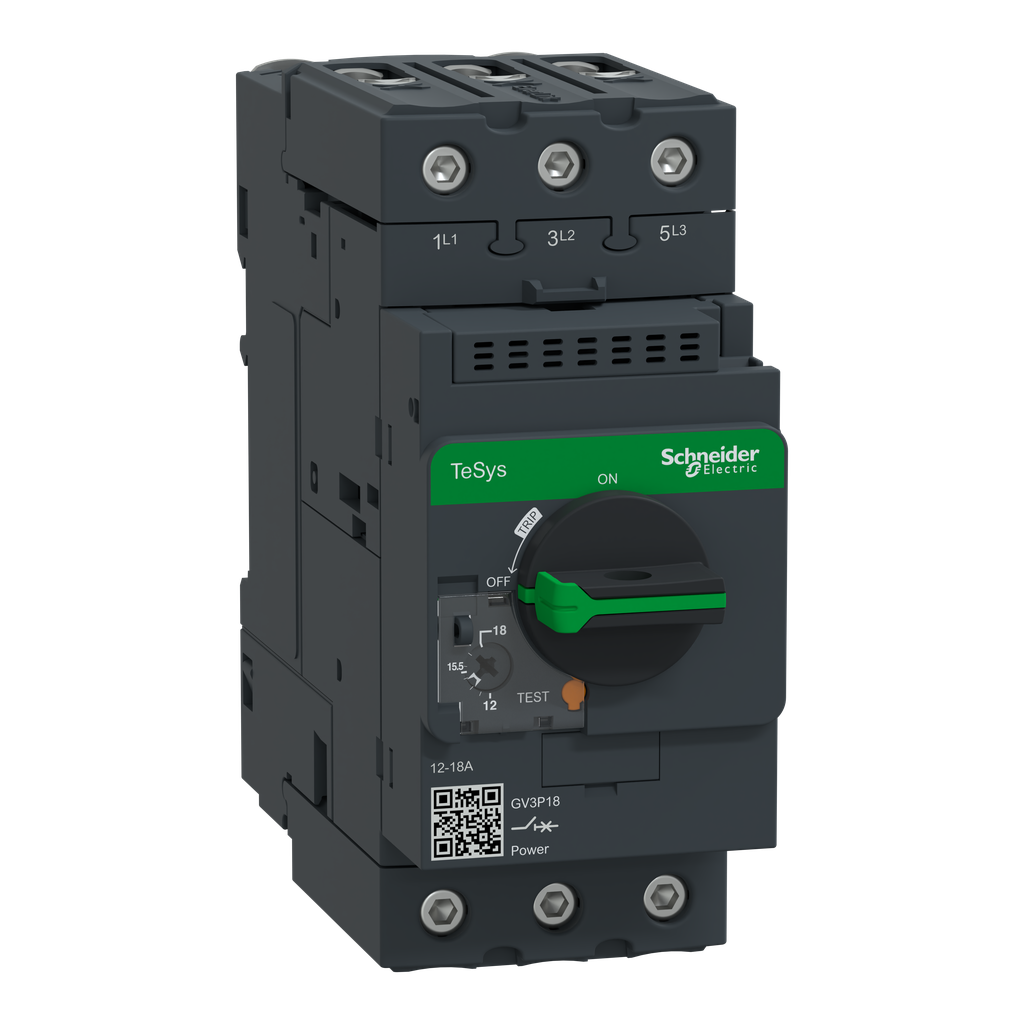

GV3P18 is a TeSys GV motor circuit breaker from Schneider Electric. It ensures thermal-magnetic protection for motors 7.5kW@400V and high breaking capacity Icu 100kA. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. GV3P18 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 7.5kW@400V. It fulfills a thermal-magnetic protection with a thermal setting range 12-18A, magnetic tripping at 14xIn and high breaking capacity Icu 100kA@400V. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3 415V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Complete motor protection in a single device , short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution. Compact, 55mm wide, for DIN-rail and panel mounting. Manual control with rotary knob for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (GVAE, GVAN, GVAD) for status and tripping signaling. For large industrial or building LV distribution networks thanks to a high 100kA breaking capacity. Power connections with EverLink BTR screw connectors providing constant tightening pressure. Can be associated with undervoltage or shunt tripping units (GVAU, GVAS) and power distribution busbars (GV3G).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | motor circuit breaker |
|---|---|
| Product Name |
|
| Range | TeSys Deca |
| Device Application | motor protection |
| Device Short Name | GV3P |
| Trip Unit Technology | thermal-magnetic |
| Warranty | 18 months |
| Line Rated Current | 18 A |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Height | 132 mm |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| Rated Duty | continuous IEC 60947-4-1 |
| Network Type | AC |
| Magnetic Tripping Current | 252-252 A |
| [Ith] Conventional Free Air Thermal Current | 18 A IEC 60947-4-1 |
| Motor Power Kw |
|
| Utilisation Category | AC-3 IEC 60947-4-1 |
| Net Weight | 0.96 kg |
| Fixing Mode |
|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| [Ics] Rated Service Short-Circuit Breaking Capacity |
|
| Control Type | rotary handle |
| Power Dissipation Per Pole | 8 W |
| Electrical Durability | 50000 cycles AC-3 415 V In |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Breaking Capacity |
|
| Suitability For Isolation | yes IEC 60947-1 |
| Thermal Protection Adjustment Range | 12-18 A IEC 60947-4-1 |
| Tightening Torque | 5 N.m screw clamp terminal |
| Mechanical Durability | 50000 cycles |
| Poles Description | 3P |
| Color | dark grey |
| Width | 55 mm |
| Depth | 136 mm |
| Network Frequency | 50/60 Hz IEC 60947-4-1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP060901 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI060901 |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ik Degree Of Protection | IK09 enclosure |
| Mechanical Robustness |
|
| Ambient Air Temperature For Operation | -20-60 °C |
| Standards |
|
| Climatic Withstand | IACS E10 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Operating Altitude | 9842.52 ft (3000 m) |
| Fire Resistance | 960 °C IEC 60695-2-11 |
