GV3G264

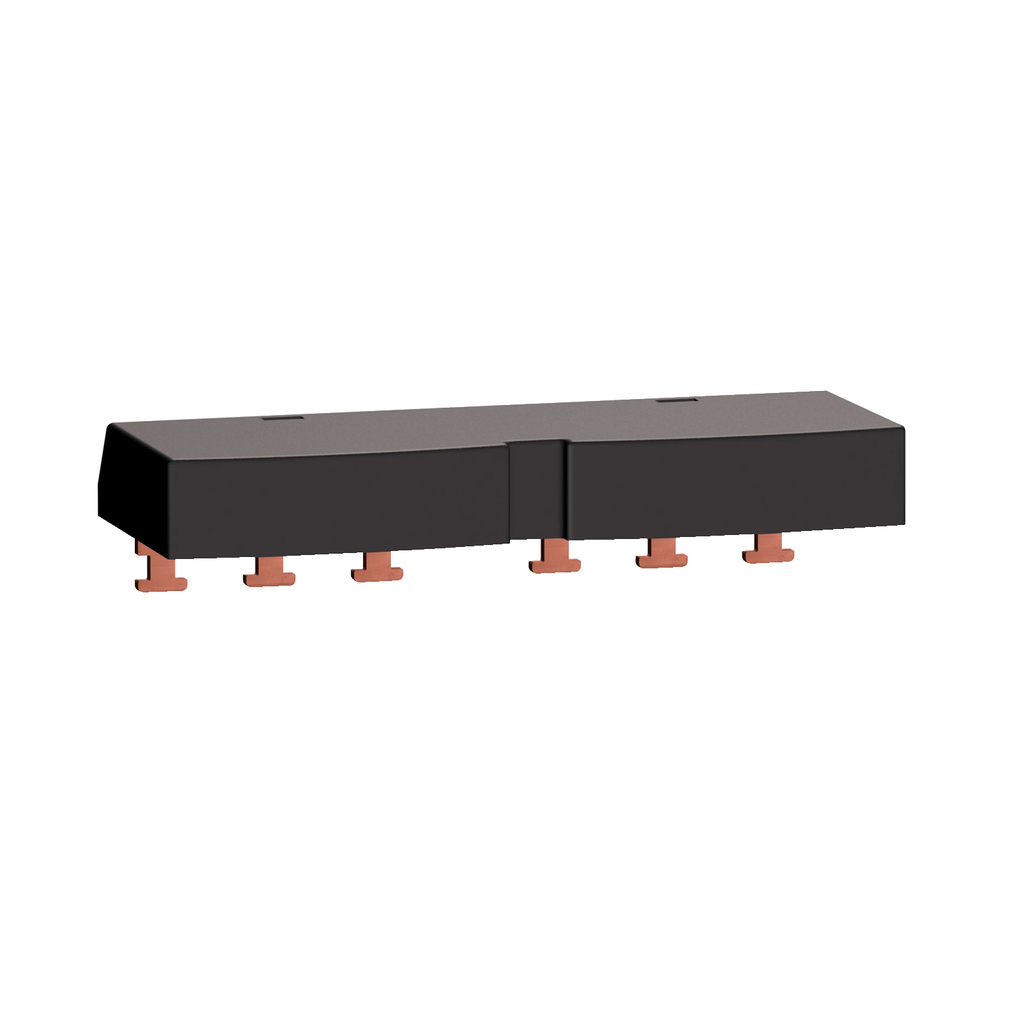

Linergy FT, Comb busbar for parallelling 2 contactors
TeSys GV busbar set, 3 phases, 115A/690V, for the upstream parallel wiring of groups of motor starters composed of GV3 motor circuit breakers. For use with Everlink BTR screw terminals devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 64mm. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Connection Pitch | 64 mm |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | comb busbar |
| [Ith] Conventional Free Air Thermal Current | 115 A |
| Product Name | FT |
| Range | Linergy |
| Poles Description | 3P |
| Number Of Tap-Offs | 2 |
| Range Compatibility |
|
| Product Compatibility |
|
| Device Short Name | GV3G |
| Warranty | 18 months |
| [Ui] Rated Insulation Voltage | 690 V |
| Net Weight | 0.15 kg |
| Mounting Location | on terminal |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
