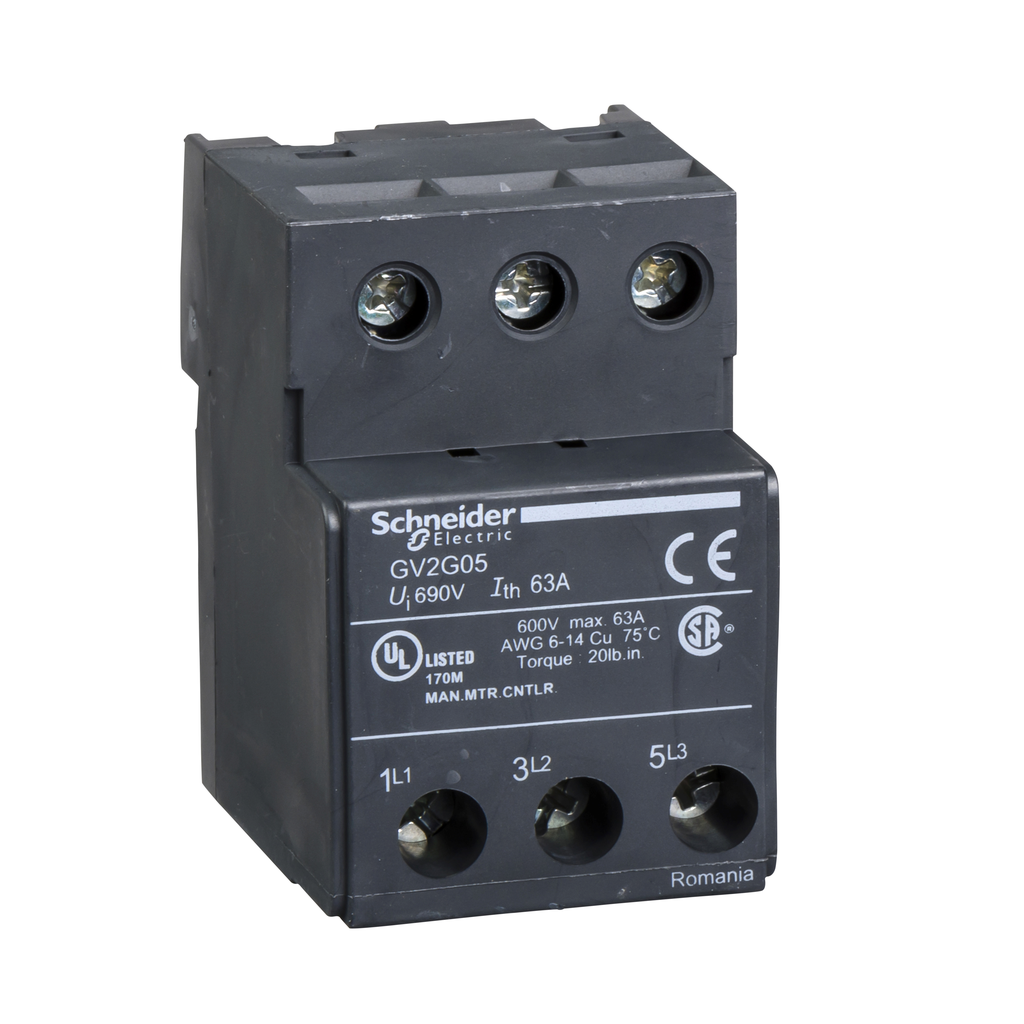

GV2G05 - Terminal block,TeSys Deca & TeSys U, for GV1L3 3P

GV2G05

Terminal block,TeSys Deca & TeSys U, for GV1L3 3P

TeSys GV terminal block, 3 phases, 63A/690V, to supply busbar sets GV2G. To be mounted next to the devices connected by the busbar sets, on the same DIN rail, and connected by one of the busbar outlets. It can be fitted with a current limiter GV1L3 for all parallel motor starters (to be ordered separately). Connection to the supply cable by screw connectors. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Accessory / Separate Part Category	connection accessory
Product Or Component Type	terminal block
Product Name	FT
Range	Linergy
Poles Description	3P
Range Compatibility	TeSys GV2 TeSys Deca TeSys K TeSys U
Device Short Name	GV2G
Warranty	18 months
Connections - Terminals	screw clamp terminals 1 solid AWG 4 screw clamp terminals 1 1.5-16 mm² flexible with cable end screw clamp terminals 1 1.5-16 mm² flexible without cable end screw clamp terminals 1 1.5-25 mm² solid screw clamp terminals 2 1.5-4 mm² flexible with cable end screw clamp terminals 2 1.5-6 mm² solid screw clamp terminals 2 2.5-4 mm² flexible without cable end screw clamp terminals 1 flexible AWG 4
Net Weight	0.115 kg
Mounting Location	35 mm DIN rail
Ip Degree Of Protection	IP20 conforming to IEC 60529
[Ui] Rated Insulation Voltage	690 V IEC 60947-1
[Ie] Rated Operational Current	63 A
Tightening Torque	1.7-1.7 N.m screw clamp terminals 2.2-2.2 N.m connector
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2207006
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Circularity Profile	ENVEOLI2207006
Eu Rohs Directive	Compliant
