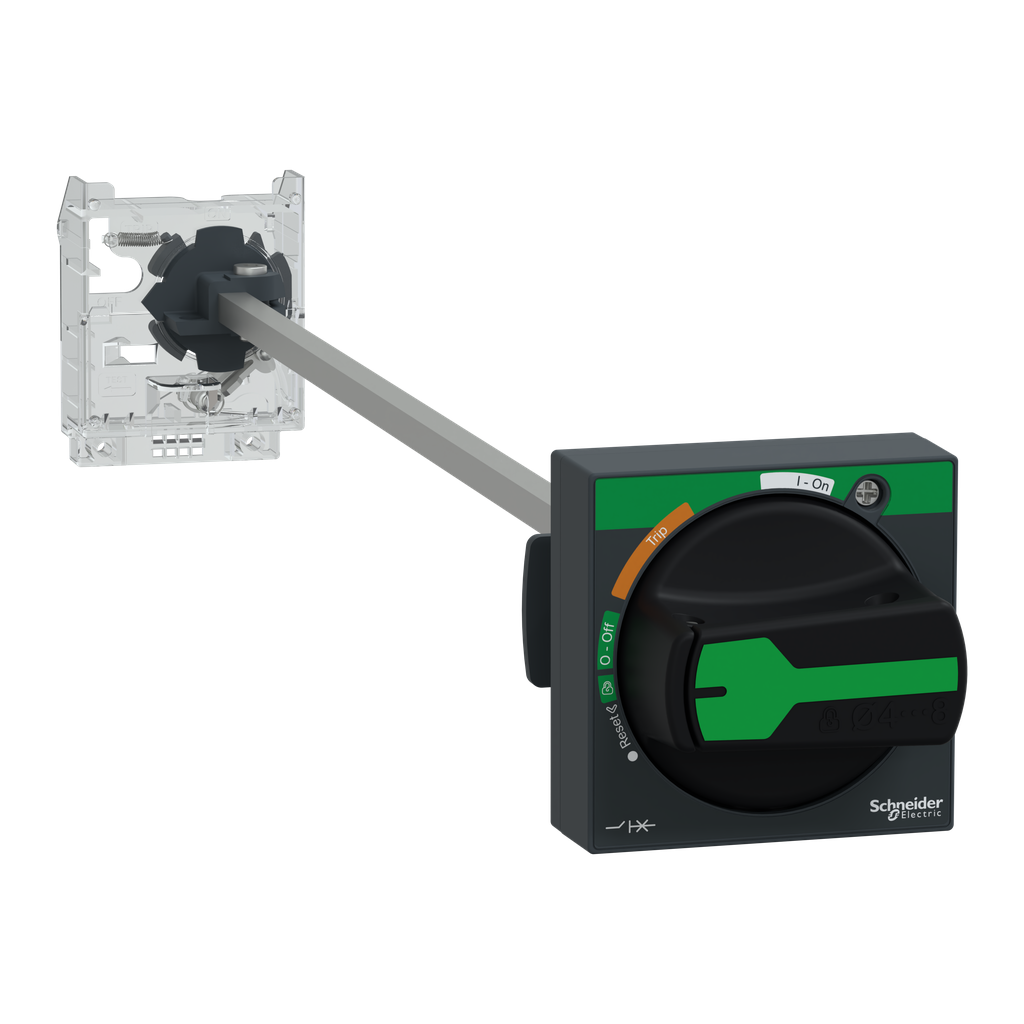

Extended rotary handle kit, TeSys Deca, IP54, black handle, with trip indication, for GV2L-GV2P
TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Handle Front Plate Colour | grey |
|---|---|
| Accessory / Separate Part Category | control accessory |
| Handle Colour | black |
| Product Or Component Type | rotary handle kit |
| Range |
|
| Device Short Name | GV2AP |
| Warranty | 18 months |
| Rotary Handle Mounting Style | extended |
| Back/Door Distance | 140-250 mm |
| Locking Options Description | 1 to 3 padlocks |
| Net Weight | 0.2 kg |
| Rotary Handle Padlocking |
|
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP54 |
Documents
- Spec Sheet
- TeSys Deca Motor Protection Frame 4 - Extended Rotary Handle - Instruction Sheet - GEX2480707-00 (pdf)
- GV2APN01_instruction_sheet - AAV96284 (pdf)
- GV2APN - External operator for TeSys GV2P/L - Instruction Sheet - AAV9628402-07 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
