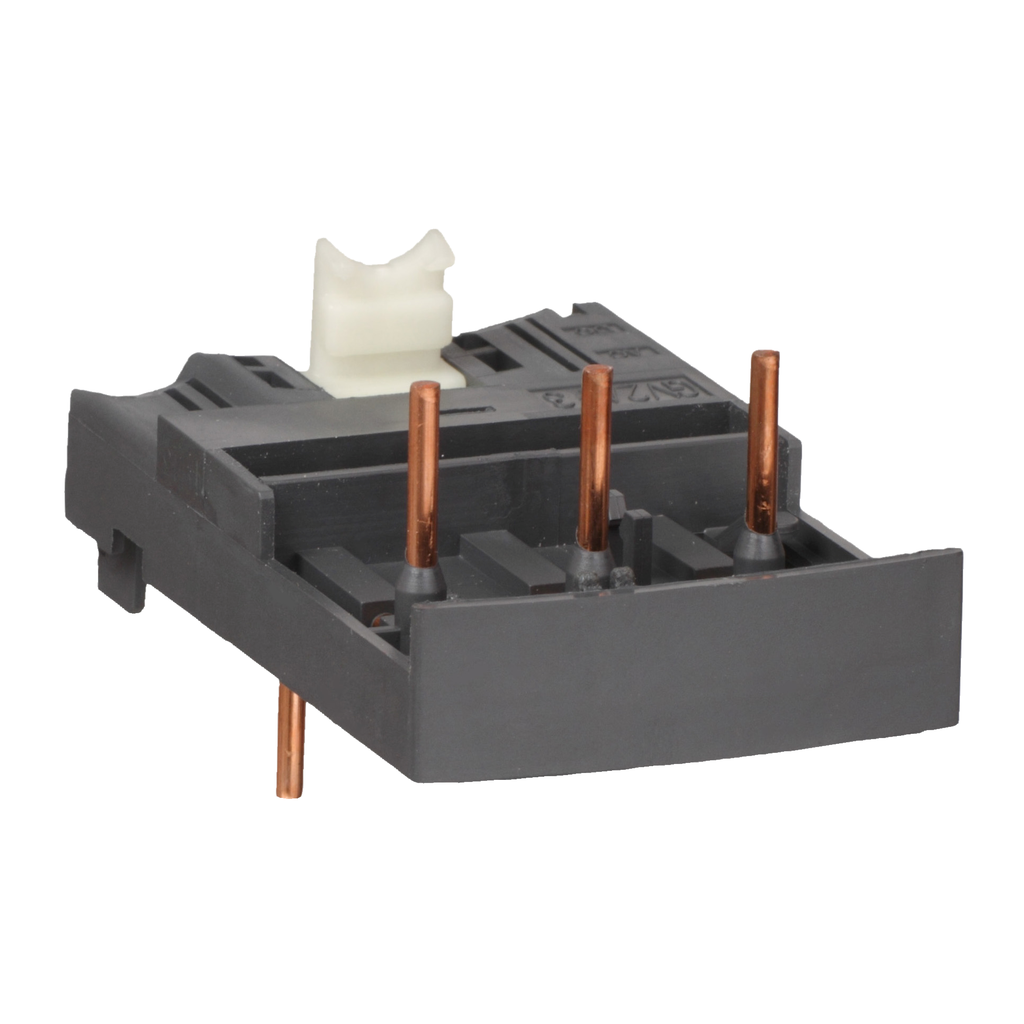

GV2AF3
TeSys GV2, interconnection block, to connect GV2 and LC1D09 to D38 contactor
TeSys GV accessory, combination block for motor starter assembly. For the connection between a motor circuit breaker GV2 or a fuse carrier LS1D32 and contactor LC1D09-D38. To be used when the assembly is mounted directly on DIN rails. Sold in lots of 10 units. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | connection accessory |
|---|---|
| Product Or Component Type | combination block |
| Product Name | FT |
| Range | Linergy |
| Range Compatibility |
|
| Device Short Name | GV2AF |
| Warranty | 18 months |
| Net Weight | 0.016 kg |
| [Ie] Rated Operational Current | 32 A |
| Poles Description | 3P |
| Quantity Per Set | set of 10 |
| Product Compatibility | LC1D09...D38 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
