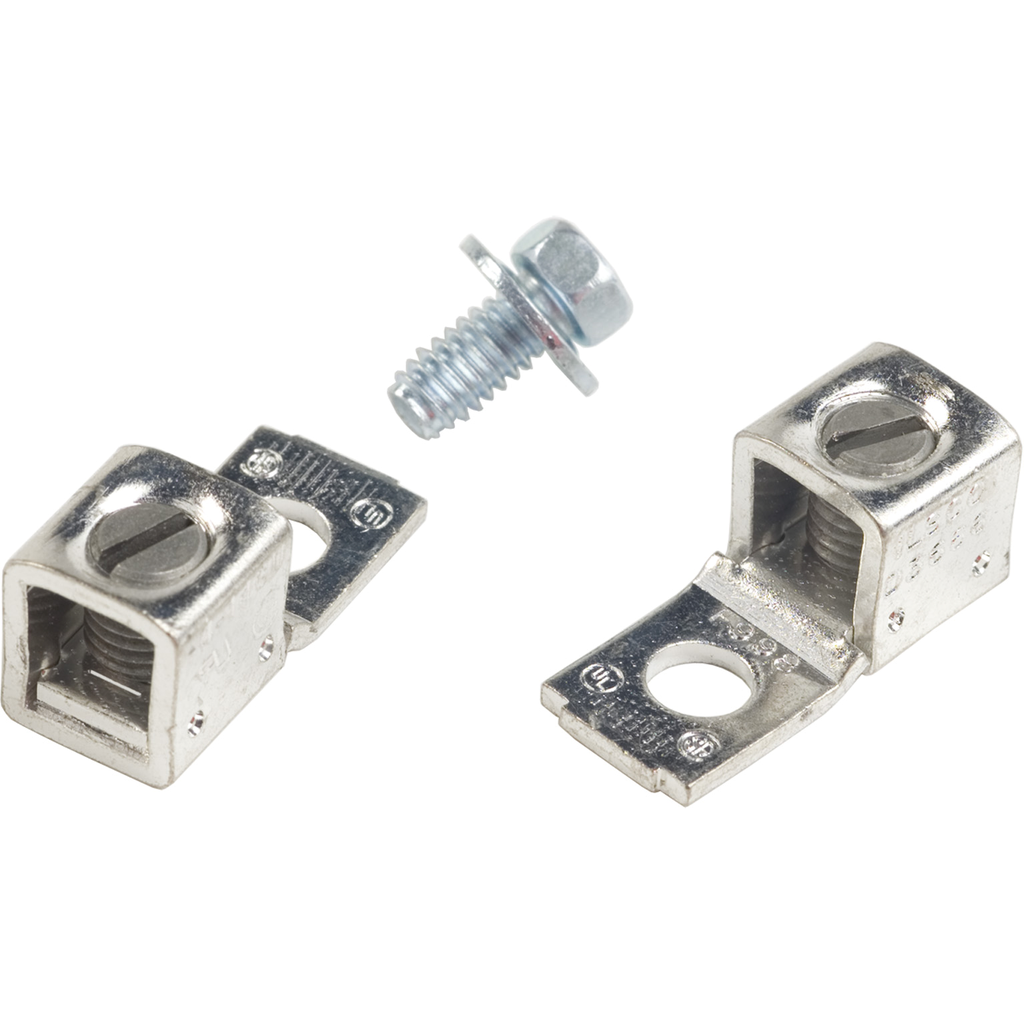

GTK03C - Grounding kit, Heavy Duty safety switch, 30A, Series F1-F3/F5-F7/F2-F7, copper

GTK03C

Add to Quote Catalogue

Series Name	heavy duty
Range Of Product	Square D
Product Or Component Type	safety switch grounding bar
Warranty	18 months
Tightening Torque	20-20 lbf.in (AWG 14...AWG 10) 20-20 lbf.in (AWG 12...AWG 10) 25-25 lbf.in (AWG 8) 35-35 lbf.in (AWG 6...AWG 4) 25-25 lbf.in (2 x AWG 14...2 x AWG 10) 25-25 lbf.in (2 x AWG 10...2 x AWG 10)
Line Rated Current	30 A F1 30 A F5 30 A F7 60 A F1 60 A F3 60 A F5 60 A F7
Awg Gauge	AWG 6 copper
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1304031
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
