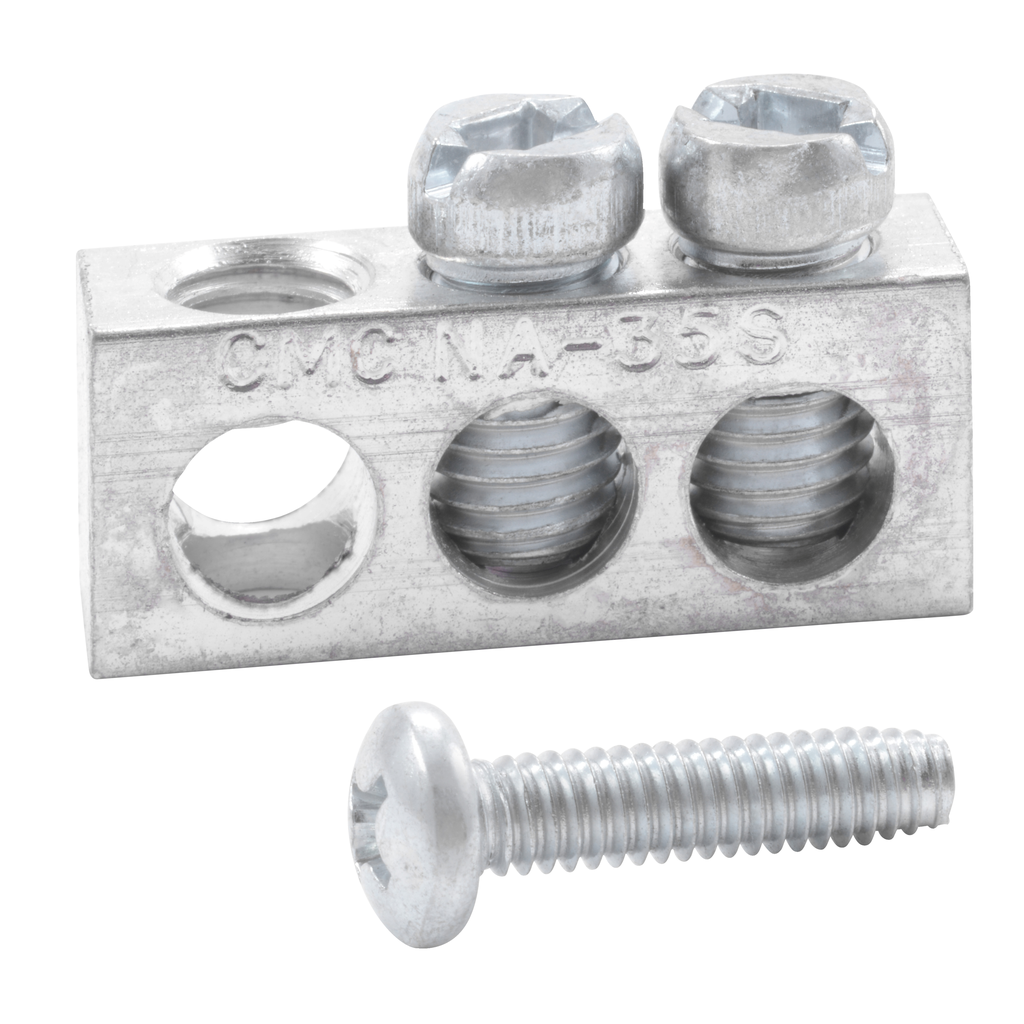

Safety switch accessory, heavy duty, equipment grounding kit, F5-F6 240V, 60A
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Square D heavy duty safety switch grounding bar comes in 30A and 60A. This grounding bar accepts AWG gauges of AWG 12 (CU), AWG 10 (AL), and AWG 4 (AL/CU). This product comes with an 18 month warranty. This heavy duty safety switch grounding bar by Square D has a rated current of 30A and 60A and is rated for an AWG gauge of AWG 12, copper
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Series Name | heavy duty |
|---|---|
| Range Of Product | Square D |
| Product Or Component Type | safety switch grounding bar |
| Warranty | 18 months |
| Height | .437 in |
| Tightening Torque |
|
| Line Rated Current |
|
| Awg Gauge |
|
| Width | 1.054 in |
| Depth | .312 in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
- Supplemental Digest 02: Safety Switches (MAY 2023) - SD_0100CT1902_SEC-02 (pdf)
- F Series Safety Switches—Neutral Assembly Replacement Instructions - files (pdf)
- GTK03 Grounding Bar Kit Installation Instructions - 40272-266-04 (pdf)
- 800A and 1200 A Heavy Duty Safety Switches Installation Instructions - 40271-959-02 (pdf)
