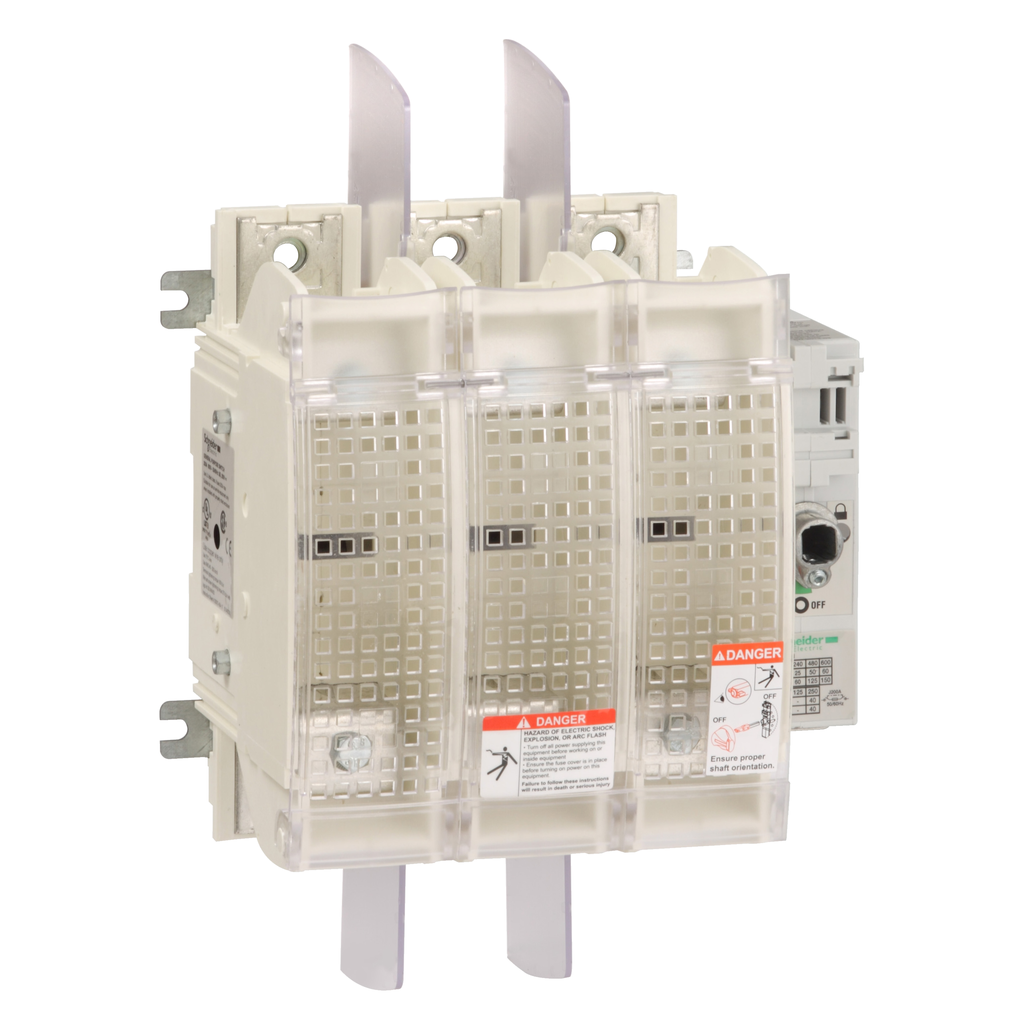

Switch disconnector fuse, TeSys GS, 3P, 200A, fuse type UL, size J
TeSys GS fuse switch-disconnector, 3 poles (3P), 200A/750V, to be used with class J fuse links up to 200A, for motor applications up to 100kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50/60 Hz |
|---|---|
| Fuse Size | J |
| [Ith] Conventional Free Air Thermal Current | 200 A 40 °C |
| Network Type |
|
| Protected Poles Description | 3t |
| Product Or Component Type | switch-disconnector-fuse |
| Product Name | TeSys GS |
| Range | TeSys |
| Contacts Type And Composition | 3 NO |
| [Ie] Rated Operational Current | 200 A |
| Fuse Type | UL |
| Poles Description | 3P |
| Device Application | protection |
| Device Short Name | GS2MU |
| Type Of Operating Handle | external frontal |
| Mounting Support | plate |
| Connections - Terminals | power circuit lugs-ring terminals 16-152 mm² |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Short-Circuit Withstand | 32 kA |
| [Ui] Rated Insulation Voltage | 750 V |
| [Icm] Rated Short-Circuit Making Capacity | 2 kA 400 V |
| Electrical Durability | 6000 cycles |
| Mechanical Durability | 10000 cycles |
| Tightening Torque | power circuit 8.5-8.5 N.m |
| Rated Operational Power In W |
|
| Breaking Capacity | 1600 A 400 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003007EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2003007EN |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -20-70 °C |
| Height | 195 mm |
| Standards |
|
| Ambient Air Temperature For Storage | -40-80 °C |
| Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
| Fire Resistance | 960 °C body |
| Width | 196.2 mm |
| Depth | 130 mm |
