GS2AH160

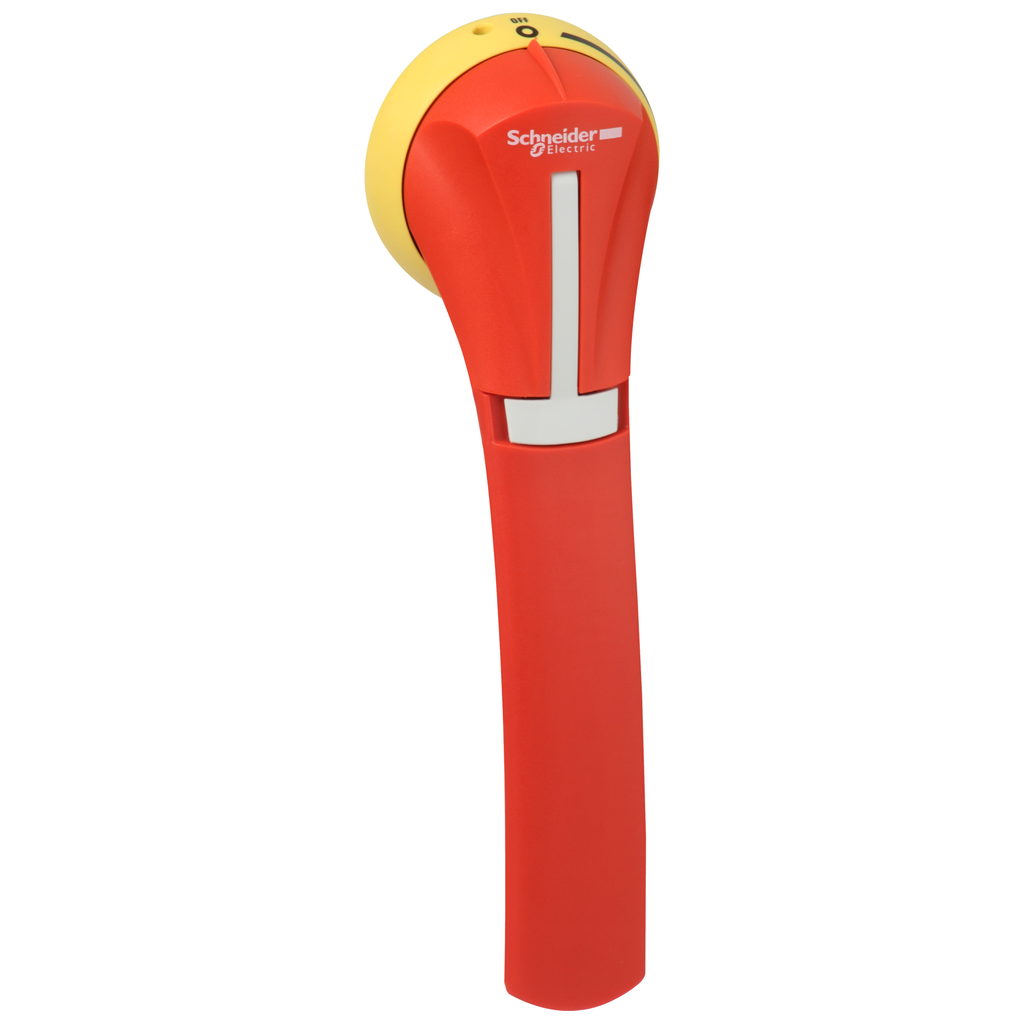

External rotary handle, TeSys GS, red handle, front mounting, 2 positions I-O, NEMA 3R, for GS 600 to 800A UL
TeSys GS external operating handle for 3-pole 600-800A UL fuse switch-disconnectors GS2SU, GS2TU. Red handle with yellow front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | TeSys |
|---|---|
| Type Of Operating Handle | external frontal |
| Range Compatibility |
|
| Handle Front Plate Colour | yellow |
| Handle Colour | red |
| Product Or Component Type | rotary handle |
| Device Short Name | GS2AH |
| Range | TeSys |
| Warranty | 18 months |
| Standards |
|
| Rotary Handle Padlocking | with |
| Line Rated Current |
|
| Marking | O-I |
| Net Weight | 0.28 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Nema Degree Of Protection | NEMA 4/4X |
