GS2AH110

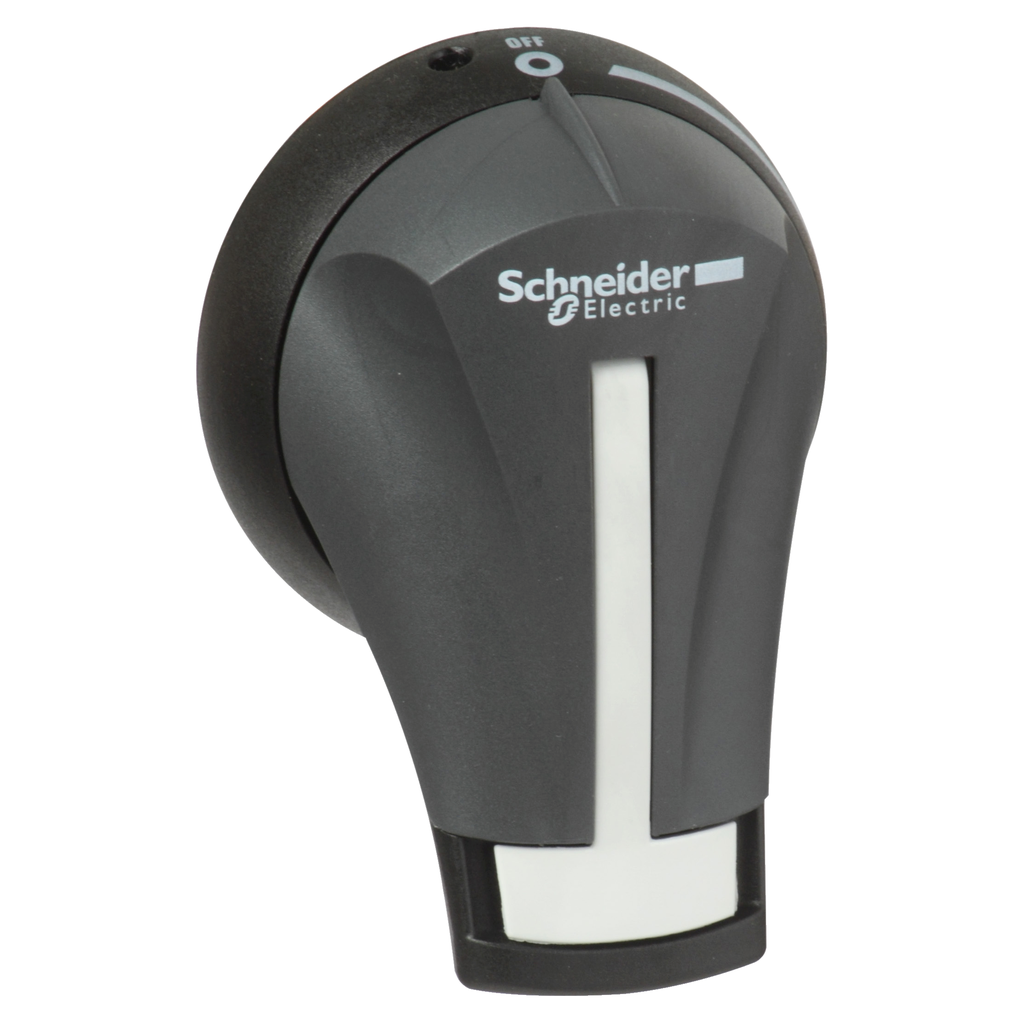

External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 3R, for GS 30A Compact UL
TeSys GS external operating handle for 3-pole 30A UL fuse switch-disconnectors GS1DDU, GS1DU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | TeSys |
|---|---|
| Type Of Operating Handle | external frontal |
| Range Compatibility | TeSys (TeSys GS) GS1D |
| Handle Front Plate Colour | grey |
| Handle Colour | black |
| Product Or Component Type | rotary handle |
| Range | TeSys |
| Device Short Name | GS2AH |
| Warranty | 18 months |
| Standards |
|
| Marking | O-I |
| Net Weight | 0.2 kg |
| Rotary Handle Padlocking | with |
| Line Rated Current | 30 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 3R/12 |
Documents
- Spec Sheet
- Manual Motor Control Switches and Disconnects Catalog - 9421CT0301 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches (FEB 2021) - 0100CT1901_SEC-08_FEB-2021 (pdf)
- GS2AEH12, GS2AH(nn), LK4AH(nn)CN Instruction Bulletin - NHA14961_01 (pdf)
- TeSys GS - GS2AEoo / GS2AHoo - Shafts and handles for external front operator for GS2 UL 30 CC/J … 100 J - Instruction Sheet - 534361E (pdf)
- 30 A GS1DDU3, GS1DU3 Instruction Bulletin - 30072-454-15_01 (pdf)
- 30–60 A GS2AH110, GS2AH120, GS2AH410, GS2AH420, GS2AE8, GS2AE81 , GS2AE2, GS2AE21, GS2AE23 Disconnect Switch Component Instruction Bulletin - 30072-454-21_02 (pdf)
