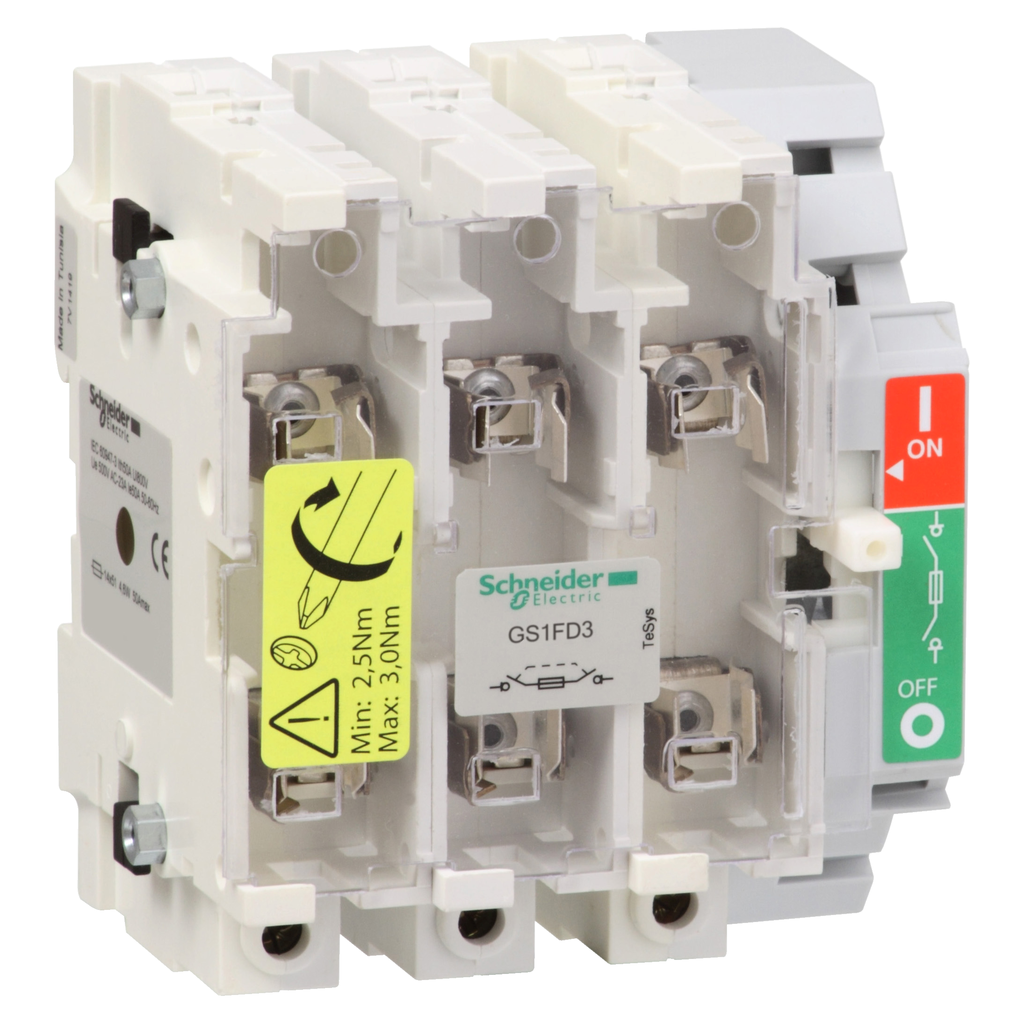

TeSys GS fuse switch-disconnector, 3 poles (3P), 50A/750V, to be used with NFC cylindrical fuse links size 14x51mm up to 50A, for motor applications up to 25kW@400V AC-23. To be equipped with a direct operating handle GS1AH01 (to be ordered separately), for using an external operating handle select a fuse switch-disconnector type GS2F. It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG 14x51mm cylindrical fuse links without strickers DF2EA, DF2EN and with strickers DF3EA, DF3EN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueNetwork Frequency | 50/60 Hz |
---|---|
Fuse Size | 14 x 51 mm |
[Ith] Conventional Free Air Thermal Current | 50 A 40 °C |
Network Type |
|
Protected Poles Description | 3t |
Product Or Component Type | switch-disconnector-fuse |
Product Name | TeSys GS |
Range | TeSys |
Contacts Type And Composition | 3 NO |
[Ie] Rated Operational Current |
|
Fuse Type | NFC |
Poles Description | 3P |
Device Application | protection |
Device Short Name | GS1 F |
Warranty | 18 months |
Breaking Capacity | 4.6 W |
Type Of Operating Handle | direct right side |
Mounting Support | plate |
Connections - Terminals | power circuit lugs-ring terminals 6-25 mm² flexible |
[Uimp] Rated Impulse Withstand Voltage | 8 kV |
Making Capacity | 500 A 400 V AC-23B |
Short-Circuit Withstand | 7.6 kA |
[Ui] Rated Insulation Voltage | 750 V AC 50/60 Hz |
[Icm] Rated Short-Circuit Making Capacity | 100 kA 400 V with protection by gG fuses |
Electrical Durability |
|
Mechanical Durability | 10000 cycles |
Tightening Torque | power circuit 3.2-3.2 N.m lugs-ring terminals |
Rated Operational Power In W |
|
Breaking Capacity | 400 A 400 V AC-23B) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2003007EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2003007EN |
Eu Rohs Directive | Compliant |
Product Certifications | CE |
Ambient Air Temperature For Operation | -20-70 °C |
Height | 118 mm |
Standards | IEC 60947-3 |
Net Weight | 0.8 kg |
Ambient Air Temperature For Storage | -40-80 °C |
Protective Treatment | TH |
Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
Fire Resistance |
|
Width | 118 mm |
Depth | 87 mm |
