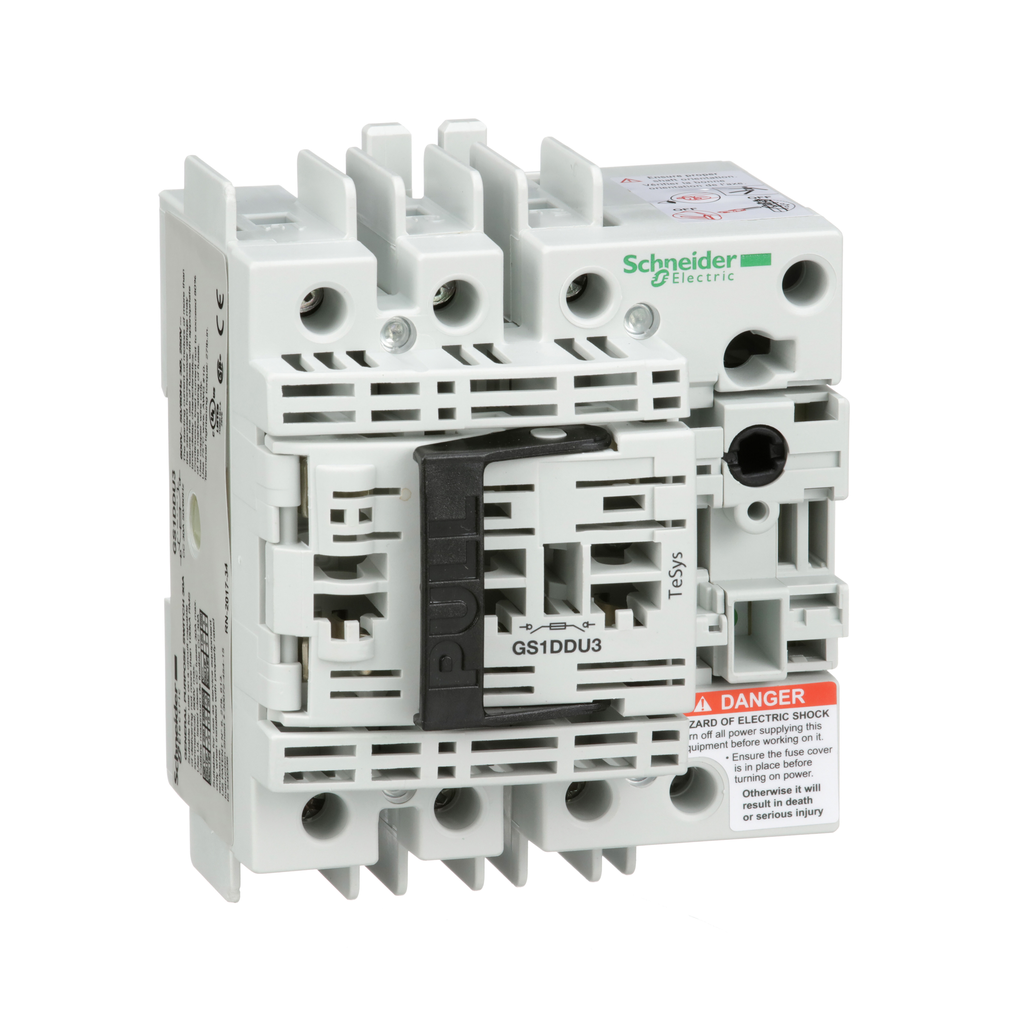

GS1DDU3
TeSys GS, disconnect switch, fuse, 3 P, 600 V, UL 30 A, Type CC fuse
TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class CC fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50/60 Hz |
|---|---|
| Fuse Size | CC |
| [Ith] Conventional Free Air Thermal Current | 30 A 40 °C |
| Network Type |
|
| Protected Poles Description | 3t |
| Product Or Component Type | switch-disconnector-fuse |
| Product Name | TeSys GS |
| Design | compact |
| Range | TeSys |
| Contacts Type And Composition | 3 NO |
| [Ie] Rated Operational Current | 30 A |
| Fuse Type | UL |
| Poles Description | 3P |
| Device Application | protection |
| Device Short Name | GS1 DD |
| Warranty | 18 months |
| Type Of Operating Handle |
|
| Mounting Support |
|
| Connections - Terminals | power circuit lugs-ring terminals 2-6 mm² |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Short-Circuit Withstand | 5.5 kA |
| [Ui] Rated Insulation Voltage | 690 V |
| Electrical Durability | 6000 cycles |
| Mechanical Durability | 10000 cycles |
| Tightening Torque | power circuit 3-3 N.m |
| Rated Operational Power In W |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003007EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2003007EN |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-70 °C |
| Height | 116 mm |
| Standards |
|
| Net Weight | 0.6 kg |
| Ambient Air Temperature For Storage | -40-80 °C |
| Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
| Fire Resistance | 960 °C body IEC 60695-2-1 |
| Width | 97 mm |
| Depth | 83.5 mm |
