GS1AN11 – Auxiliary contacts, TeSys GS, 1NC 1NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle
GS1AN11

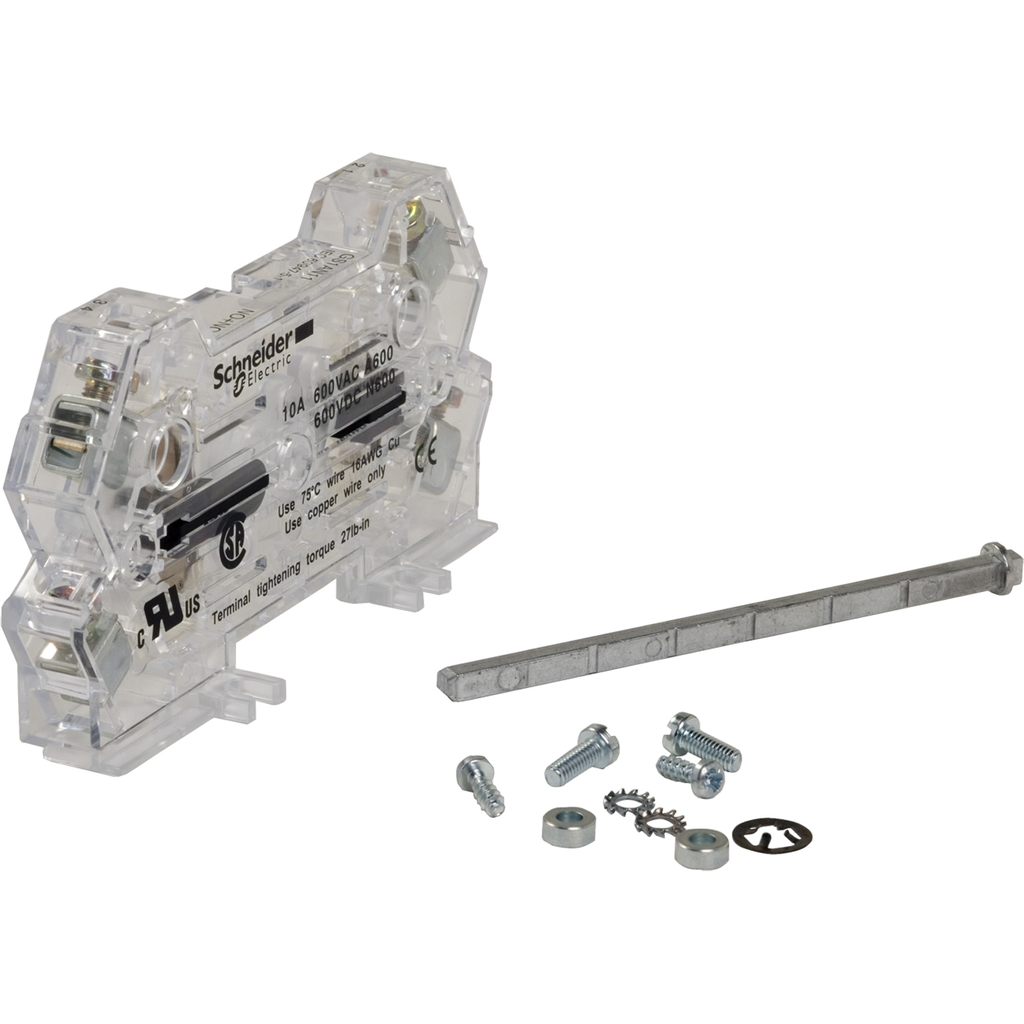

Auxiliary contacts, TeSys GS, 1NC+1NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle

TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 1NC+1NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position signaling. Right-hand side mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product TeSys
[Ith] Conventional Free Air Thermal Current 20 A 40 °C
Product Or Component Type auxiliary contact
Contact Application O and I position signalling
Contacts Type And Composition 1 NC + 1 NO
[Ie] Rated Operational Current
  • 1 A 220 V DC-13
  • 10 A 230 V AC-15
  • 12 A 127 V AC-15
  • 4 A 48 V DC-13
  • 6 A 440 V AC-15
  • 8 A 400/415 V AC-15
  • 1.2 A 110 V DC-13
Contact Operation instantaneous
Device Short Name GS1AN
Warranty 18 months
Type Of Operating Handle
  • direct frontal
  • direct right side
  • external right side
  • external frontal
Range Compatibility TeSys (TeSys GS) switch-disconnector-fuse
Net Weight 0.132 kg
Electrical Durability 30000 cycles AC-15
Fuse Type
  • NFC
  • DIN
  • BS
Mechanical Durability 30000 cycles
Line Rated Current
  • 1250 A
  • 160 A
  • 400 A
  • 50 A
  • 63 A
  • 800 A
  • 250 A
  • 315 A
  • 600 A
  • 125 A
  • 100 A
  • 60 A
  • 200 A
  • 630 A
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2003007EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Circularity Profile ENVEOLI2003007EN
Eu Rohs Directive Compliant
