GPEFC11 - Auxiliary contact block,Easy TeSys GP2E,1NO 1NC

GPEFC11

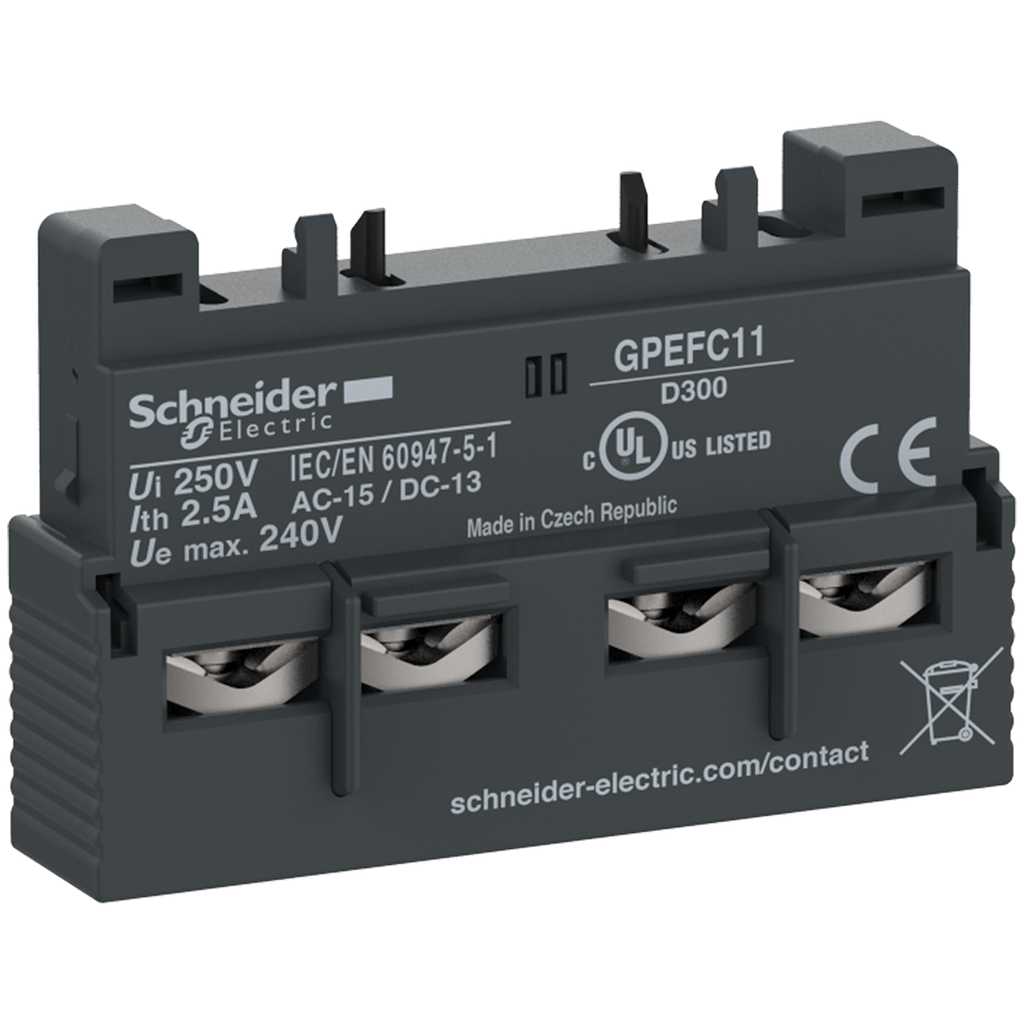

Auxiliary contact block,Easy TeSys GP2E,1NO+1NC

Easy TeSys GP2E auxiliary contact. 1NO+1NC instantaneous auxiliary contacts. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (CSA, UL), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Or Component Type	auxiliary contact block
Connections - Terminals	screw clamp terminals1 1-2.5 mm² - solid screw clamp terminals2 1-2.5 mm² - solid screw clamp terminals1 0.75-2.5 mm² - flexible without cable end screw clamp terminals2 0.75-2.5 mm² - flexible without cable end screw clamp terminals1 0.75-1.5 mm² - flexible with cable end
Range	Easy TeSys
Mounting Location	front side
Pole Contact Composition	1 NO + 1 NC
Quantity Per Set	set of 10
Device Short Name	GPEFC
Minimum Switching Current	5 mA
Height	11 mm
[Ith] Conventional Free Air Thermal Current	2.5 A
[Ue] Rated Operational Voltage	24...240 V AC 24...60 V DC
Protection Type	gG fuse 10 A GB2CB06 circuit breaker 10 A
Net Weight	0.02 kg
[Ui] Rated Insulation Voltage	300 V UL 60947-4-1 300 V cUL 250 V IEC 60947-1
Minimum Switching Voltage	17 V
Tightening Torque	1.4 N.m screw clamp terminals
Rated Operational Power In Va	120 VA 110-120 V AC-15 100000 cycles 120 VA 230-240 V AC-15 100000 cycles 48 VA 24-24 V AC-15 100000 cycles 60 VA 48-48 V AC-15 100000 cycles
Mechanical Durability	100000 cycles
Width	45 mm
Depth	29 mm
Rated Operational Power In W	15 W 48 V DC-13 100000 cycles 24 W 24 V DC-13 100000 cycles 9 W 60 V DC-13 100000 cycles
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2207006
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI2207006
Eu Rohs Directive	Compliant
Environmental Characteristic	normal environment
