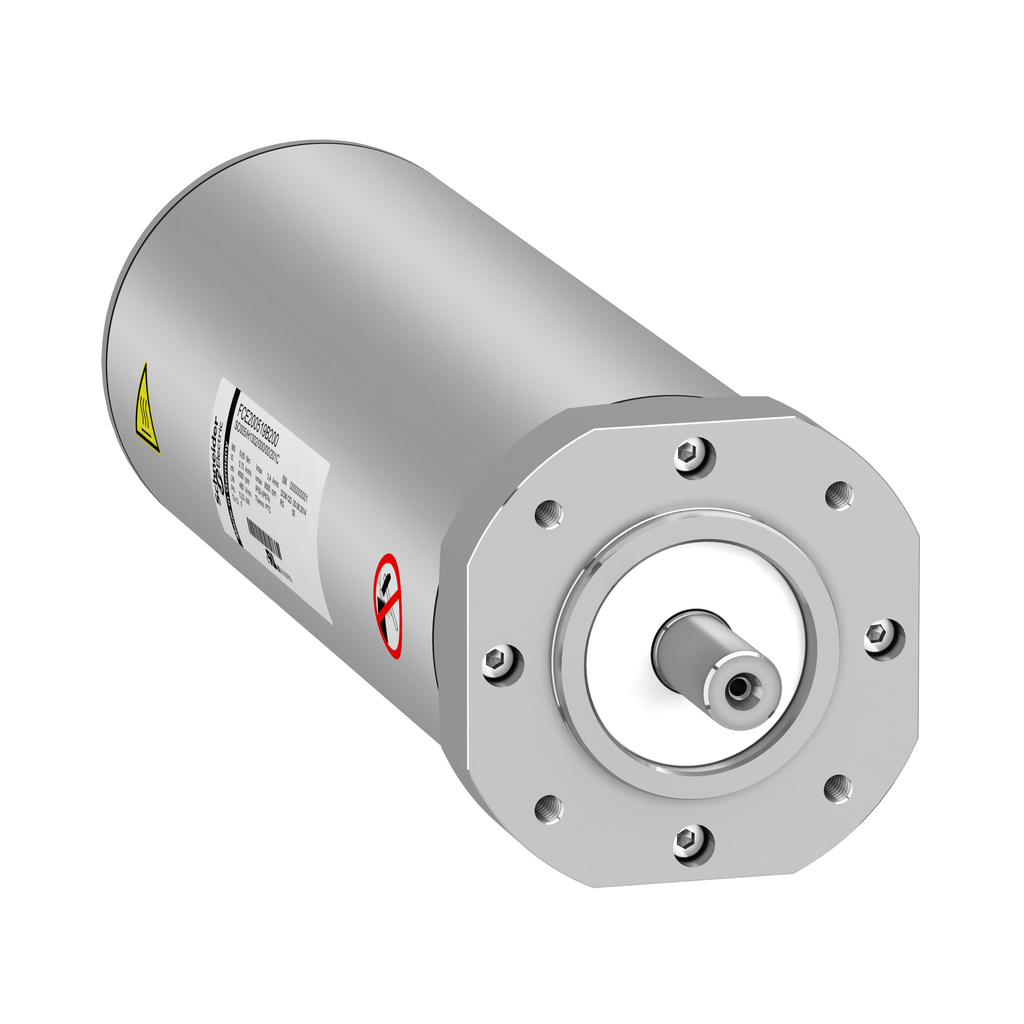

FCE200519B200
servo motor SHS 058 0,79Nm,no brake,4k RPM
Specifications
| Encoder Type | absolute multiturn SinCos Hiperface |
|---|---|
| Range Compatibility | PacDrive 3 |
| Product Or Component Type | servo motor |
| Device Short Name | SHS |
| Circle Diameter Of The Mounting Holes | 58 mm |
| Maximum Permanent Current | 0.8 A |
| Peak Stall Torque |
|
| Number Of Mounting Holes | 4 |
| Continuous Power | 840 W |
| Shaft Diameter | 11 mm |
| Key Width | 0 mm |
| Nominal Output Power |
|
| Maximum Mechanical Speed | 9000 rpm |
| Switching Frequency | 8 kHz |
| Mounting Holes Diameter | 5 mm |
| Type Of Cooling | natural convection |
| Holding Torque | 0.65 N.m |
| Maximum Radial Force Fr | 240 N 4000 rpm |
| Mounting Support | flange |
| Rotor Inertia | 0.13 kg.cm² |
| Number Of Motor Poles | 76 |
| Back Emf Constant | 1.15 V/krpm 20 °C |
| Maximum Axial Force Fa | 40 N |
| Shaft End | smooth shaft |
| Centring Collar Depth | 2 mm |
| Nominal Speed |
|
| Electrical Connection | cable with stripped end |
| Holding Brake | without |
| Speed Feedback Resolution | 128 periods |
| Stator Resistance | 37.1 Ohm |
| Continuous Stall Current | 0.8 A |
| Nominal Torque |
|
| Product Compatibility |
|
| Shaft Length | 20 mm |
| Phase | three phase |
| Length | 225.1 mm |
| Net Weight | 2.2 kg |
| Maximum Current Irms |
|
| Centring Collar Diameter | 40 mm |
| Continuous Stall Torque |
|
| Stator Inductance | 84.1 mH |
| Motor Flange Size | 58 mm |
| [Us] Rated Supply Voltage | 400 V |
| Ip Degree Of Protection |
|
