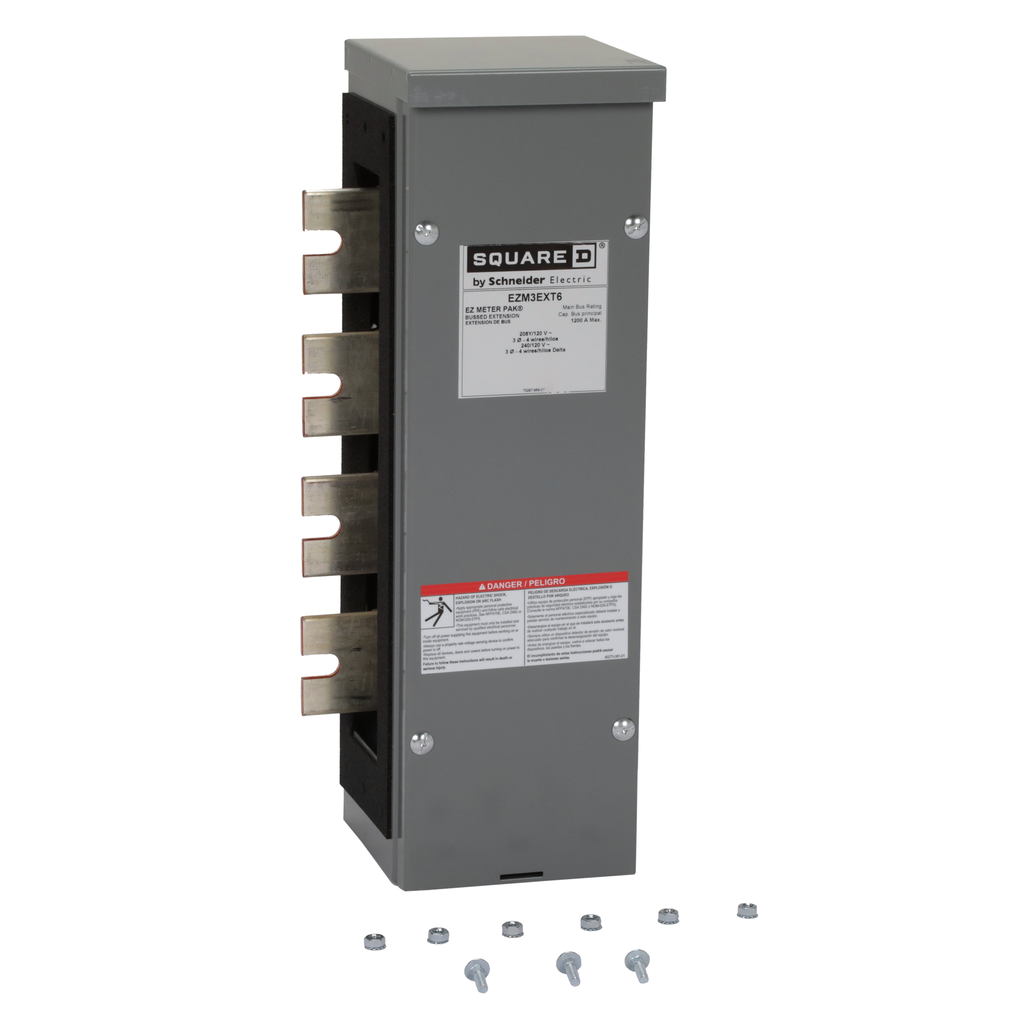

EZM3EXT6
Meter accessory, EZ Meter-Pak, bus extension, 1200A, indoor/outdoor, 3 phase, 4 wire, Cu, 6in
EZ Meter Pak devices are the industry choice for providing a better solution for multi unit construction needs. EZM main devices are available as main circuit breakers, as main fusible switches or as main lug terminal boxes. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. This EZ Meter Pak 6 inch bus extension section has a 1200 A bus. This bus extension section is for a three phase system. This extension section has a NEMA 1 surface mounting enclosure. The enclosure is 6.00 inches tall, 19.34 inches wide and 6.37 inches deep. The bus extension section is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | EZ meter-pak |
|---|---|
| Device Short Name | EZ |
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Height | 6.00 in |
| Device Mounting | surface |
| Bus Rated Current | 1200 A |
| Enclosure Material | steel |
| Width | 19.34 in |
| Depth | 6.37 in |
| Line Rated Current | 1200-1200 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Nema Degree Of Protection | NEMA 3R |
